BMD.3200.IR
10' Diamond Sliding Panel Saw
10HP 3 Phase
•
CNC Rip Fence
•
SPEED SELECTOR
High-performance sliding panel saw with CNC rip fence.
The Maksiwa BMD.3200.IR is a professional 10’ sliding panel saw designed for woodworkers who demand precision, efficiency, and advanced control.
Powered by a 10HP main motor 3 Phase and a 1HP scoring motor, it features a CNC-controlled rip fence, motorized blade height and tilt adjustment with digital angle readout, and three blade speeds for optimal cutting performance.
Built with a durable industrial-grade frame, the BMD.3200.IR ensures stability and long-term reliability, while its eye-level touchscreen control panel offers intuitive operation.
Integrated safety features and dual dust collection ports create a cleaner and safer workspace, making it ideal for cabinetmaking, furniture production, and custom woodworking.
$20,999
- 10HP 3 Phase
- 1HP scoring motor

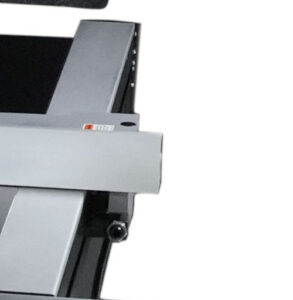

- CNC rip fence
- Motorized blade height & tilt
- Speed selector
- Eye-level touchscreen control panel
- Cuts up to 10' long sheets
- Compatible with 14" Blade

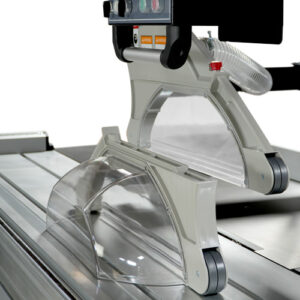

- Dual blade covers
- Integrated dust collection
- Digital angle display (90º to 45º)
- One set of blades included (Main 12" and Scoring)
- Heavy duty Grade Machine

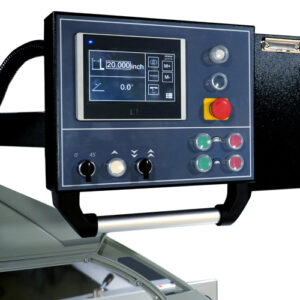

PRECISION AND CONTROL WITH EYE-LEVEL TOUCHSCREEN
WHY CHOOSE BMD.3200.IR?
VIDEO
INSTALLATION
2 YEAR
EXTENDED WARRANTY
US BASED
TECH SUPPORT
REAL REVIEWS. REAL RESULTS
BMD.3200.IR - MACHINE SPECIFICATIONS
| Technical Information | BMD.3200.IR |
|---|---|
| Electrical Specs | 3 Phase 220V 40 Amp 60 Hz |
| Main Motor | 10 HP 7.3 Kw |
| Main Blade Speed | 3,000/4,000/5,000 RPM |
| Max Blade Diameter | 14" | 355mm |
| Main Blade Arbor | 1-3/16" | 30mm |
| Main Blade Max Cutting Height at 90° | 4" | 101 mm |
| Main Blade Cutting Height at 45° | 2-3/4" | 70mm |
| Scoring Motor | 3/4 HP 8000 RPM .75 kw |
| Scoring Blade | 4-3/4" | 120mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51" | 1300mm |
| Crosscut Capacity | 126" | 3200 mm |
| Crosscut Fence Capacity Closed/Open | Closed: 78" | Open: 120" |
| Machine Dimension | 132" x 137" x 75" |
| Cast Iron Table Dimension | 35" x 21" x 34" |
| Sliding Table Dimension | 126" x 14" |
| Sliding Table Mechanism | Ball Bearings |
| Dust Collection Port (2) | 4" |
| Minimum Dust Collection Requirements | 1000 CFM |
| Weight | 1546 lbs |
| Warranty | 2 Years |
