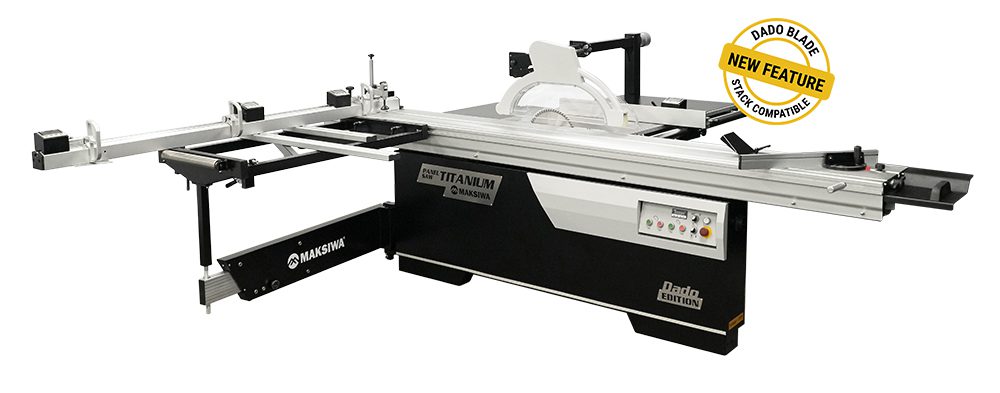

BMT.3200.IR
10' Titanium Sliding Panel Saw - dado edition
DIGITAL CROSSCUT & RIP FENCE READOUT
•
DADO BLADE COMPATIBLE
•
motorized blade height & tilt

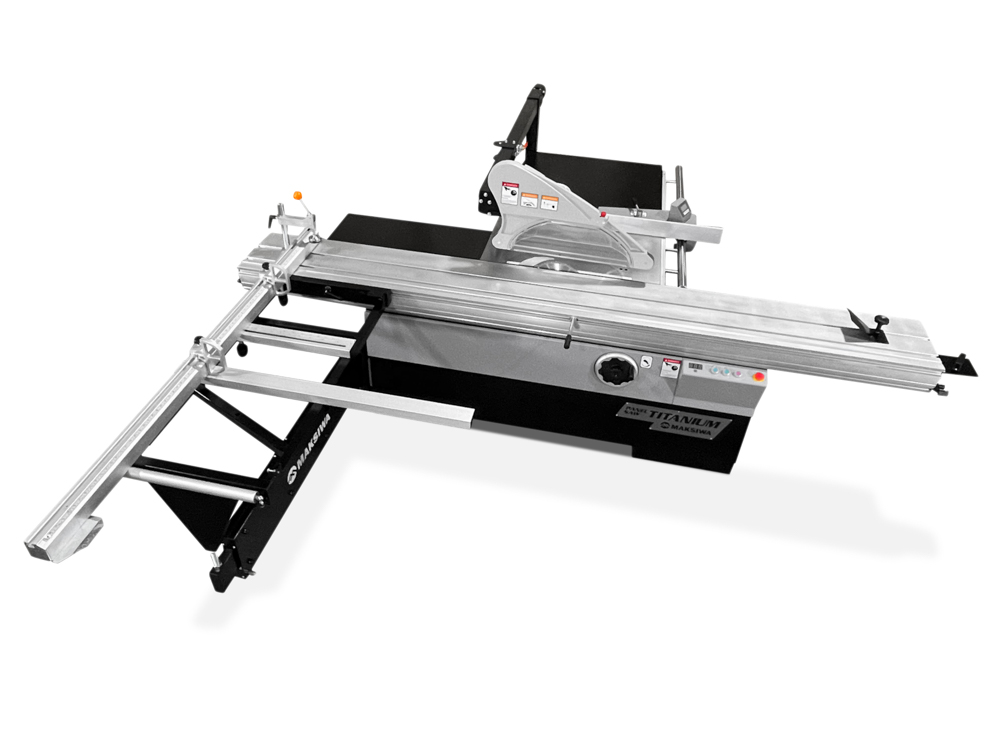

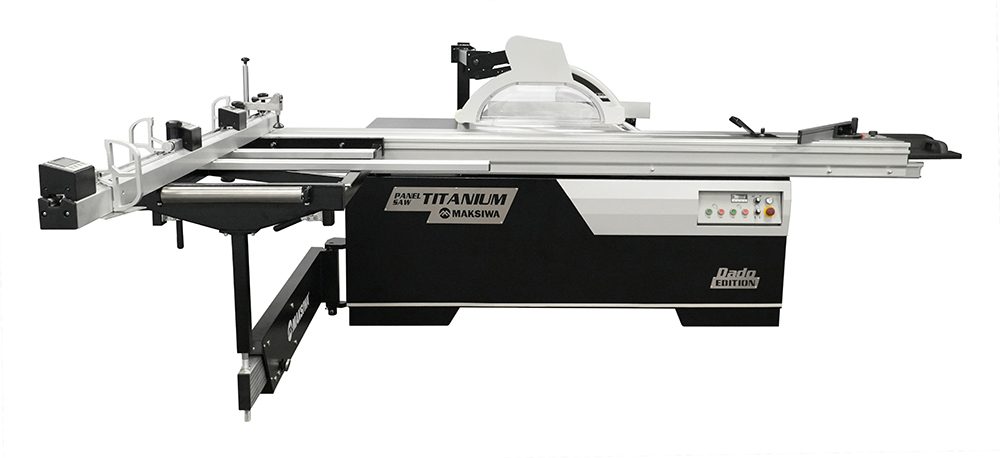

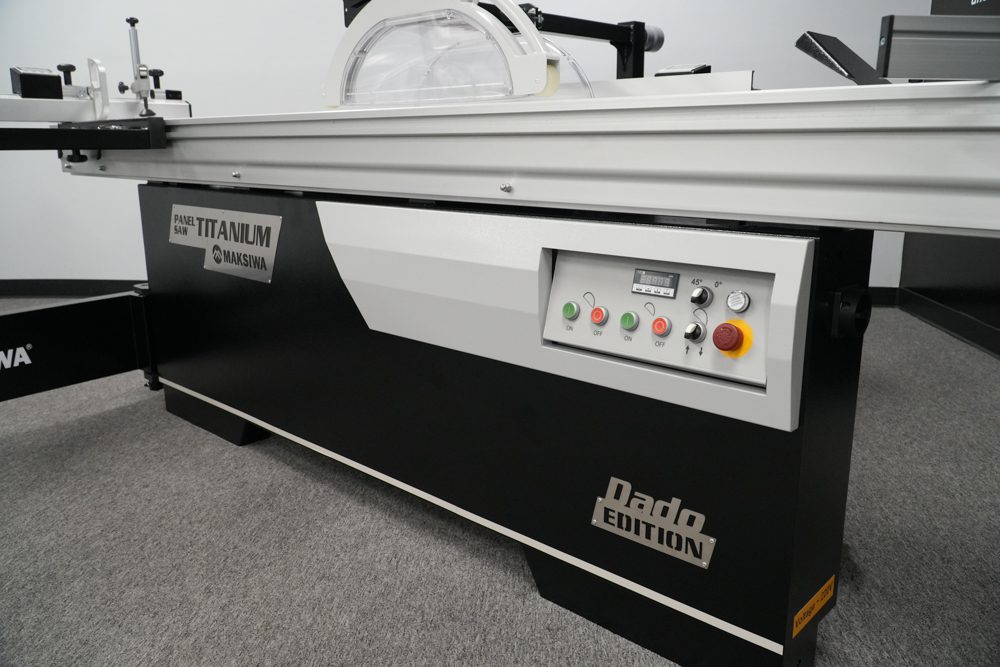

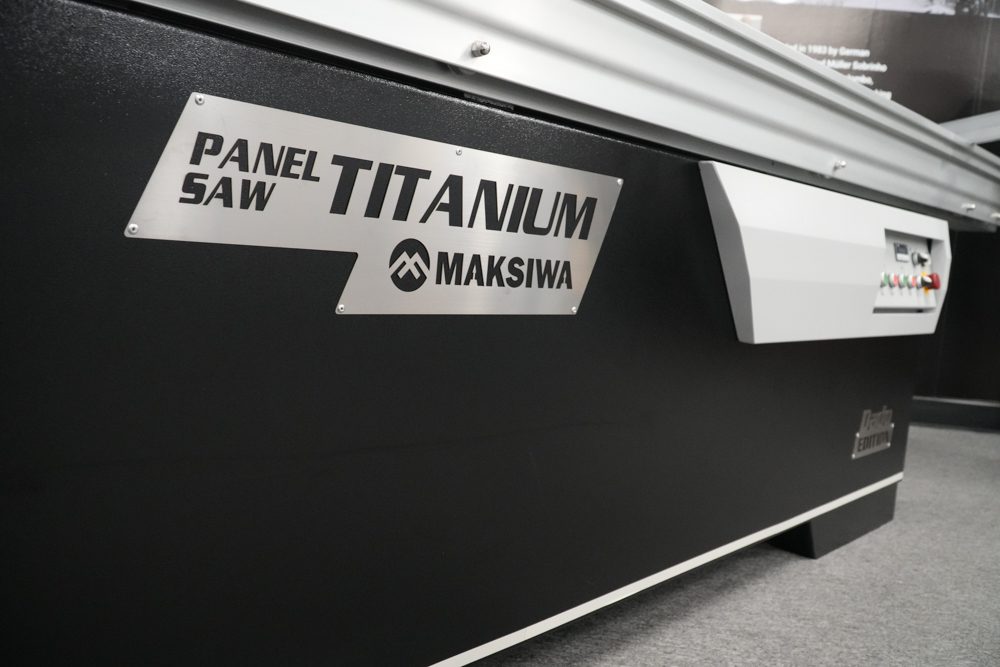

Titanium Sliding Panel Saw engineered for precision and performance.

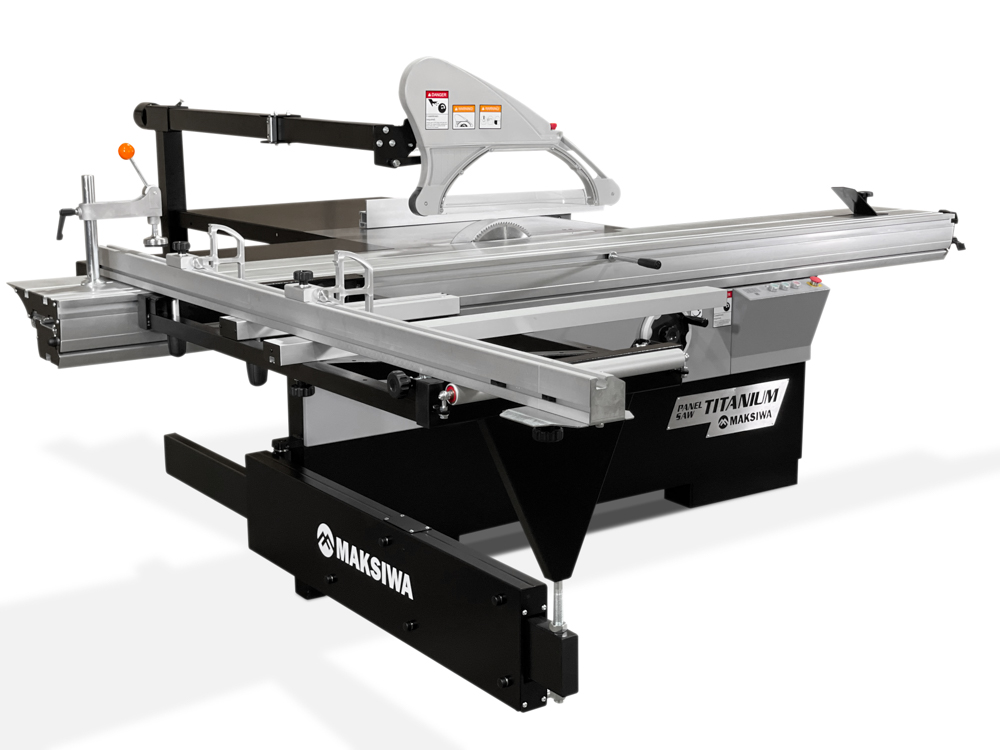

The NEW EDITION Maksiwa BMT.3200.IR Titanium Sliding Panel Saw – Dado Edition delivers enhanced precision, power, and control for professional woodworking.

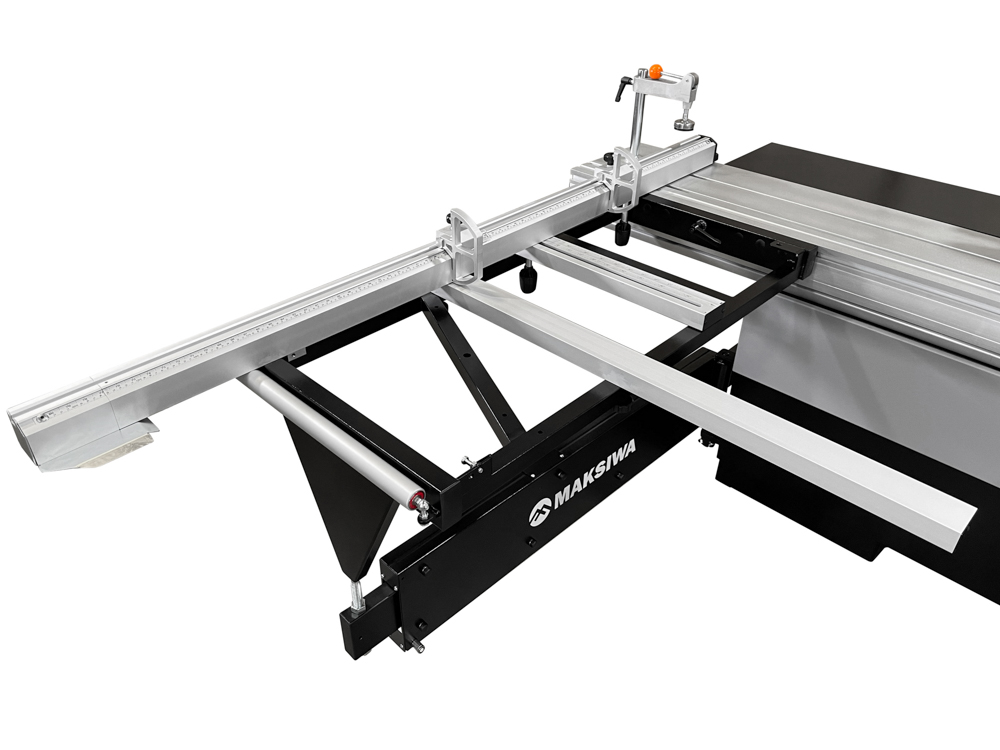

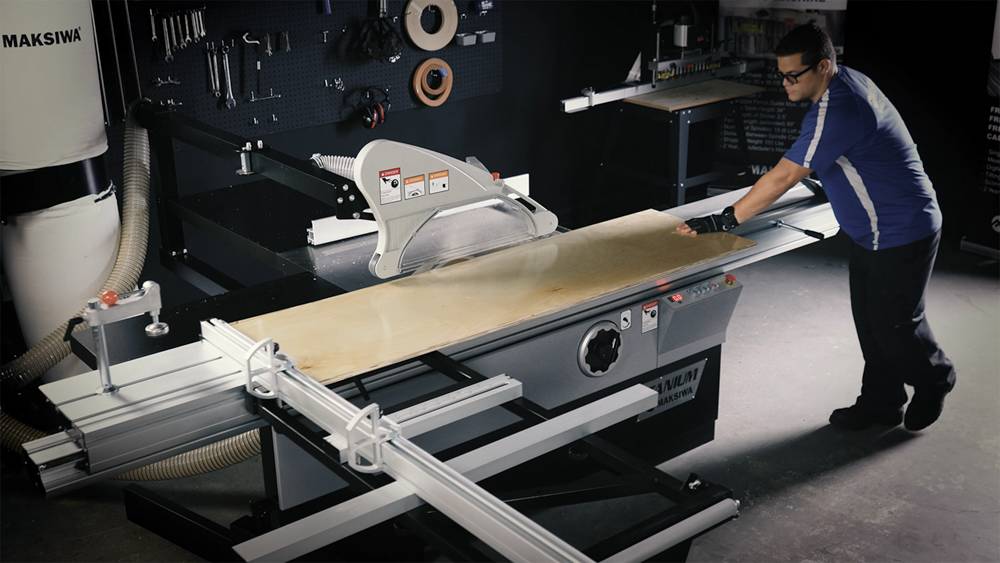

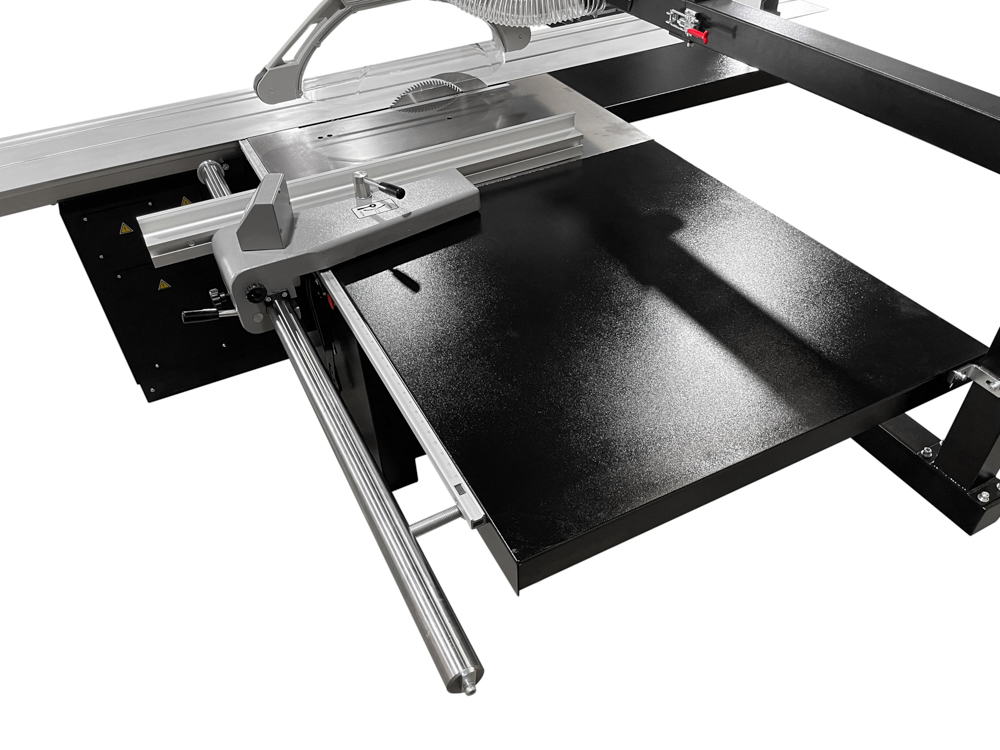

Built with a reinforced structure and premium components, it ensures durability and consistent results in demanding environments. Its precision sliding table provides smooth, stable movement, even with large panels.
Now featuring dado blade compatibility and motorized blade height and tilt, this machine offers greater versatility and faster, more accurate setup.
Equipped with a 5HP main motor, 1 HP scoring motor, and three digital crosscut fence & 1 rip fence readouts, it ensures precise, repeatable cuts. Dual overhead guards and dual 4” dust ports support a safer, cleaner workspace.
Designed for professionals who demand performance and reliability, the BMT.3200.IR delivers precision in every cut.
$10,999
- 5HP 1 Phase 220V
- 1 HP scoring motor NEW
- Cuts up to 10' long sheets

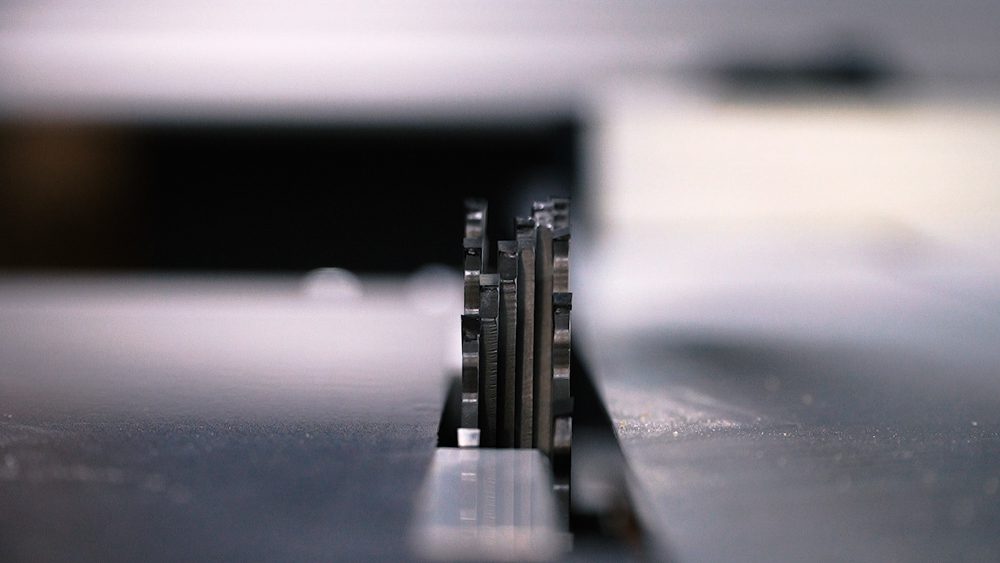

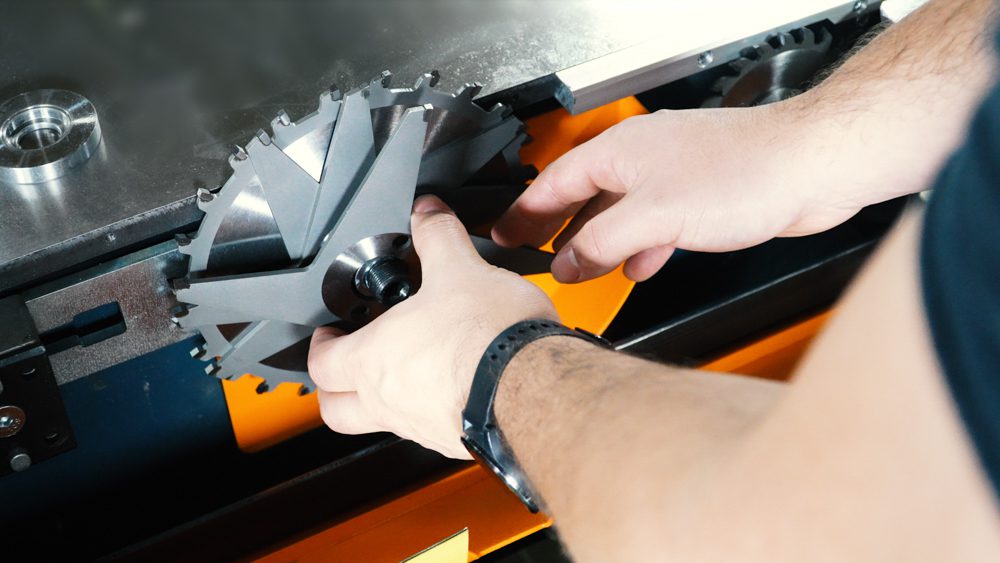

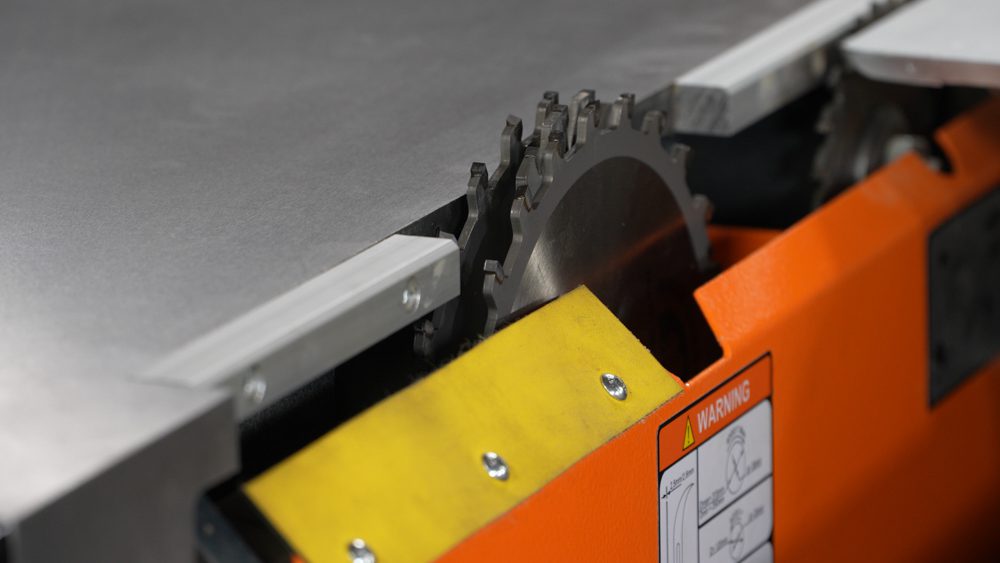

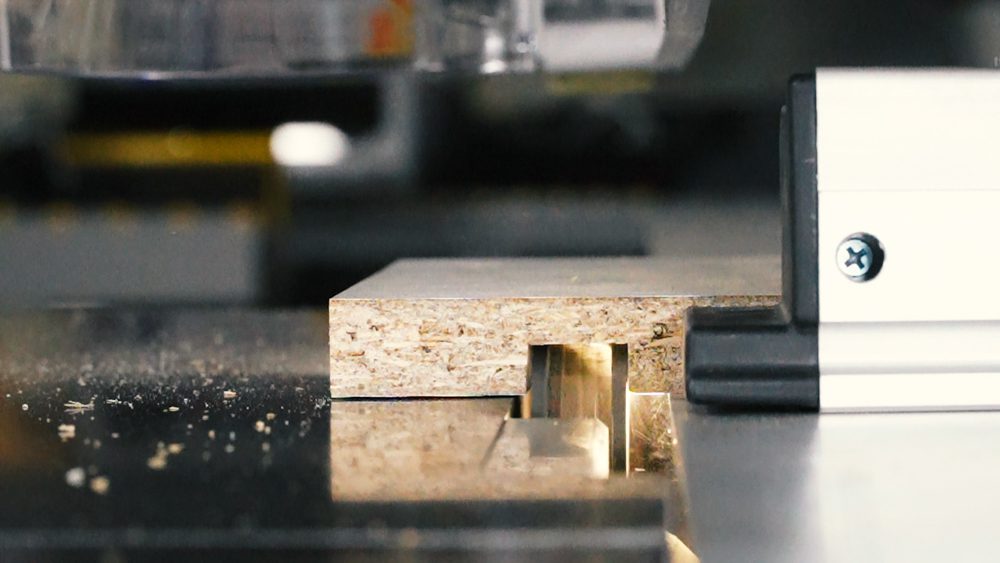

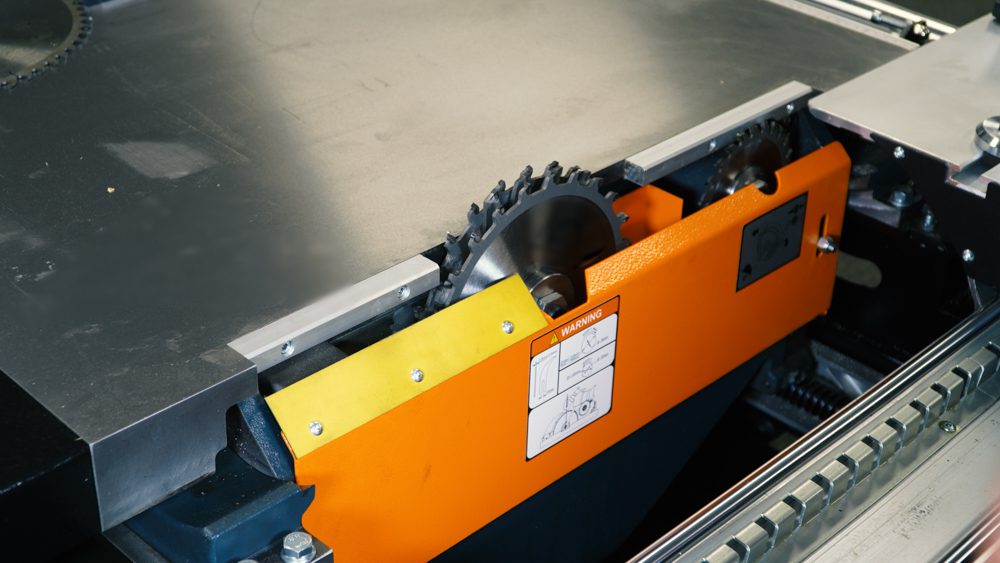

- Dado Blade Stack Compatible NEW

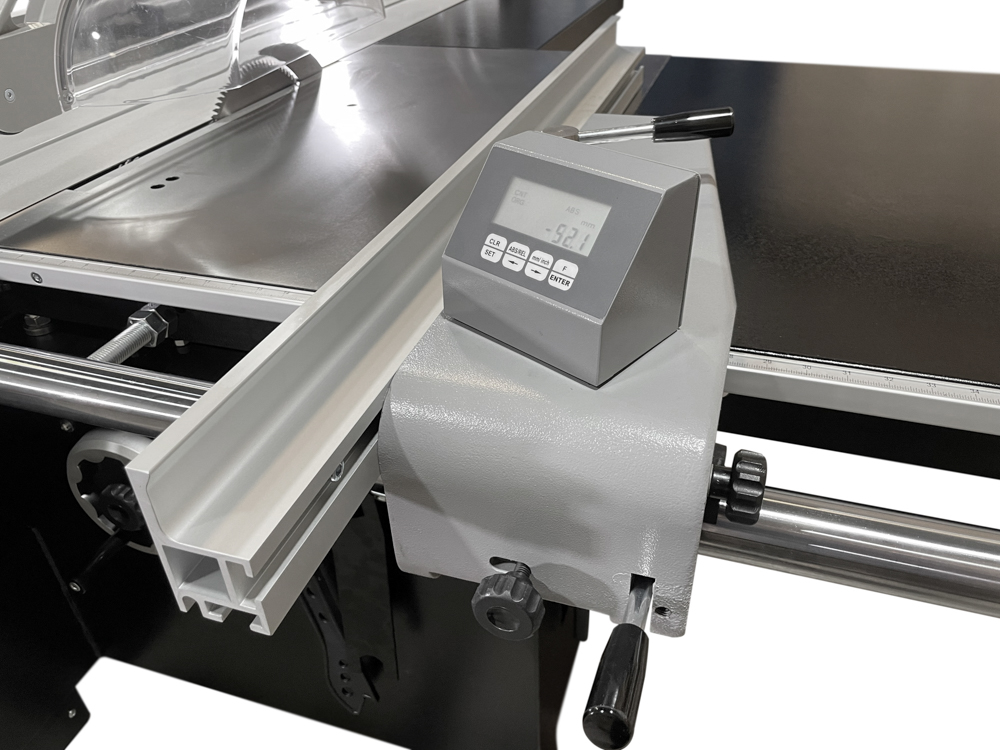

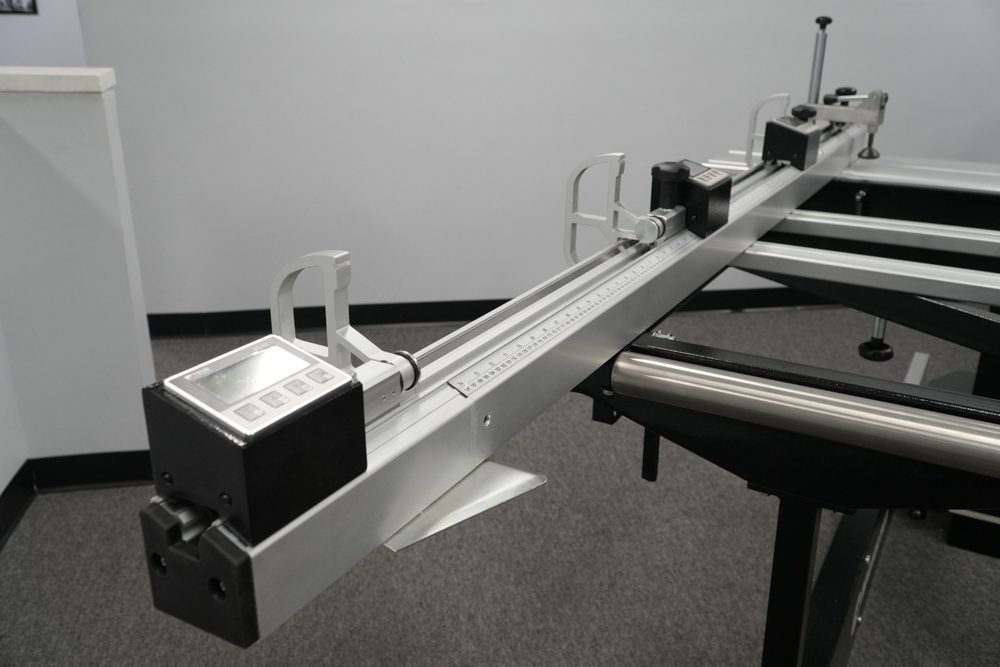

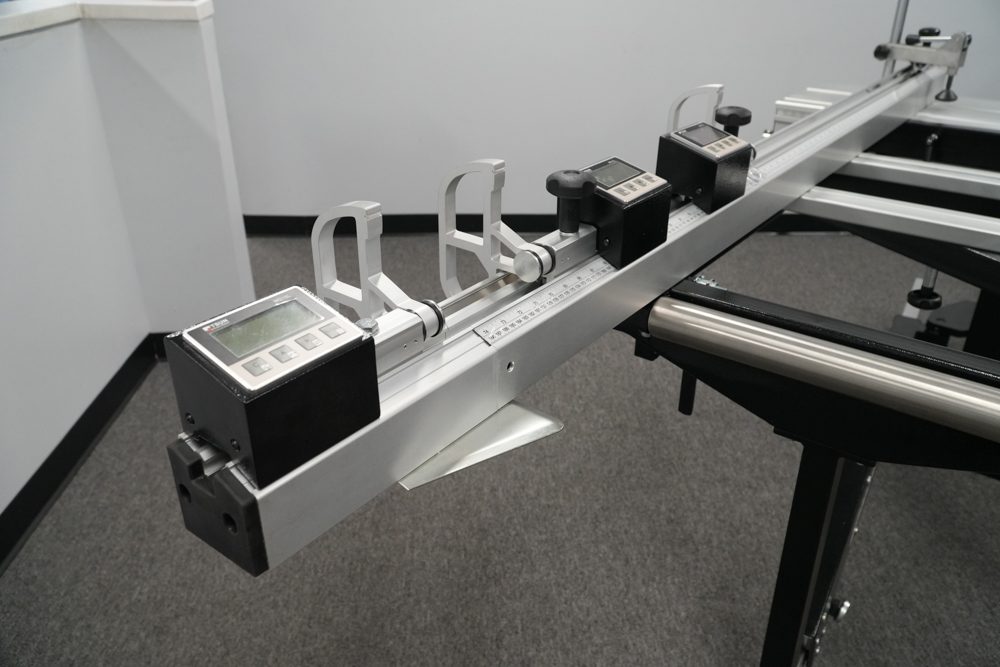

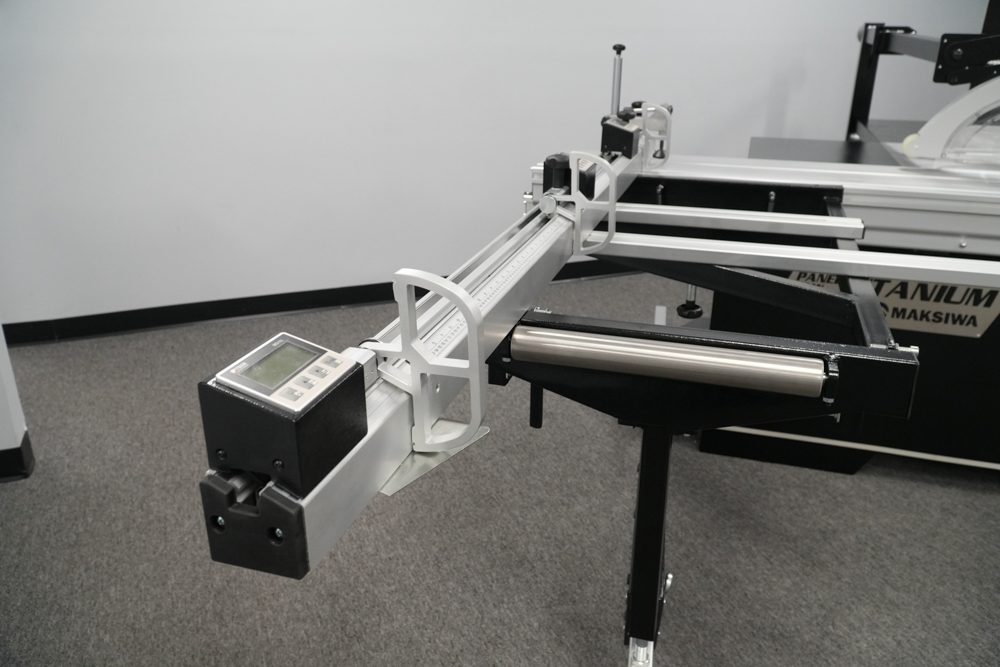

- 3 Digital Crosscut fence readout NEW

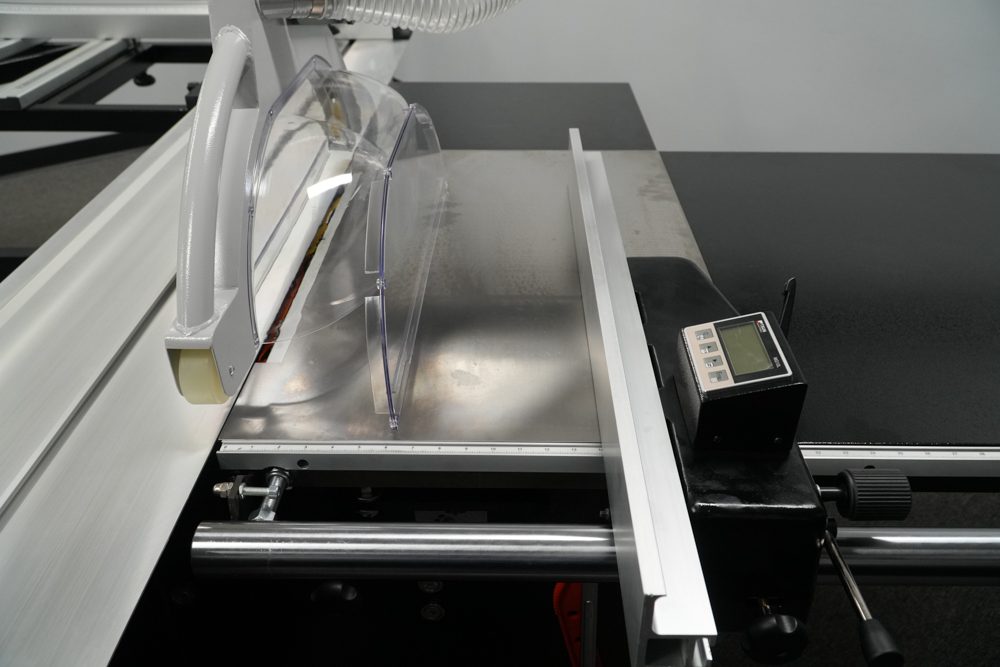

- Digital rip fence readout

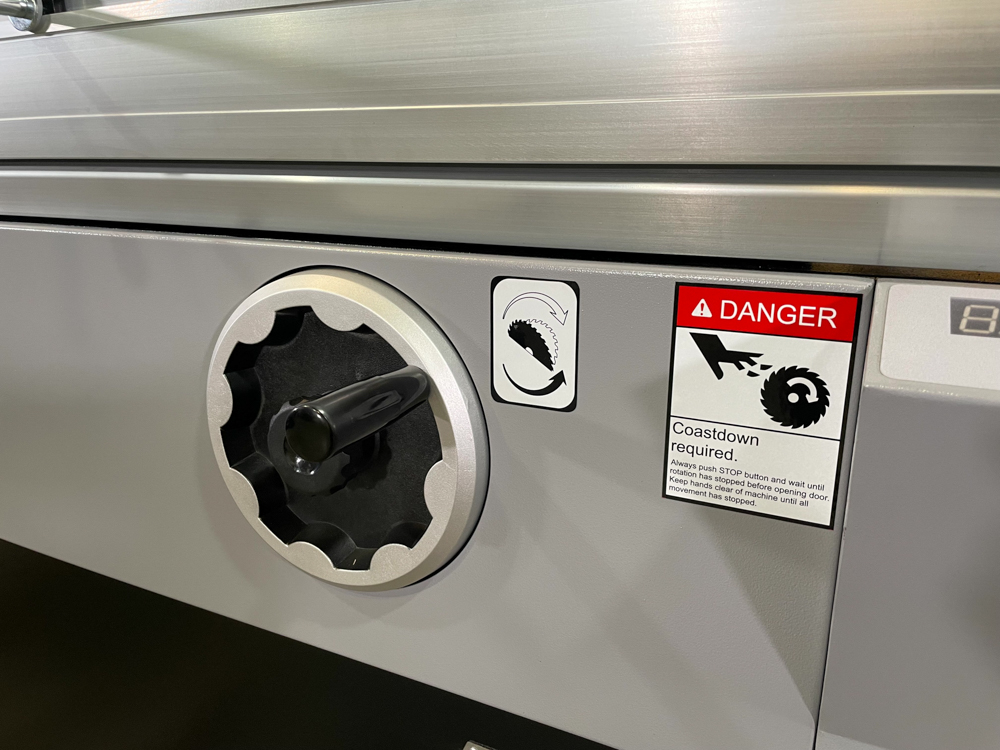

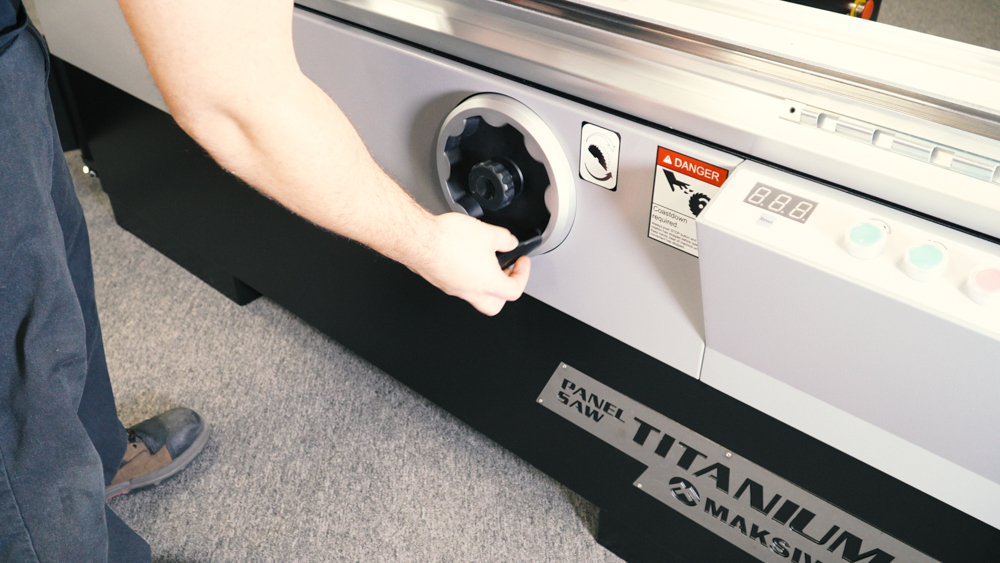

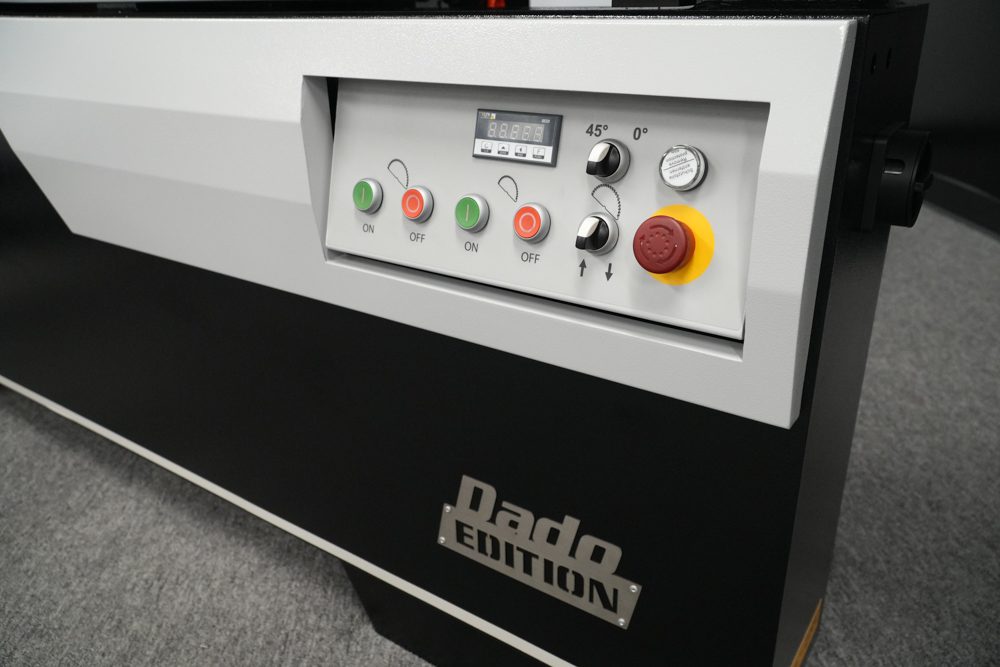

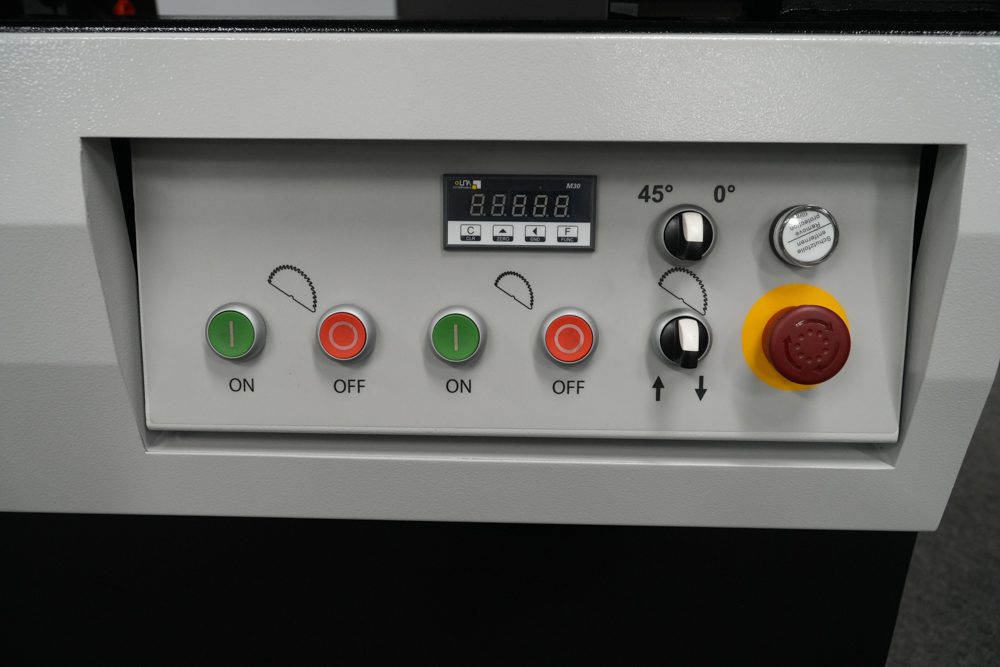

- Motorized blade height & tilt NEW

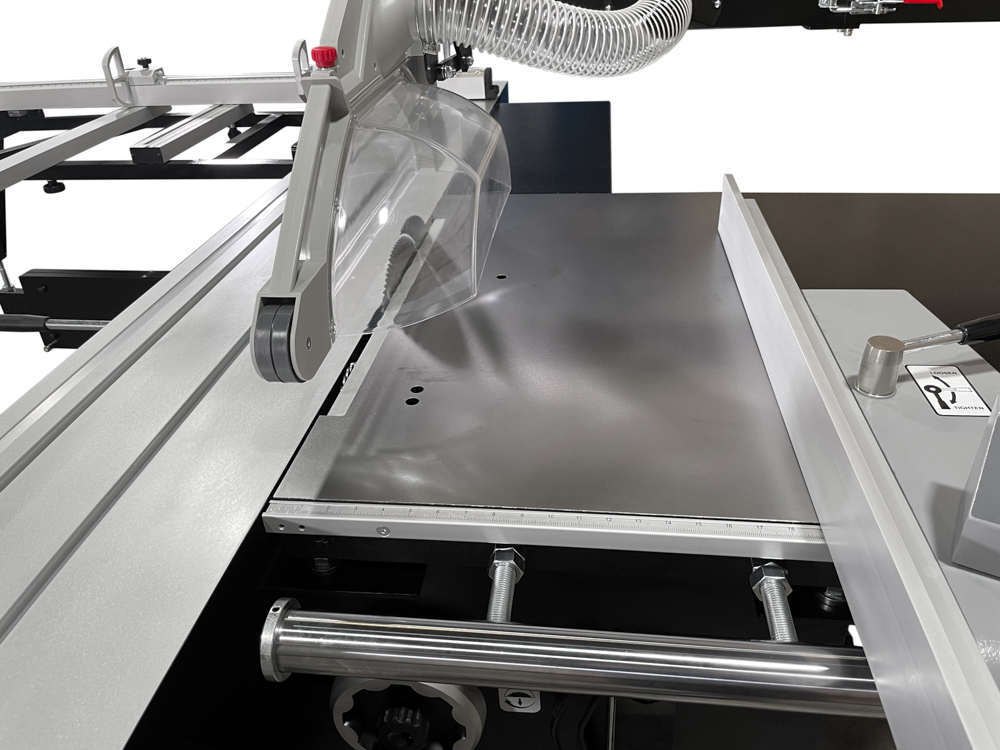

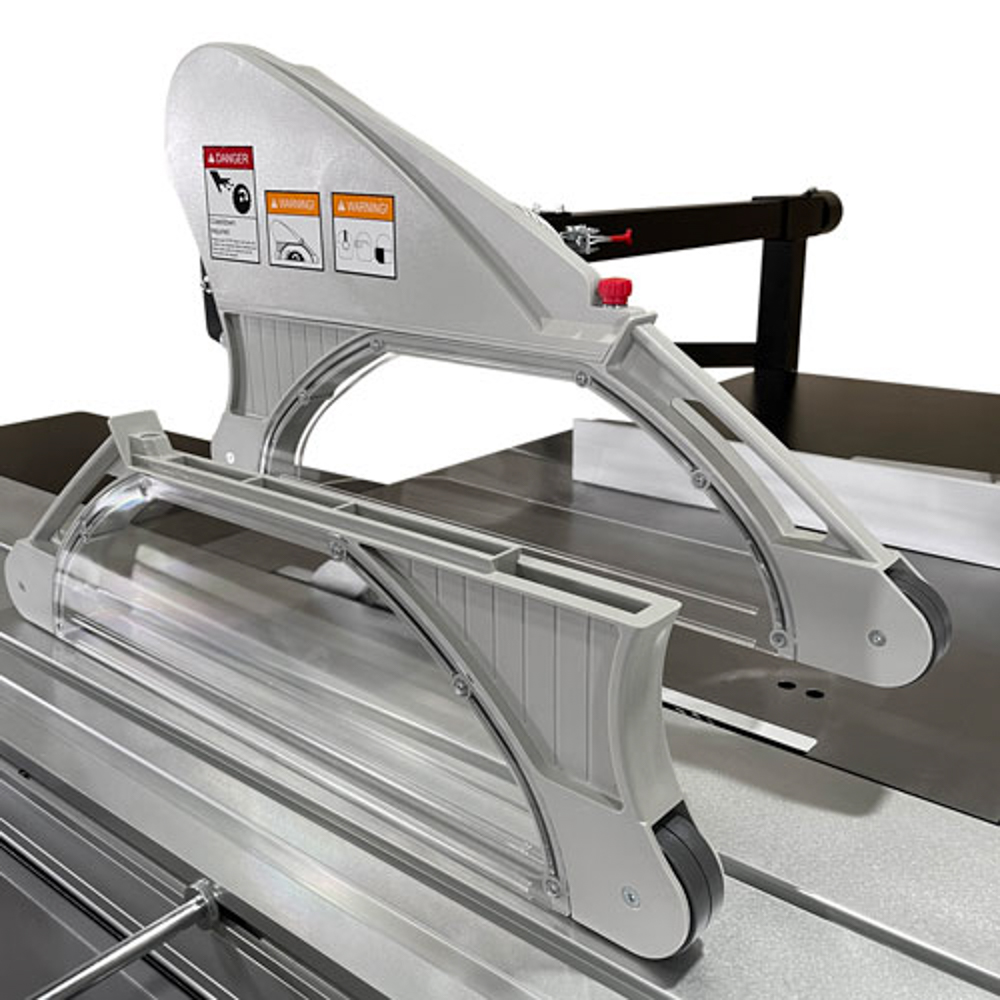

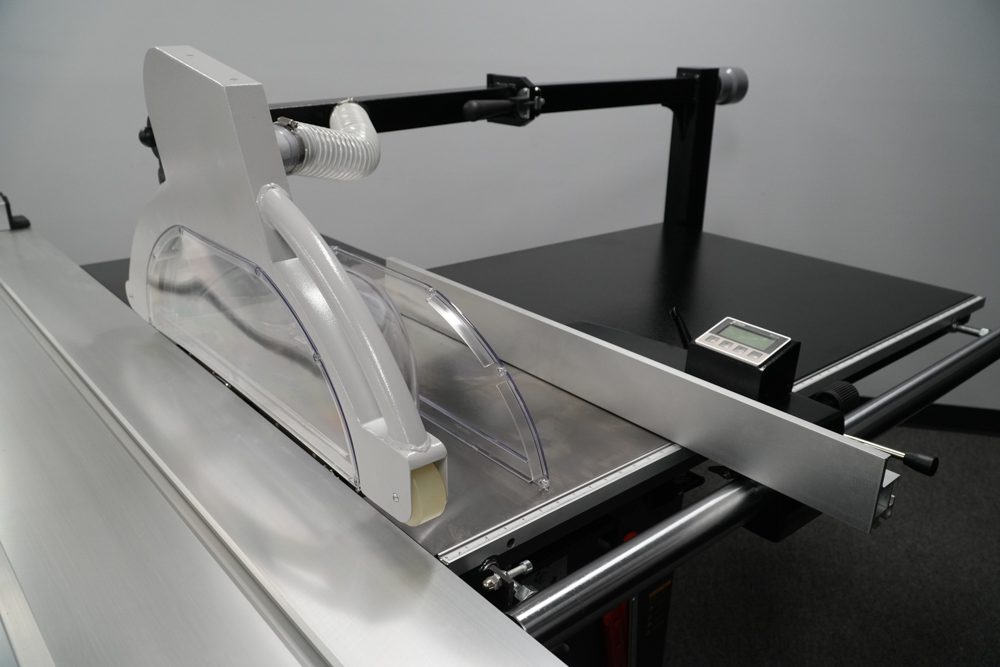

- Dual blade covers

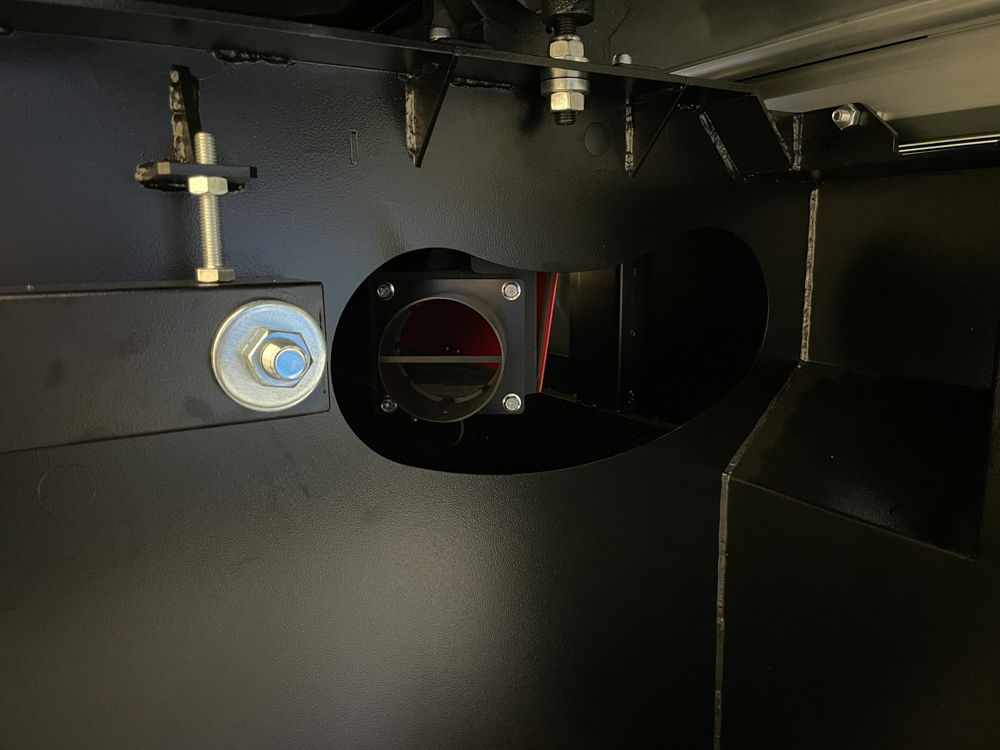

- Integrated dust collection
- Digital angle display (90º to 45º)

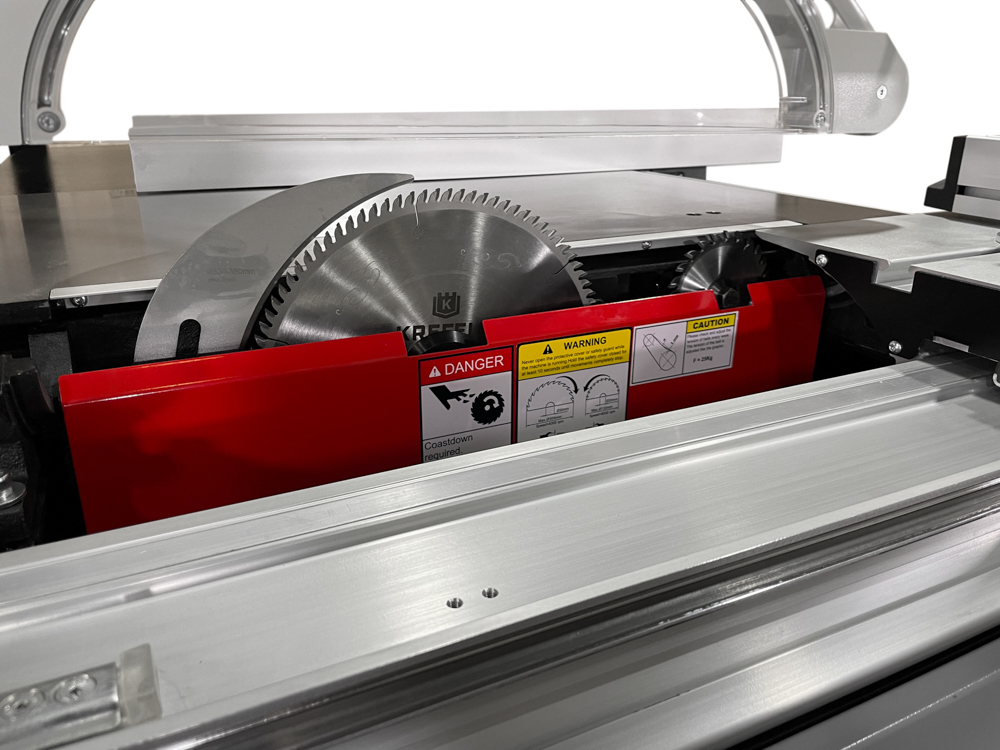

- One set of blades included (Main 12" and Scoring)
- Heavy duty Grade Machine

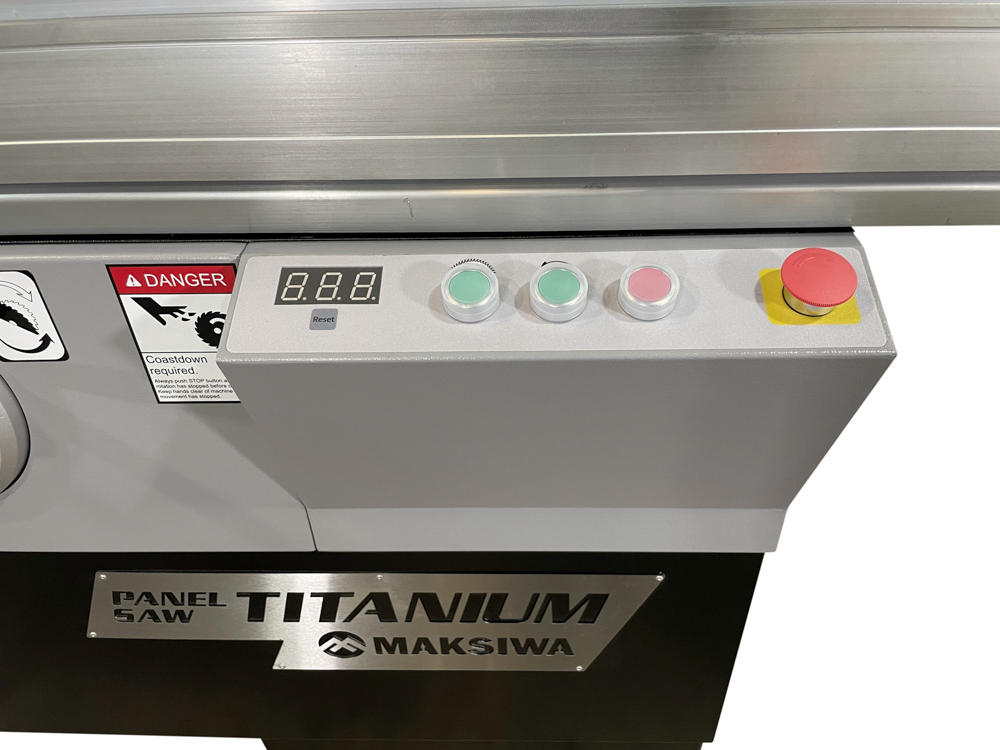

ADVANCED CONTROL WITH DIGITAL READOUTS & MOTORIZED ADJUSTMENTS
WHY CHOOSE BMT.3200.IR?
VIDEO
INSTALLATION
2 YEAR
EXTENDED WARRANTY
US BASED
TECH SUPPORT
REAL REVIEWS. REAL RESULTS
BMT.3200.IR - MACHINE SPECIFICATIONS
| Technical Information | BMT.3200.IR |
|---|---|
| Electrical Specs | 1 Phase 220V 22 Amp 60 Hz |
| Main Motor | 5 HP 4000 RPM 3.7Kw |
| Max Blade Diameter | 12" | 305mm |
| Main Blade Arbor | 1-3/16" | 30mm |
| Main Blade Max Cutting Height at 90° | 3-1/2" | 90mm |
| Main Blade Cutting Height at 45° | 2-1/8" | 53mm |
| Dado Width Capacity | 1-1/4” |
| Max Dado Blade Diameter | 8” |
| Dado Blade Arbor | 1-3/16" | 30mm |
| Scoring Motor | 1 HP / 8000 RPM .74Kw |
| Scoring Blade | 4-3/4" | 120mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Crosscut Capacity | 51" | 1300mm |
| Max Ripping Capacity | 126" | 3200mm |
| Crosscut Fence Capacity | Closed: 74-3/4" | Open: 108" |
| Machine Dimensions | 126" x 137" x 52" |
| Cast Iron Table Dimension | 31-1/2" x 21" x 34-3/4" |
| Sliding Table Dimension | 126" x 14-3/4" |
| Sliding Table Mechanism | Roller Bearings |

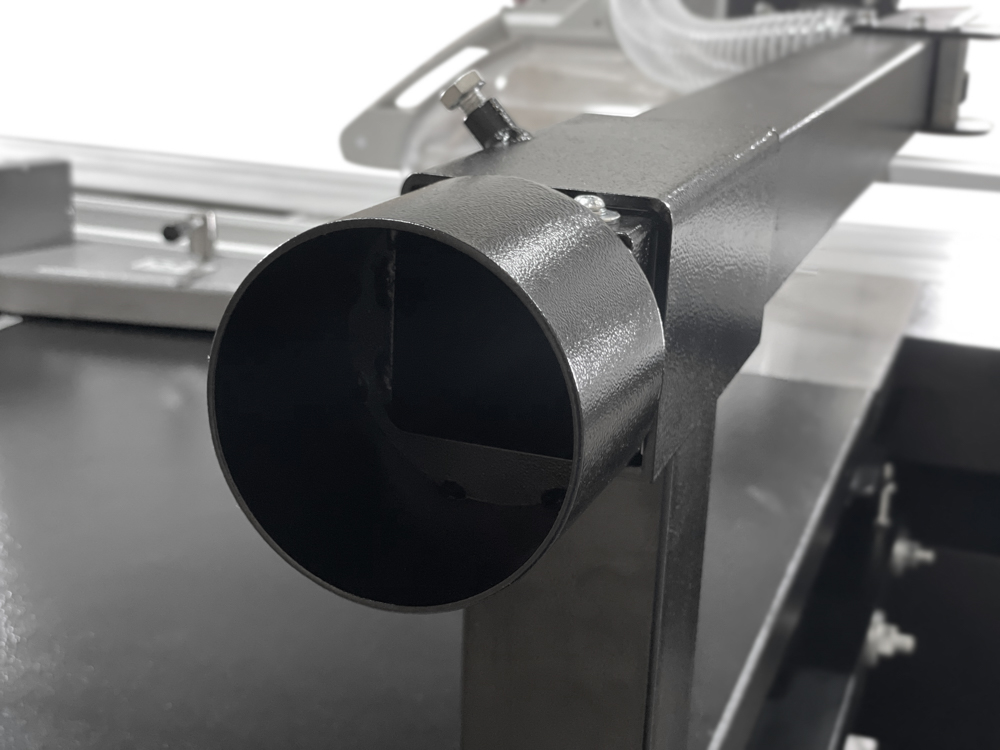

| Dust Collection Port (2) | 4" |
| Minimum Dust Collection Requirements | 1000 CFM |
| Weight | 1417 lbs |
| Warranty | 2 Years |
Compare our SLIDERS PANEL SAW
BMS.1600.IR
- 5' Sliding Panel Saw
- 5 HP 1 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Crosscut Fence Readout
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Roller Bearings
BMS.3200.IR
- 10' Sliding Panel Saw
- 5 HP 1 Phase or 3 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Crosscut Fence Readout
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Roller Bearings

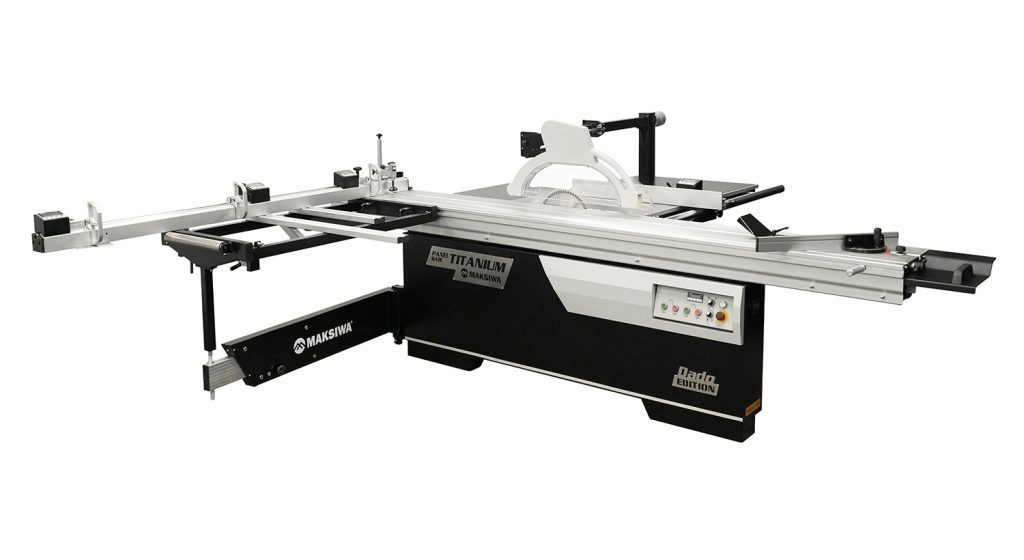

BMT.3200.IR
- 10' Sliding Panel Saw
- 5 HP 1 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Crosscut Fence Readout
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Roller Bearings
BMP.3200.IR
- 10' Sliding Panel Saw
- 7.5 HP 3 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Crosscut Fence Readout
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Ball Bearings
BMD.3200.IR
- 10' Sliding Panel Saw
- 10 HP 3 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Crosscut Fence Readout
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Ball Bearings
