FH.16.C
MORTISER

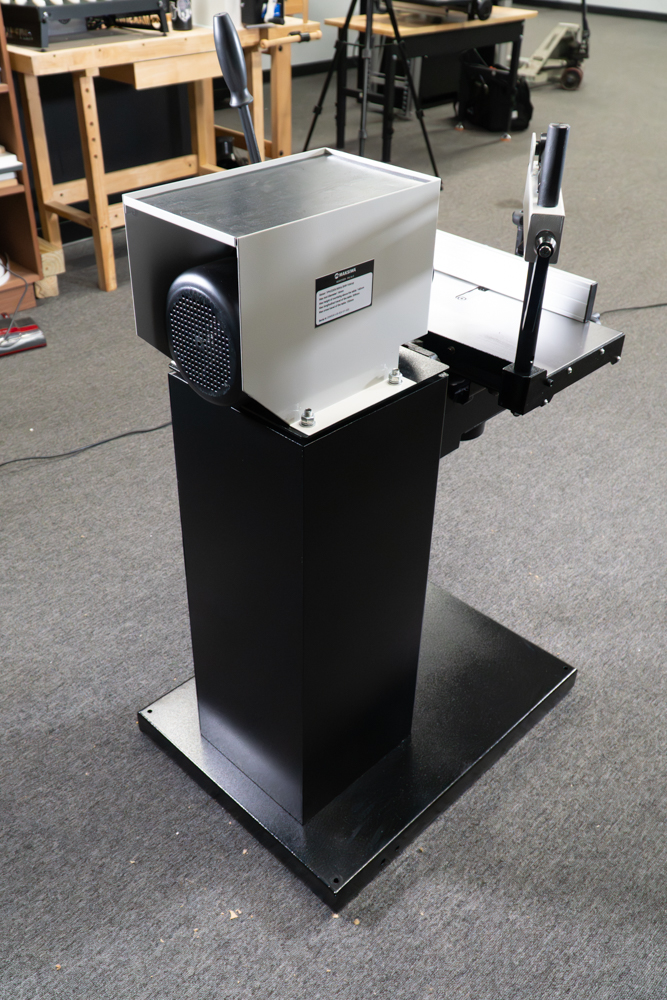

Powerful 3HP Motor
•

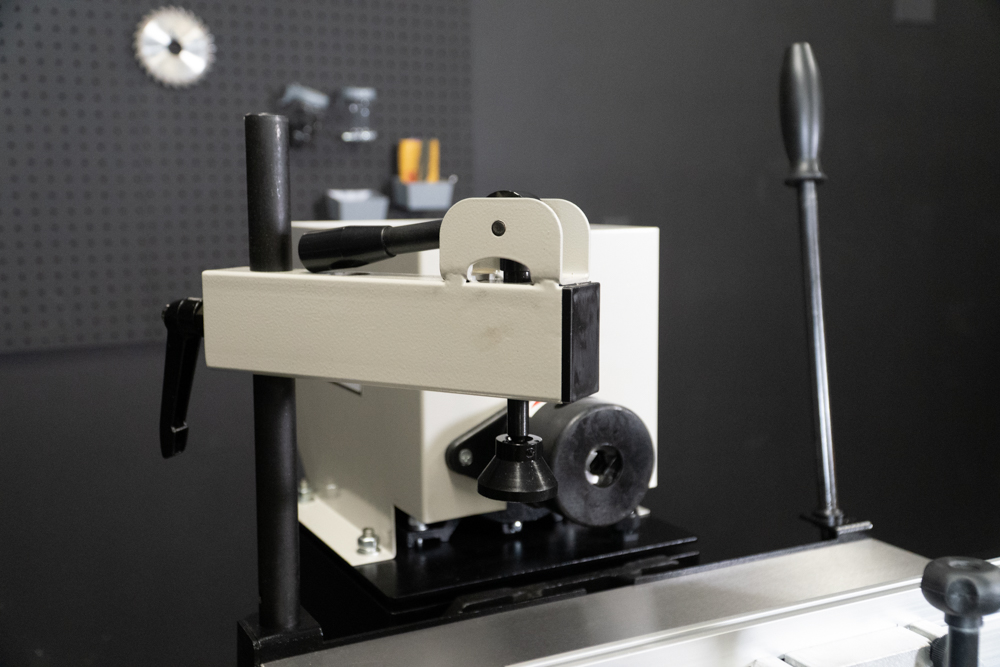

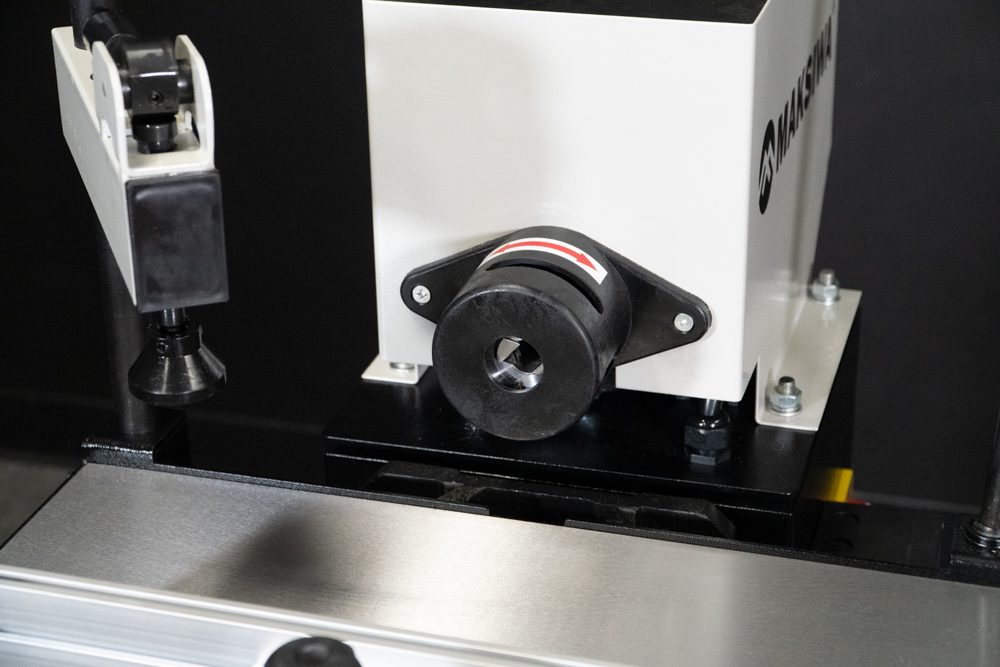

Rotating Mortising Head
•
Extended Base with Clamping

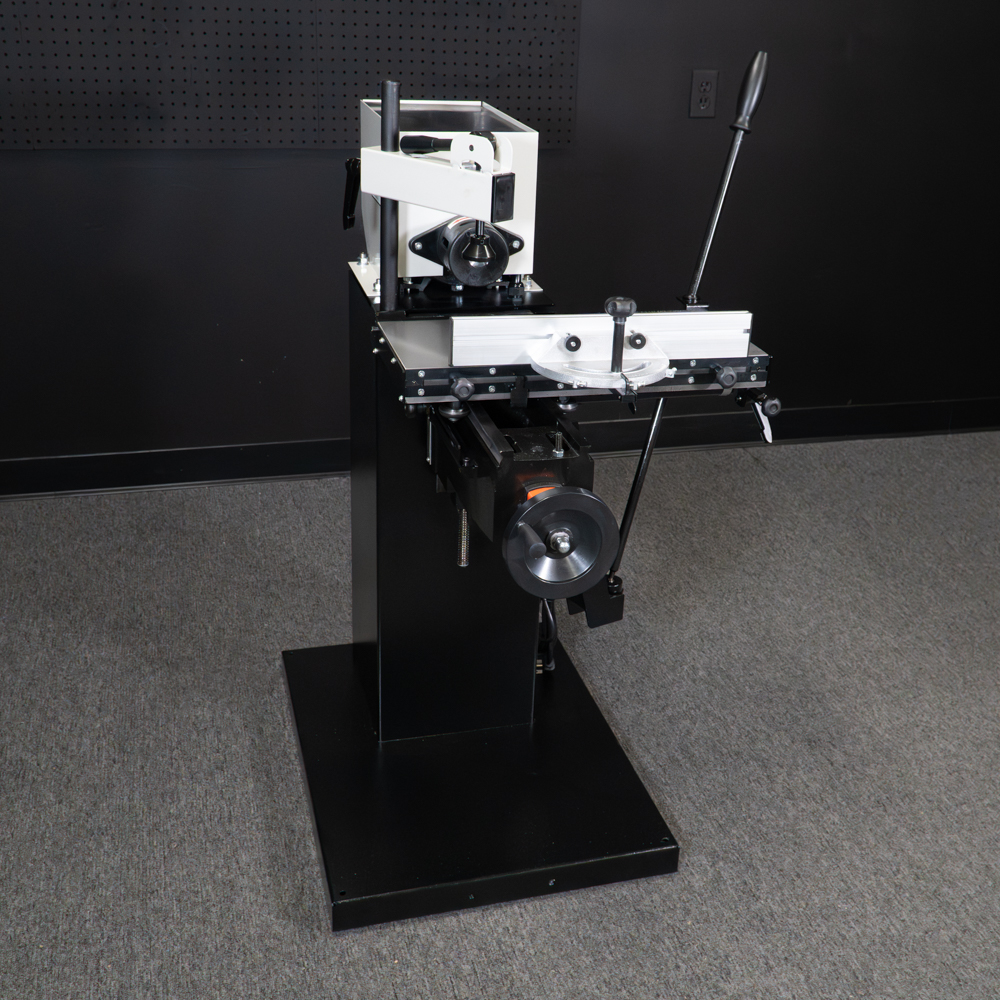

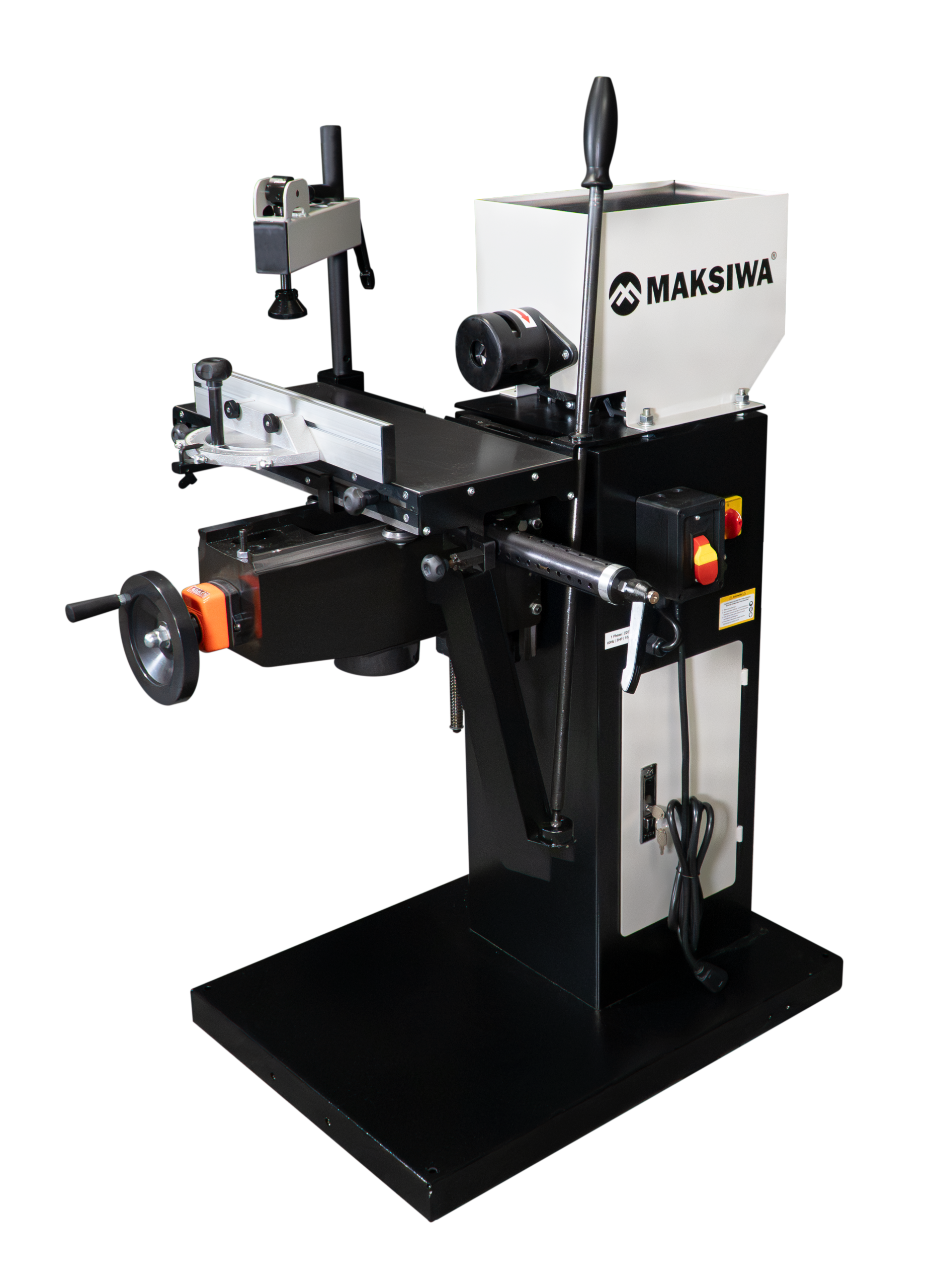

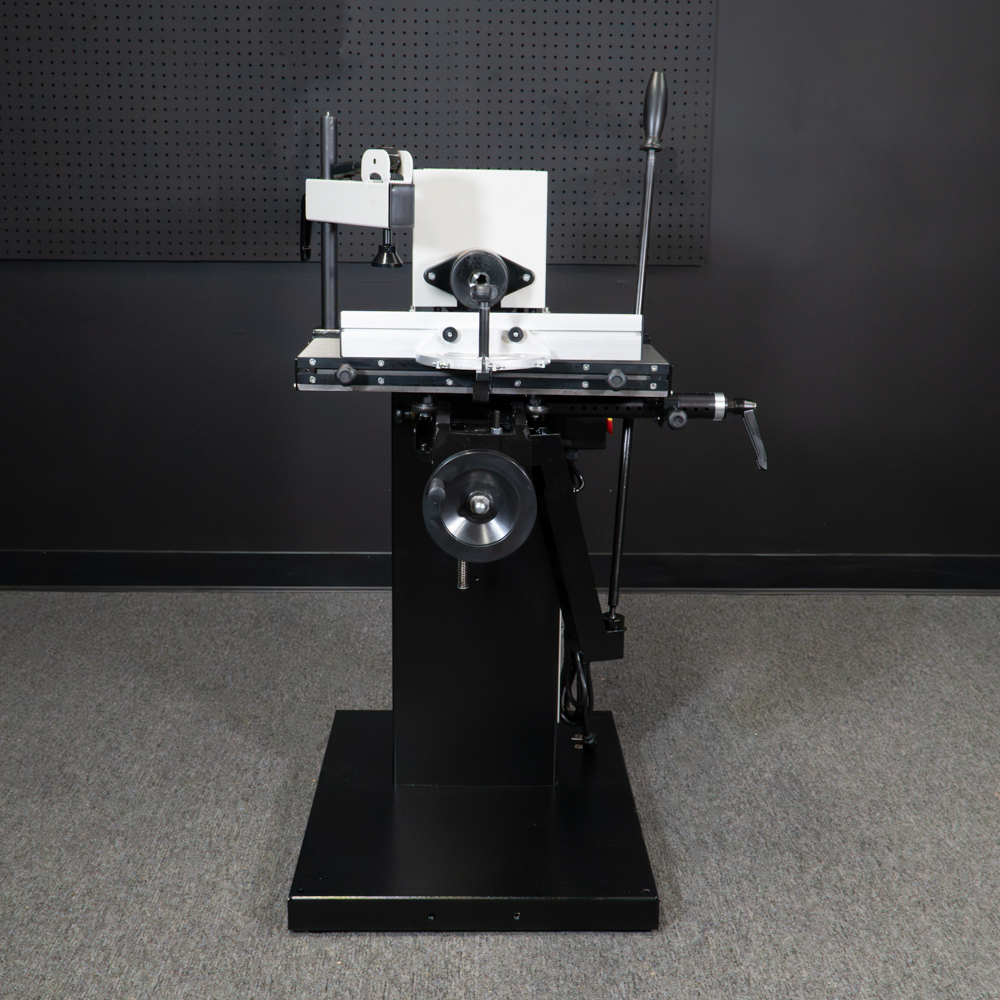

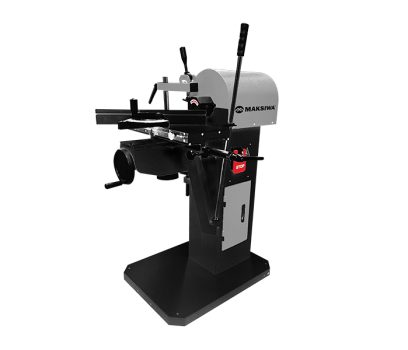

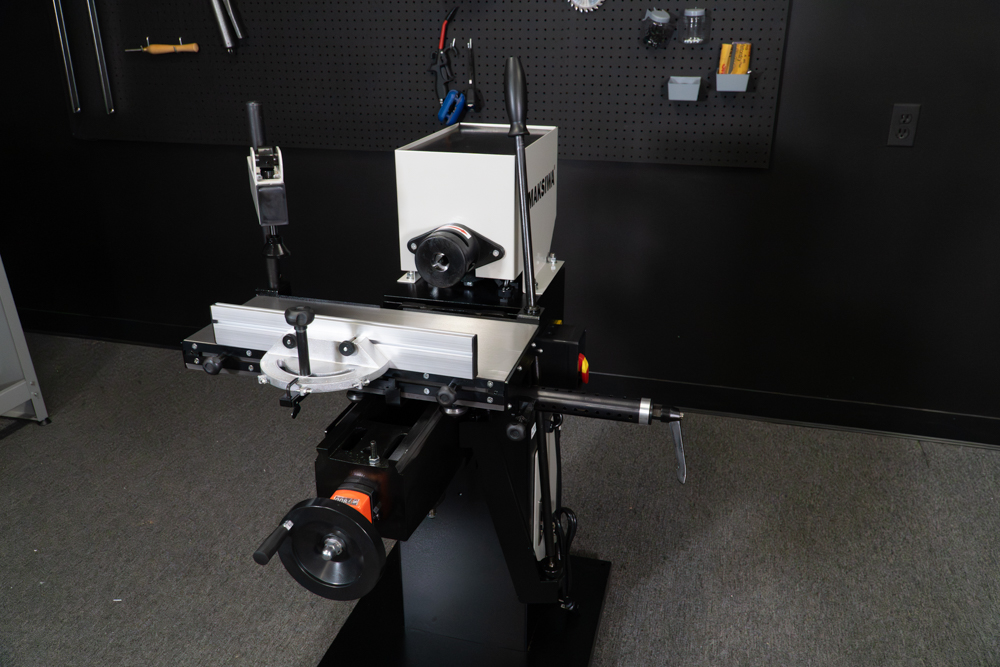

Professional horizontal mortiser with rotating head and extended base
The Maksiwa FH.16.C Horizontal Mortiser is built for professional woodworkers who demand precision, power, and flexibility in mortising operations. Powered by a robust 3HP motor, this machine delivers smooth, accurate mortises across a wide range of materials, including hardwoods. Its rotating mortising head and multi-position hand lever make it ideal for complex and off-table applications, while the extended base and articulated arms provide superior stability and reach. Designed for efficiency and control, the FH.16.C is a must-have solution for cabinet shops, furniture makers, and production environments.
$1,040
- Powerful 3HP motor
- Horizontal mortising
- Rotating mortising head
- Multi-position hand lever

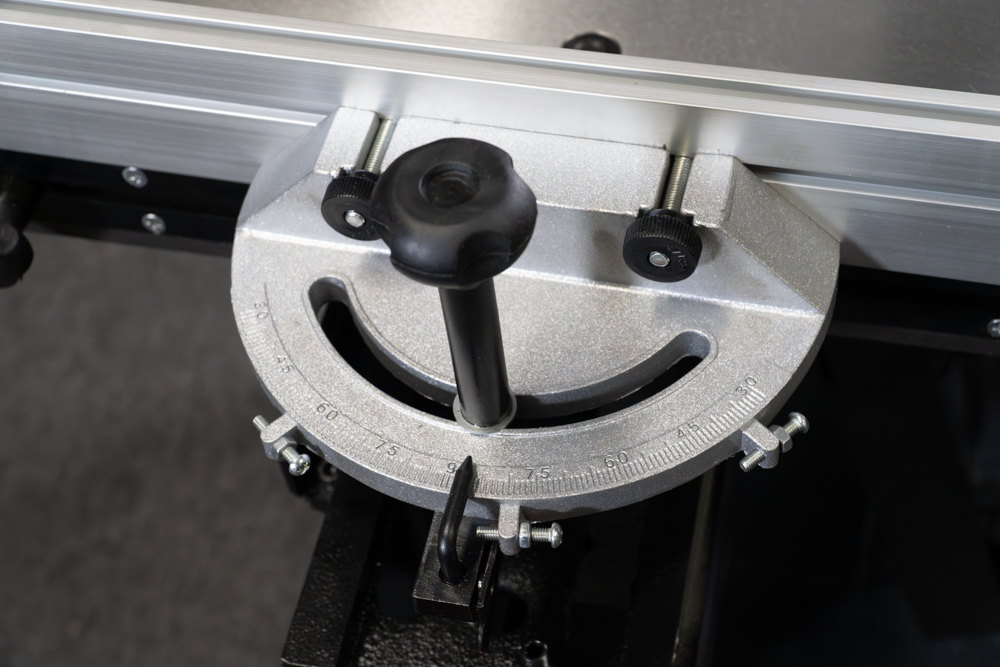

- Clamping device
- Articulated arms
- Extended base
- Smooth and clean horziontal slot
WHY CHOOSE FH.16.C?
VIDEO
INSTALLATION
2 YEAR
EXTENDED WARRANTY
US BASED
TECH SUPPORT
REAL REVIEWS. REAL RESULTS
FH.16.C - MACHINE SPECIFICATIONS
| Technical Information | FH.16.C |
|---|---|

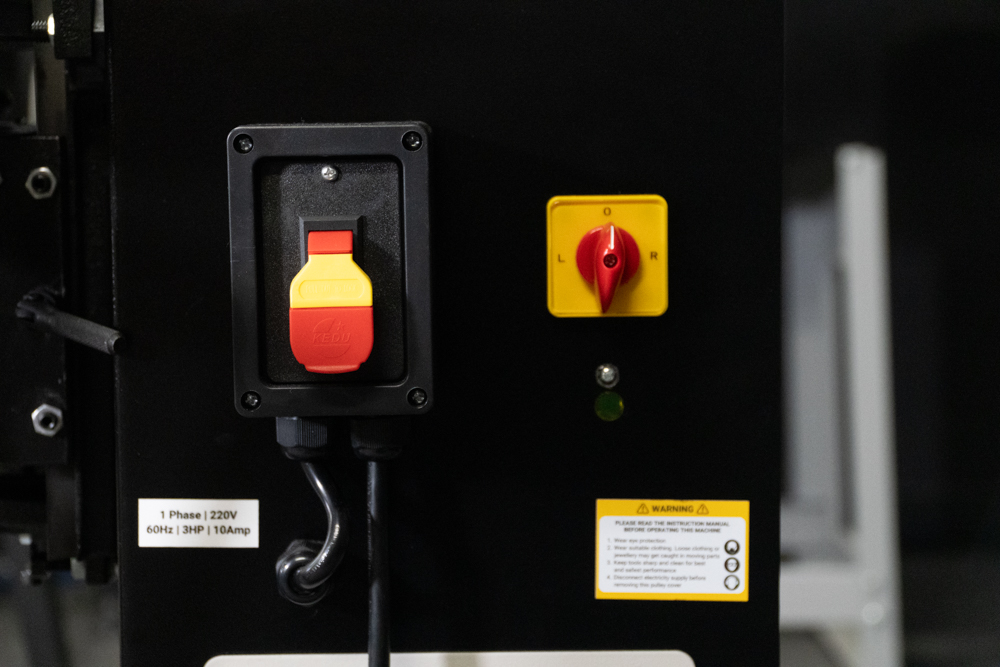

| Electrical Specs | 1PH 220V 60Hz 10 Amp |
| Motor Specs | 3 HP 2.2kw |
| Spindle Speed | 3400 RPM |

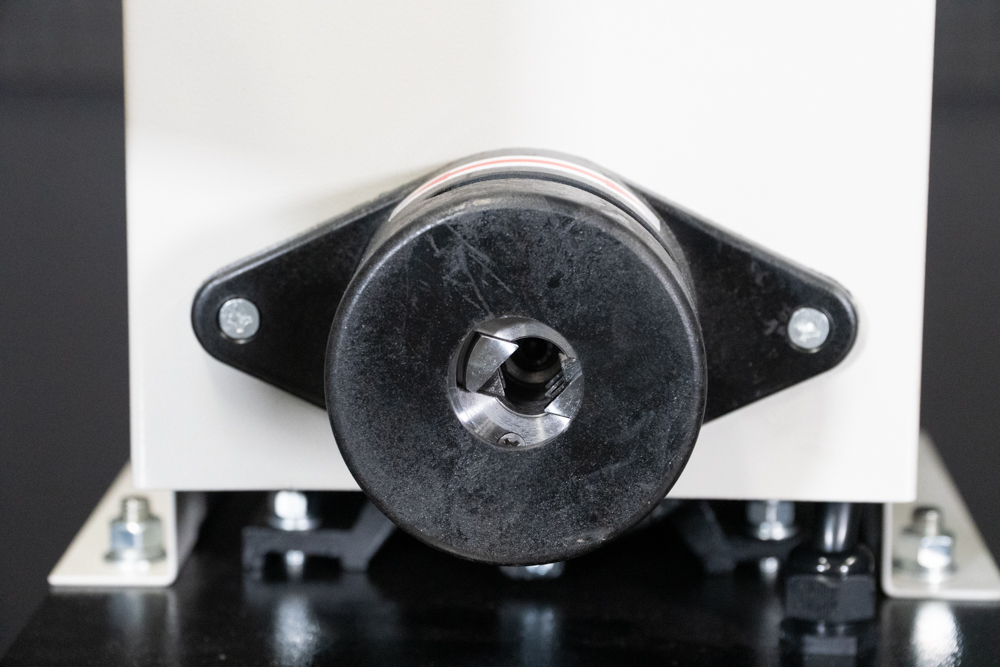

| Chuck Capacity | 16mm |
| Max Height Capacity | 140mm | 5 -1/2" |
| Table Longitudinal Travel | 309mm | 12 - 3/16" |
| Table Cross Travel | 150mm | 5- 7/8" |
| Work Table Dimension | 500 x 207mm | 19-11/16" x 8-1/8" |
| Machine Dimension | 29-1/8" x 22-1/16" x 52" |
| Weight | 238 lbs |
| Warranty | 2 Years |
