Description

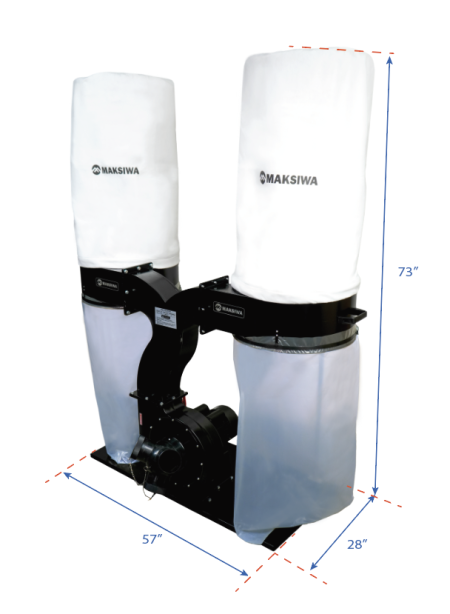

Collect dust of up to 3 machines.
WHY THE DUST COLLECTOR IS IMPORTANT?
The unhealthy effects caused by wood dust can be dramatically reduced by the use of a dust collector. In 2002 the U.S. government put saw dust on their list of “known carcinogens”, linking it to a variety of nose, throat, and lung cancers, making it an official health risk. Collecting and exhausting dust at its source, before it reaches you, is the most efficient way to deal with wood dust. That’s why woodworking machines — from table saws to disk sanders — come with exhaust hoods or ports.
| Technical Information | CPD/3.C |
|---|---|
| Motor Spec | 3 HP 1 phase 220 V 15 A |
| Air Flow Capacity | 2,760 CFM |
| Fan Diameter | 12″ | 305mm |
| Bag Capacity | 15 ft3 | 0.43 m3 |
| Number of air Inlet | 3 |
| Inlet size | Main: 6″ | 150mm – Spliter: 4″/100mm |
| Filtration | 1 micron |
| Sound Rating | 89 dB |
| Weight | 128 Lbs | 58 kg |
| Warranty | 2 years |
Instructions
Download the Manual
Certificates
Certified CE – Global
Peter Rabbit
Rabbit ShopThis Maksiwa dust collection system is awesome. Runs quiet powder coated surface, and reasonable price for what you get. But… the package was probably close to 75 pounds and took a beating by UPS during shipment. Couldn’t believe product wasn’t damaged. 5 stars for quality on the dust collector.
| Technical Information | CP/1.C | CP/2.C | CPD/3.C | CPD/5.S | CY/3.C |
|---|---|---|---|---|---|
| Motor | 1 HP – 1 Phase | 2 HP – 1 Phase | 3 HP – 1 Phase | 5 HP – 3 Phase | 3HP – 1 phase |
| Motor Amp Draw | 1 Phase – 127 V – 16 A or 220 V – 8 A | 1 Phase – 220 V – 15 A | 1 Phase – 220 V – 15A | 3 Phase – 220 V – 17 A | 1 Phase 220V 3HP 15A |
| Air suction capacity | 600 ft³/min | 1,790 ft³/min | 2,760 ft³/min | 3,001 ft³/min | 1941 CFM |
| Bag volume | 60 L (2,12 ft³) | 153 L (5,4 ft³) | 307 L (10,8 ft³) | 400 L (14.13 ft³) | Drum Size -31 Gal |
| Number of air intel | 1 Entry | 2 Entries | 3 Entries | 5 Entries | 3 Entries |
| Bag size | 13 x 25 inches | 18 x 34 inches | 18 x 34 inches | 23-5/8 x | 20″ x 43″ |
| Weight | 73 Lbs | 106 Lbs | 130 Lbs | 242.5 Lbs | 181 lbs |
| Micro rating | 2.5 microns | 2.5 microns | 2.5 microns | 1 microns | 2.5 microns |
