Keep your woodwork environment clean, use Dust Collectors Maksiwa.
WHY THE DUST COLLECTOR IS IMPORTANT?
The unhealthy effects caused by wood dust can be dramatically reduced by the use of a dust collector. In 2002 the U.S. government put saw dust on their list of “known carcinogens”, linking it to a variety of nose, throat, and lung cancers, making it an official health risk. Collecting and exhausting dust at its source, before it reaches you, is the most efficient way to deal with wood dust. That’s why woodworking machines — from table saws to disk sanders — come with exhaust hoods or ports.

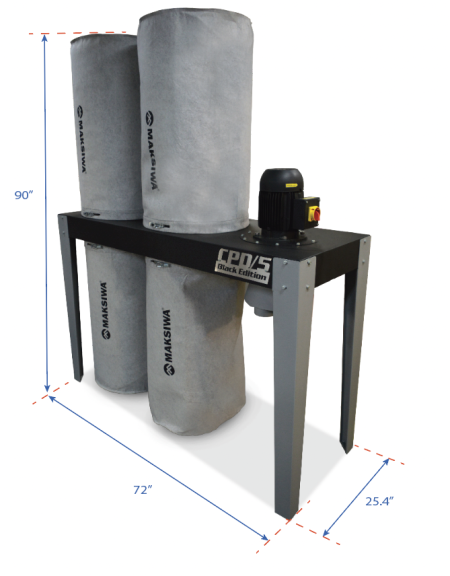

| Technical Information | CPD/5.S |
|---|---|
| Motor specs | 5 HP 3 phases 220V 20 A |
| Air Flow Capacity | 2760 CFM |
| Bag volume | 400 L (14.13 ft³) |
| Number of air inlet: | 5 (4in) |
| Filtration | 2.5 micron |
| Bag size | 25″ x 35″ | 580mm x 900mm |
| Weight | 242.5 Lbs. |
| Warranty | 2 years |
Instructions
Download the Manual
Certificates
Certified CE – Global
Alex Steven
Saw WoodworkVery good dust collector. Handles anything I can thow at it. Planer, table saw, orbital sander, etc. easy to wan out the bag. Well designed.
Jay Baldwin
Woodman CustomThis unit delivers proper dust collection to all machines. It is a workhorse and at the price is a great deal. It will not disappoint you in any way. It is fairly quiet and operates seemingly without effort. I have a full shop of tools and this collector takes care of them all.
| Technical Information | CP/1.C | CP/2.C | CPD/3.C | CPD/5.S | CY/3.C |
|---|---|---|---|---|---|
| Motor | 1 HP – 1 Phase | 2 HP – 1 Phase | 3 HP – 1 Phase | 5 HP – 3 Phase | 3HP – 1 phase |
| Motor Amp Draw | 1 Phase – 127 V – 16 A or 220 V – 8 A | 1 Phase – 127 V – 24 A or 220 V – 12 A | 1 Phase – 127 V – 34 A or 220 V – 17 A | 3 Phase – 220 V – 17 A | 1 Phase 220V 3HP 15A |
| Air suction capacity | 600 ft³/min | 1,790 ft³/min | 2,760 ft³/min | 3,001 ft³/min | 1941 CFM |
| Bag volume | 60 L (2,12 ft³) | 153 L (5,4 ft³) | 307 L (10,8 ft³) | 400 L (14.13 ft³) | Drum Size -31 Gal |
| Number of air intel | 1 Entry | 2 Entries | 3 Entries | 5 Entries | 3 Entries |
| Bag size | 13 x 25 inches | 18 x 34 inches | 18 x 34 inches | 23-5/8 x | 20″ x 43″ |
| Weight | 73 Lbs | 106 Lbs | 130 Lbs | 242.5 Lbs | 181 lbs |
| Micro rating | 2.5 microns | 2.5 microns | 2.5 microns | 2.5 microns | 1 microns |
