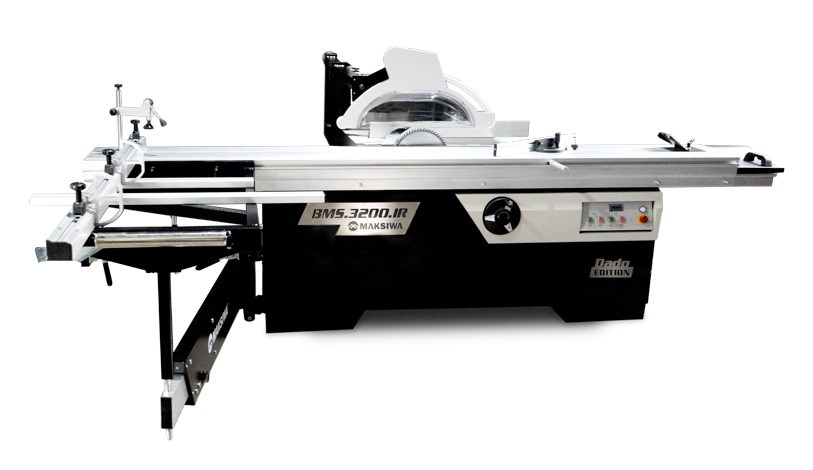

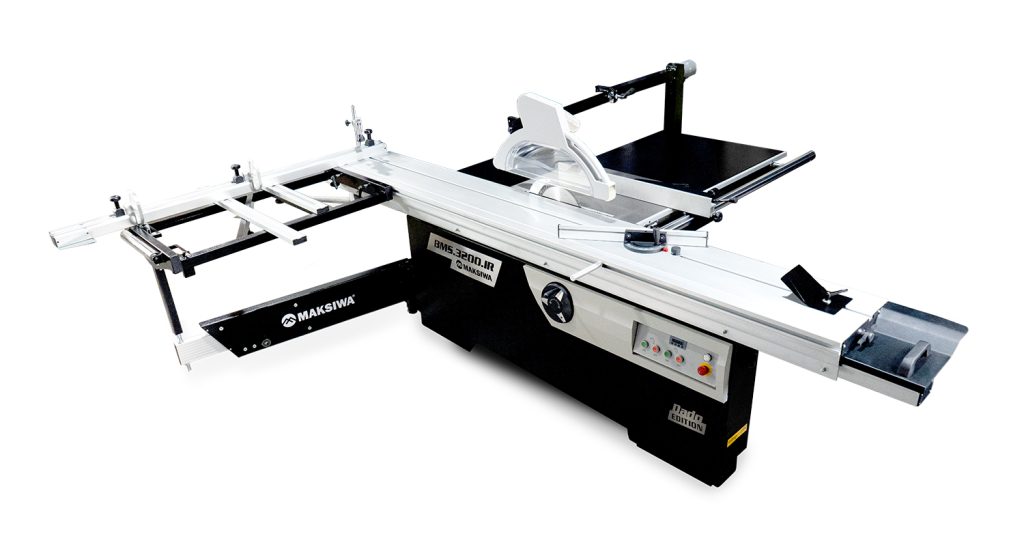

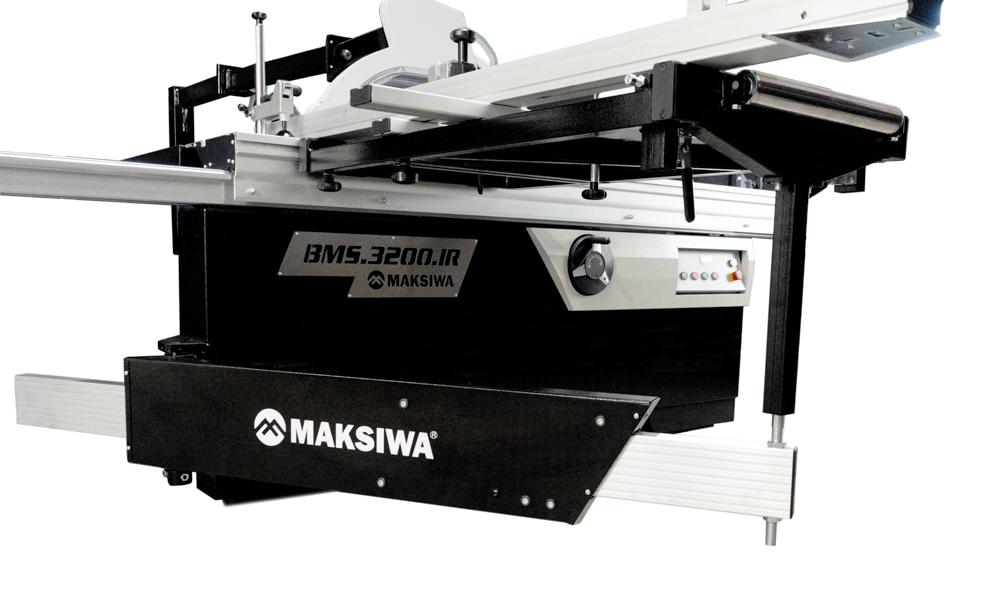

BMS.3200.IR
10' SLIDING PANEL SAW - DADO EDITION
5HP 1 Phase or 3 Phase
•
FULL SIZE
•
DADO BLADE COMPATIBLE
top full size sliding panel saw in its price range.
The Maksiwa BMS.3200.IR Dado Edition is the ultimate 10’ sliding panel saw for precision, power, and versatility.

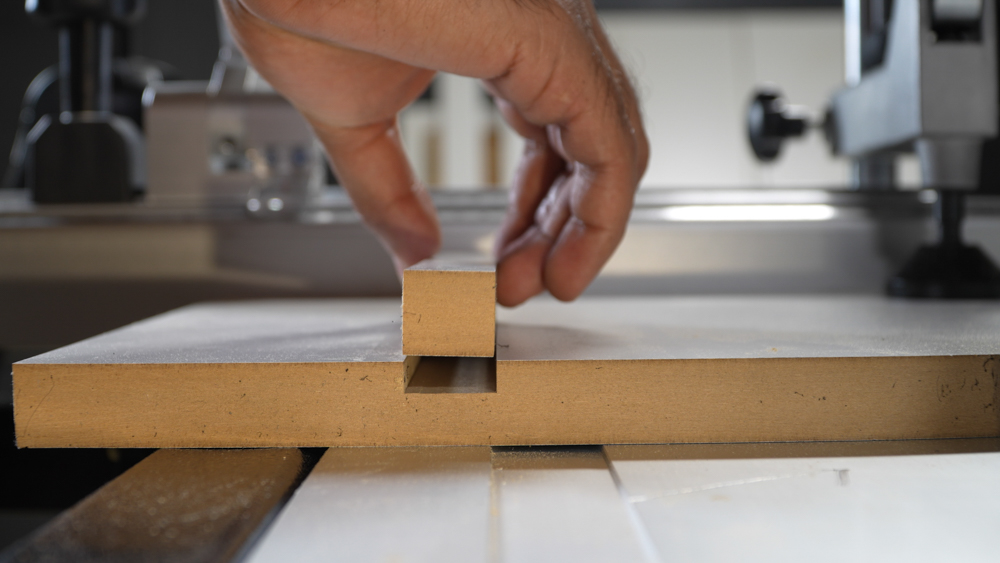

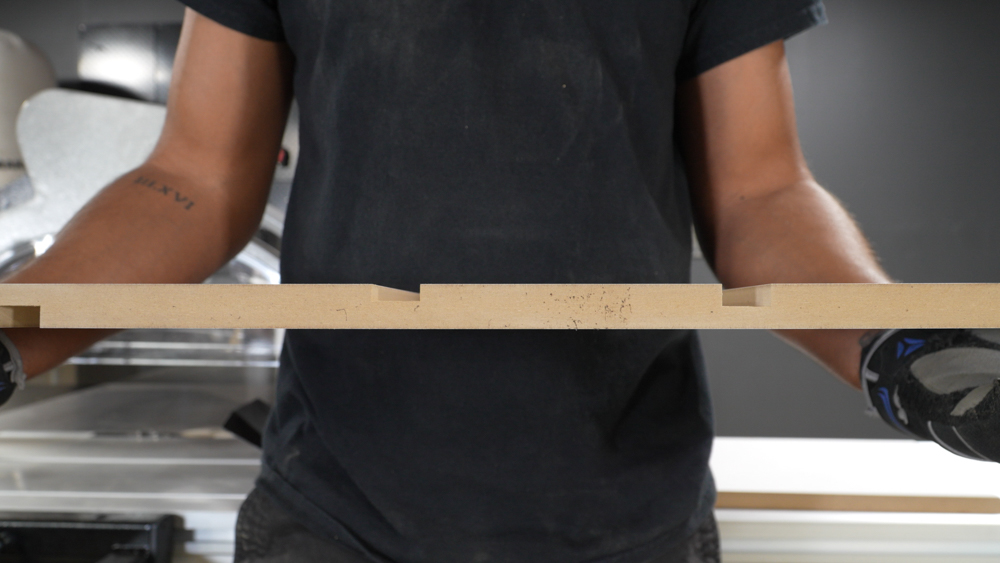

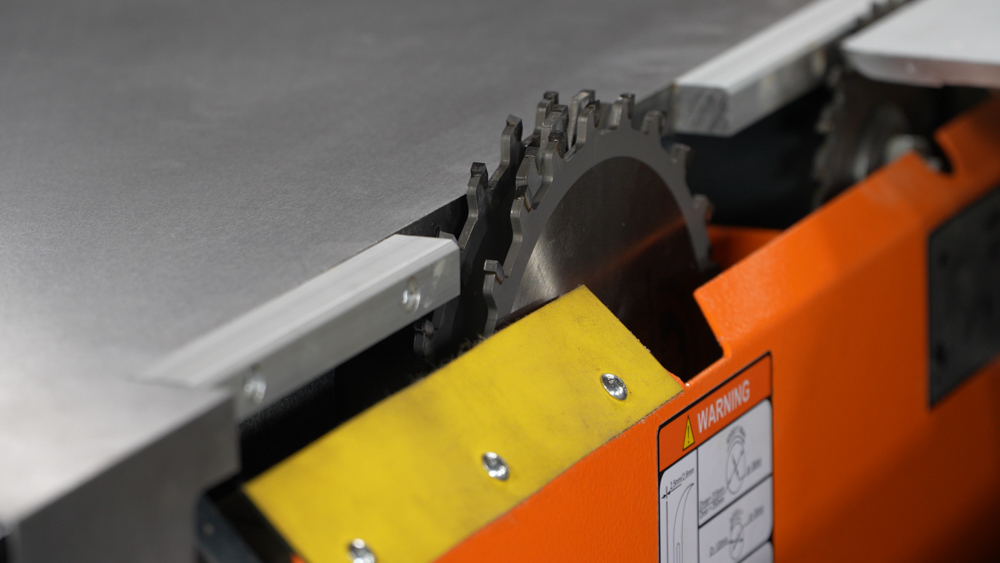

As the newest evolution of our best-selling model, it now includes dado blade compatibility, allowing clean and accurate joinery cuts up to 1-1/4″ with an 8″ blade.
Powered by a 5HP main motor and a 1HP scoring motor, it delivers exceptional strength and smooth performance for demanding jobs.
Available in both 1 Phase and 3 Phase 220V configurations, the BMS.3200.IR adapts perfectly to any professional workshop.

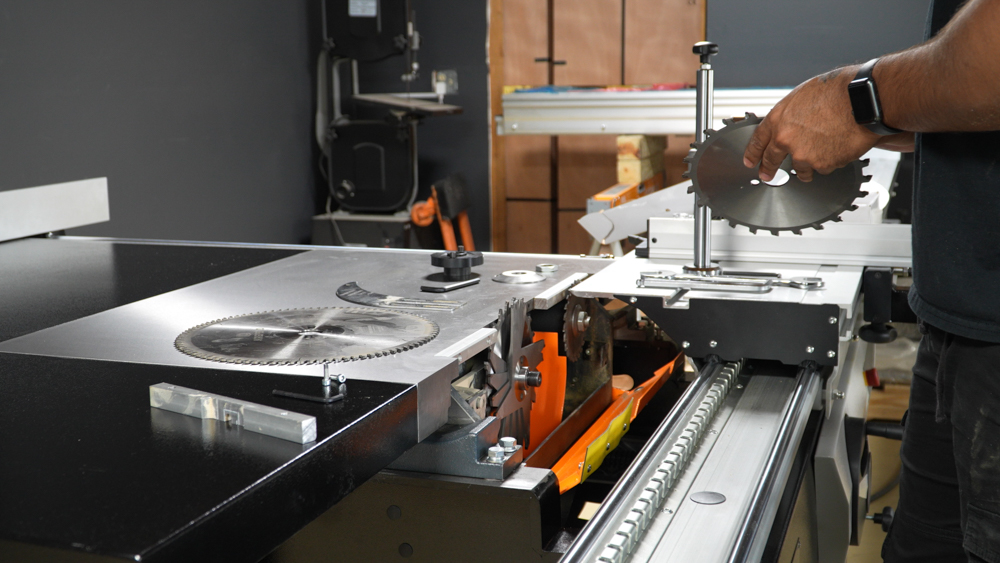

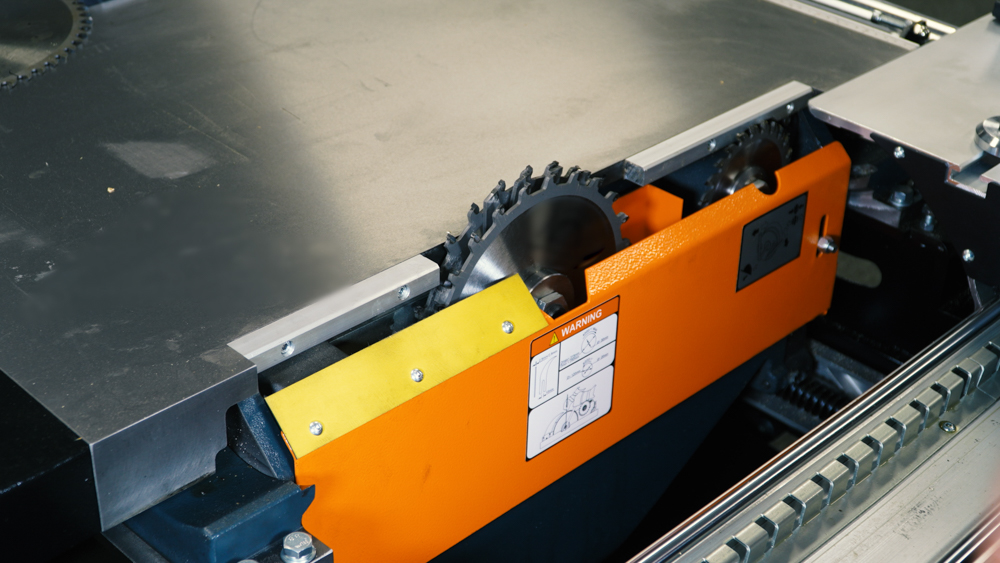

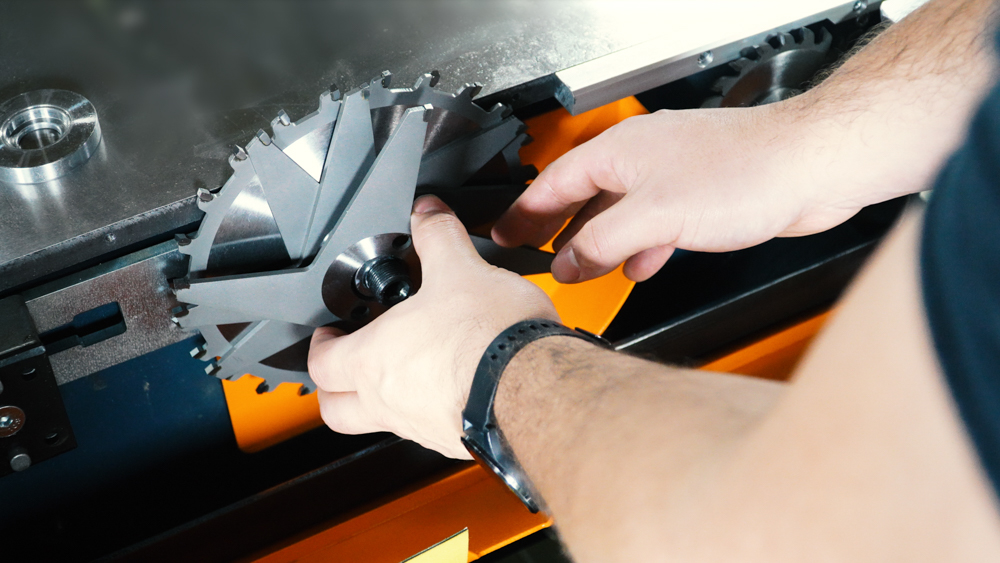

Easy blade access enables quick changeovers between standard and dado setups, maximizing efficiency and productivity.
$8,999
- 5HP 1 Phase or 3 Phase 220V
- 1 HP scoring motor
- Cuts up to 10' long sheets

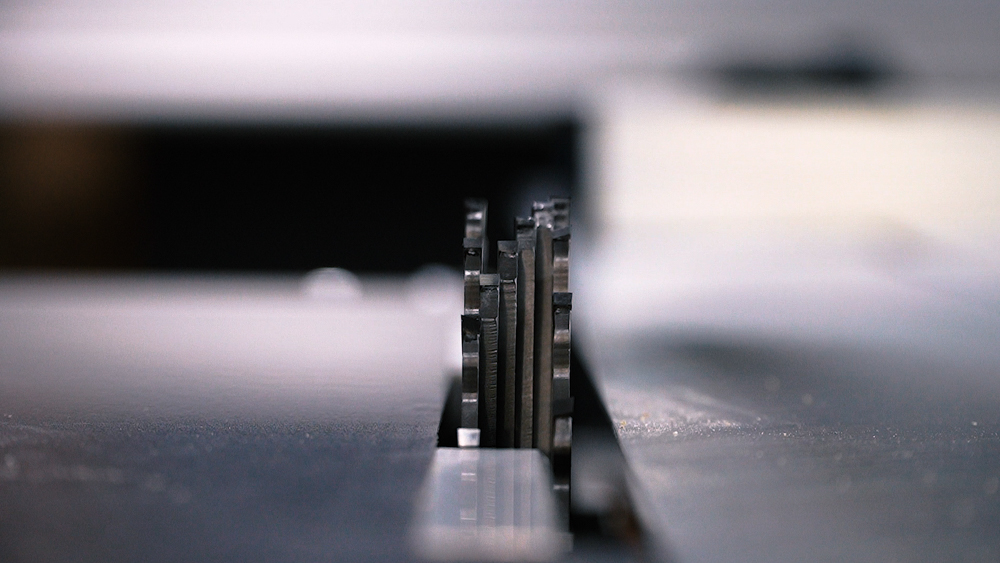

- Dado blade stack compatible
- Rip Fence with micro adjustments
- Dual blade covers
- Integrated dust collection

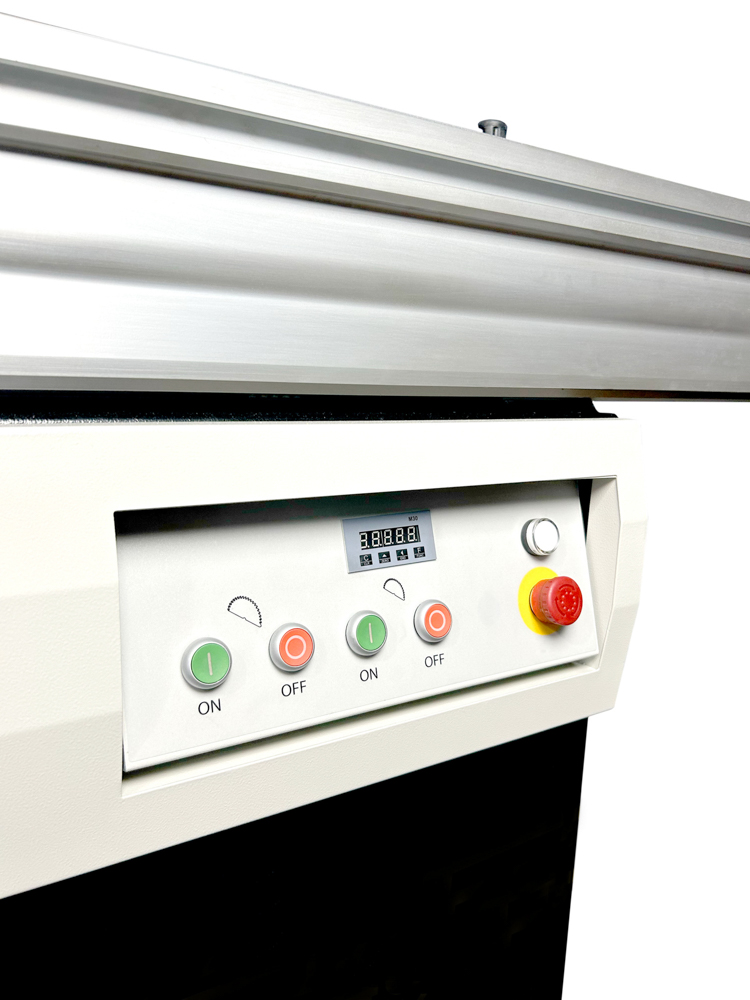

- Digital angle display (90º to 45º)
- One set of blades included (Main 12" and Scoring)
PRECISION, POWER, AND DADO PERFORMANCE IN ONE MACHINE
WHY CHOOSE BMS.3200.IR?
VIDEO
INSTALLATION
2 YEAR
EXTENDED WARRANTY
US BASED
TECH SUPPORT
REAL REVIEWS. REAL RESULTS

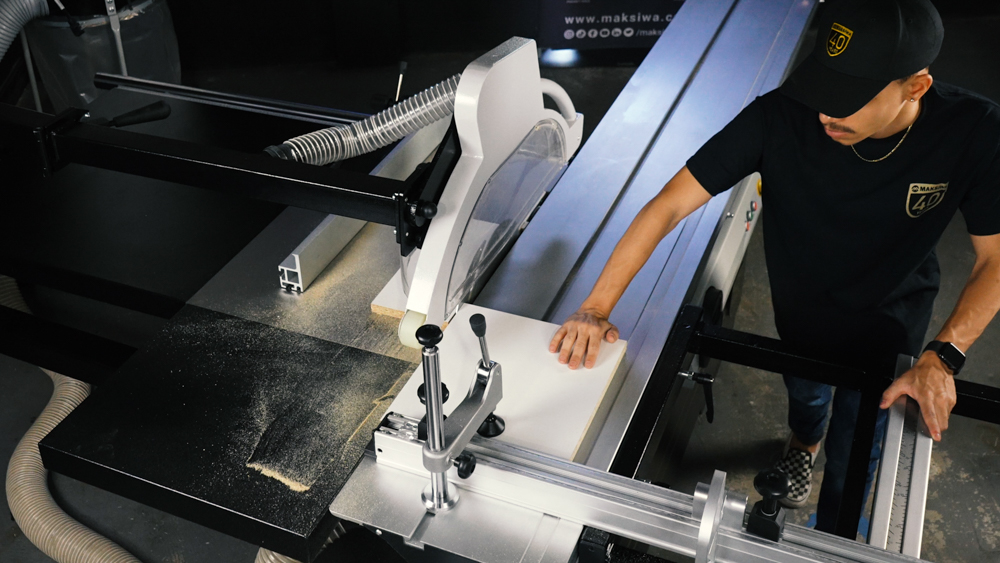

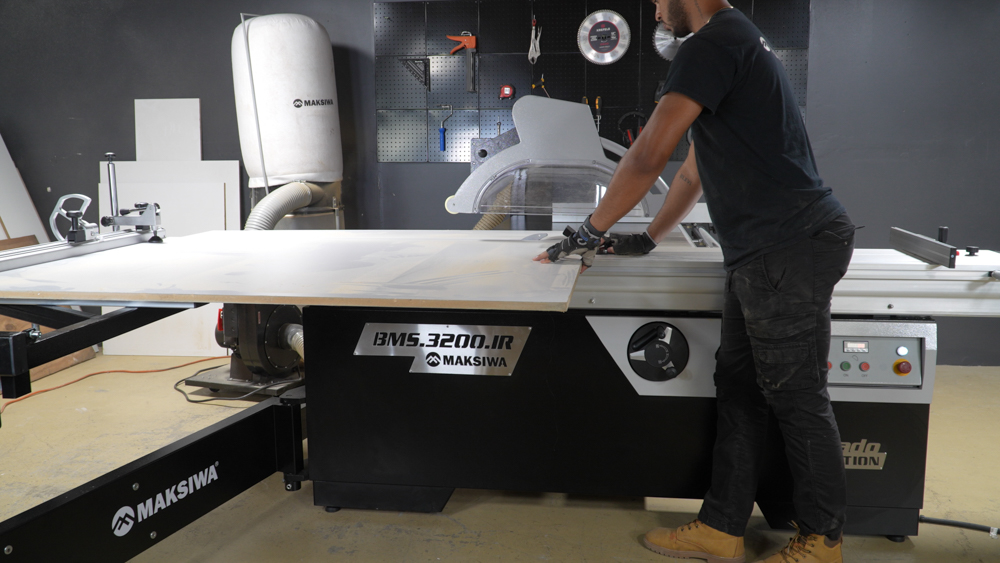

"@maksiwausa slider putting in the work. 10' slide makes it a breeze to get laser strait cuts to break down these grain matched slab door and drawer fronts. Zero tear out with the scoring blade for cross cutting."
"So far both Maksiwa and the dealer have been awesome. The factory sales rep is amazing when it comes to answering questions and being responsive. As to their pricing. A quick google and their pricing is all over the internet from the dealers."
BMS.3200.IR - MACHINE SPECIFICATIONS
| Technical Information | BMS.3200.IR |
|---|---|
| Electrical Specs | 1 Phase 220V 22 Amp 60 Hz
3 Phase 220V 11 Amp 60 Hz |
| Main Motor | 5 HP 4000 RPM 3.7Kw |
| Max Blade Max Diameter | 12" | 305mm |
| Main Blade Arbor | 1-3/16" | 30mm |
| Main Blade Max Cutting Height at 90° | 3-1/2 " | 90mm |
| Main Blade Max Cutting Height at 45° | 2-1/8" | 53mm |
| Dado Width Capacity | 3/4” |
| Max Dado Blade Diameter | 8" |
| Dado Blade Arbor | 1-3/16" | 30mm |
| Scoring Motor | 1 HP 8000 RPM .74Kw |
| Scoring Blade | 4-3/4" | 120mm |
| Scoring Blade Arbor | 3/4" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51" | 1300mm |
| Crosscut Capacity | 126" | 3200mm |
| Crosscut Fence Capacity | Closed: 74-3/4" | Open: 108" |

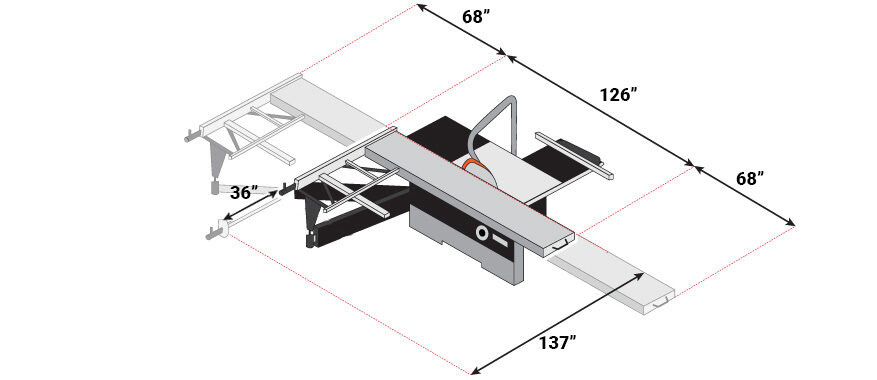

| Machine Dimension | 126" x 137" x 52" |
| Cast Iron Table Dimension | 31-1/2" x 21" x 34-3/4" |
| Sliding Table Dimension | 126" x 14-3/4" |
| Sliding Table Mechanism | Roller Bearings |
| Dust Collection Port (2) | 4" |
| Minimum Dust Collection Requirements | 1000 CFM |
| Weight | 1329 lbs |
| Warranty | 2 Years |
Compare our SLIDERS PANEL SAW

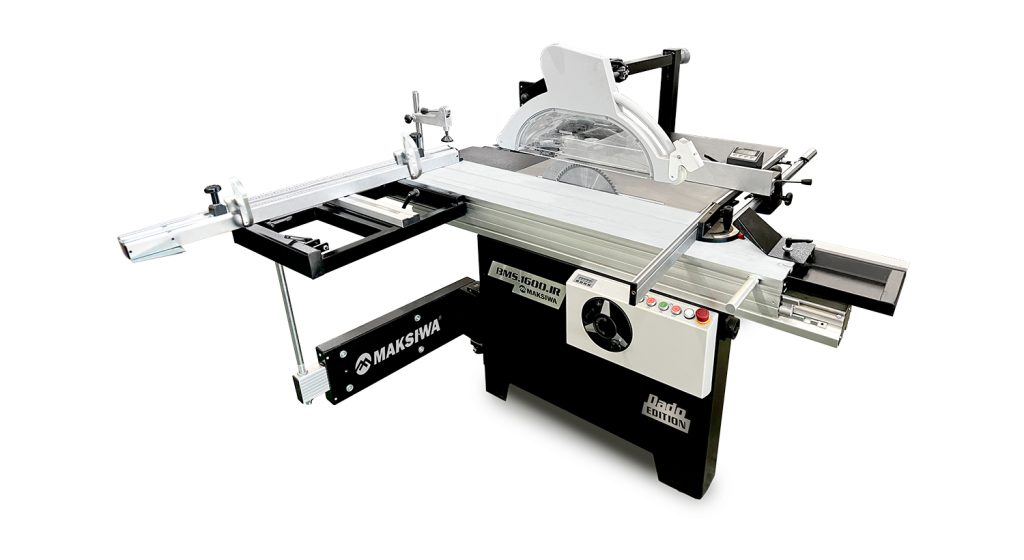

BMS.1600.IR
$6,399.00
- 5' Sliding Panel Saw
- 5 HP 1 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Roller Bearings
BMS.3200.IR
$8,999.00
- 10' Sliding Panel Saw
- 5 HP 1 Phase or 3 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Roller Bearings

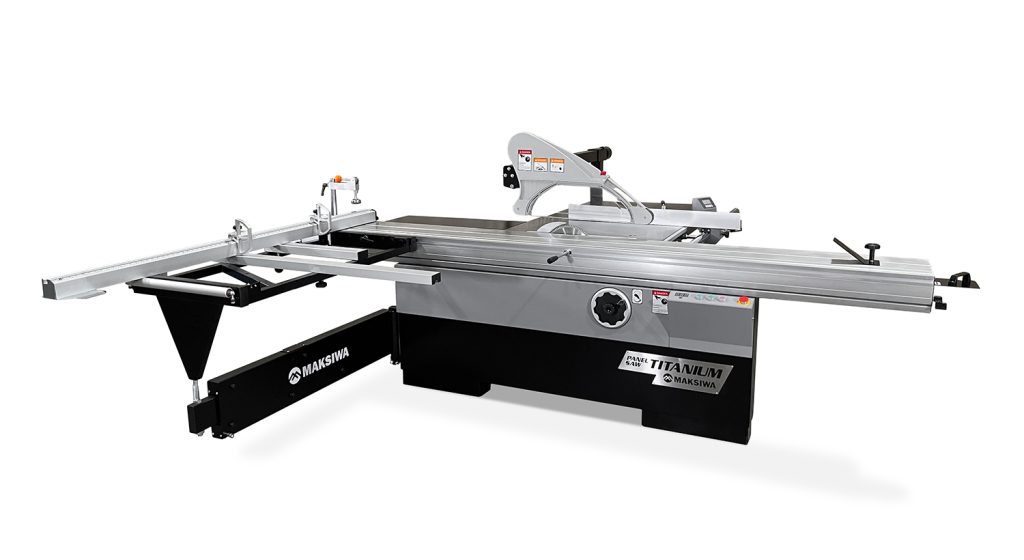

BMT.3200.IR
$10,999.00
- 10' Sliding Panel Saw
- 5 HP 1 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Ball Bearings

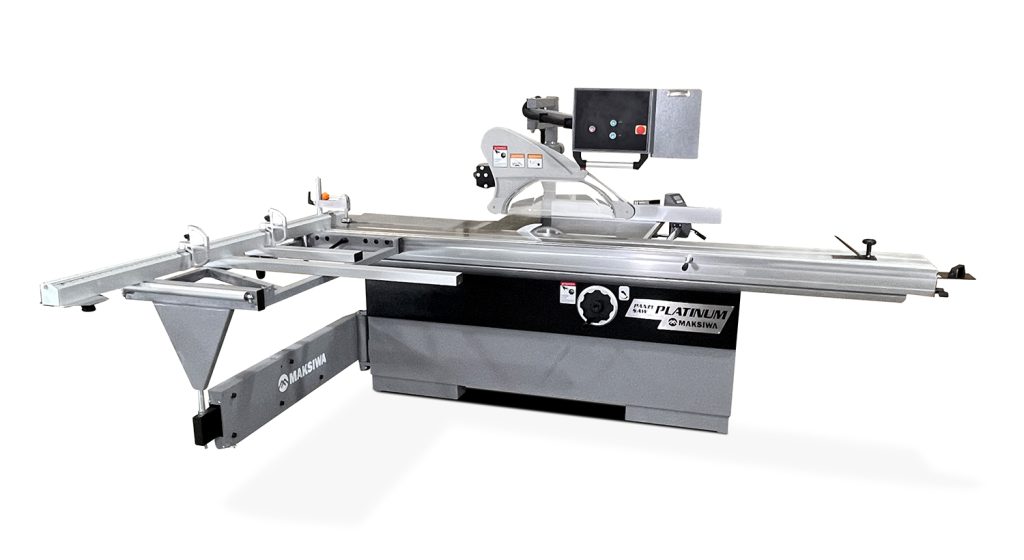

BMP.3200.IR
$12,499.00
- 10' Sliding Panel Saw
- 7.5 HP 3 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Ball Bearings

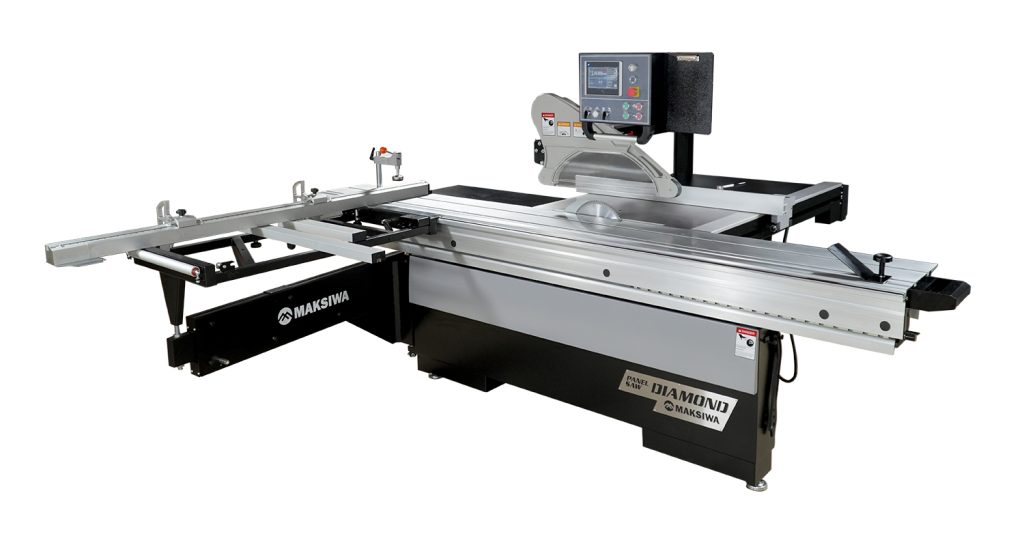

BMD.3200.IR
$20,999.00
- 10' Sliding Panel Saw
- 10 HP 3 Phase
- Dado Stack Capabilities
- CNC Rip Fence
- Digital Rip Fence Readout
- Rip Fence Micro Adj.
- Eye Level Control Panel
- Digital Angle Display
- Motorized Blade Position
- Cuts Up to 10' Sheet
- 14" Main Blade*
- 12" Main Blade
- 3/4" Scoring Blade
- Dual Blade Covers
- Integrated Dust Collection
- Ball Bearings
