Description
Pre-milling & Corner Rounding in a small footprint
- Edge Tape: 0.4-3 mm
- Panel Thickness: 8-50mm
- 1 Phase 220V 60Hz
- Corner Rounding Unit
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor
- Pre-milling Unit 2 HF Motors with Diamond Cutters
- XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
- C.A.S.S – Cleaning Agent Spraying System
- Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
- Automatic feeding Speed 18 ft/min
- Conveyor Chain Feed System for optimum results.
- HF motors controlled by independent electronic converters
- Net Weight 1411 Lbs | 640 kgs
- Compact Design
- Melamine/PVC/ABS/PP
PLC controlled by TFT touch screen

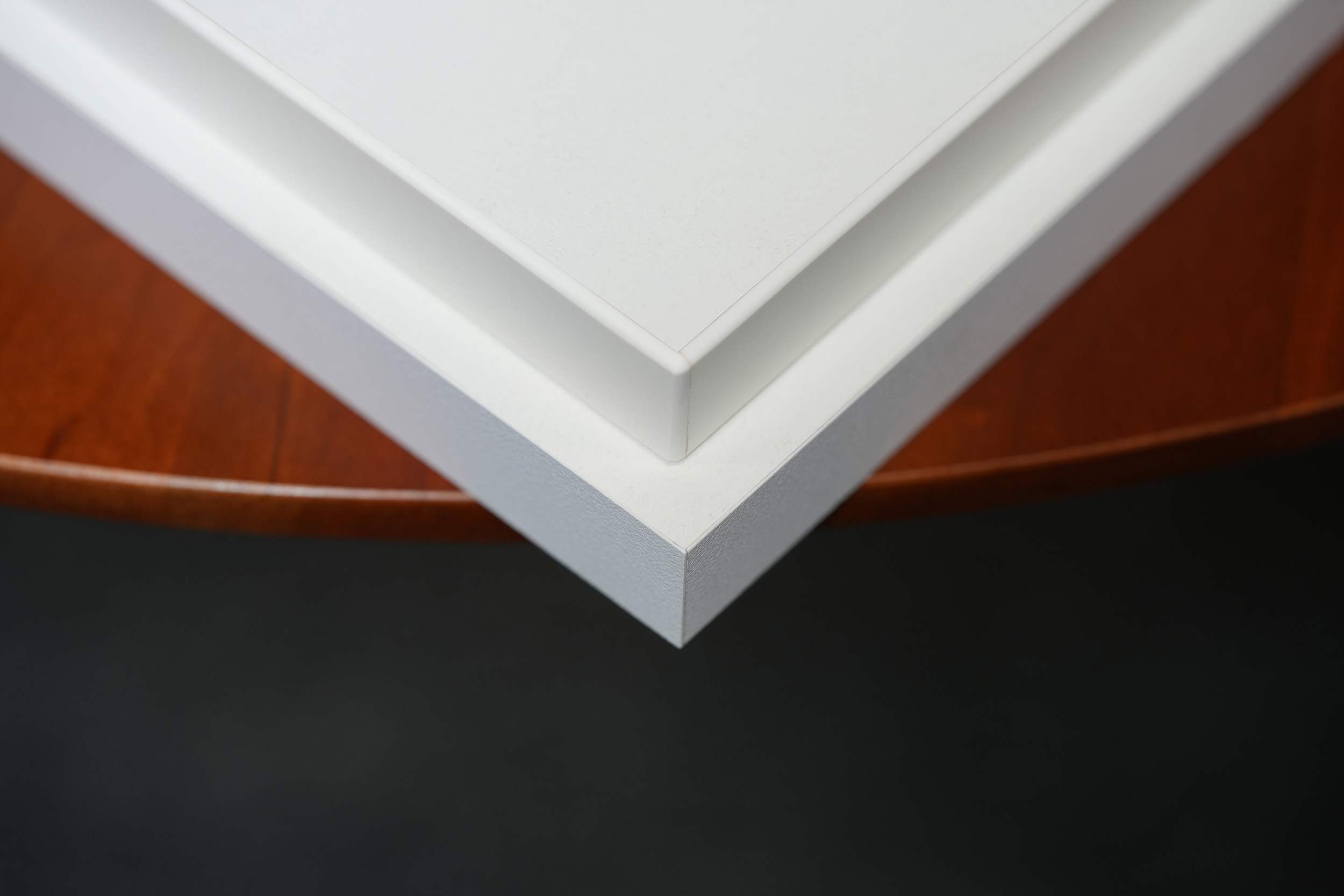

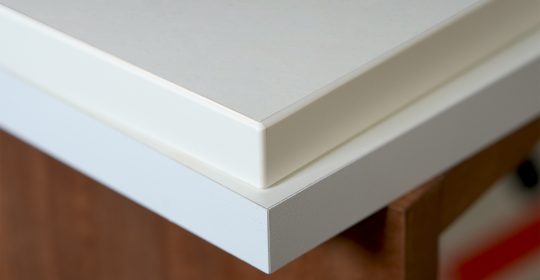

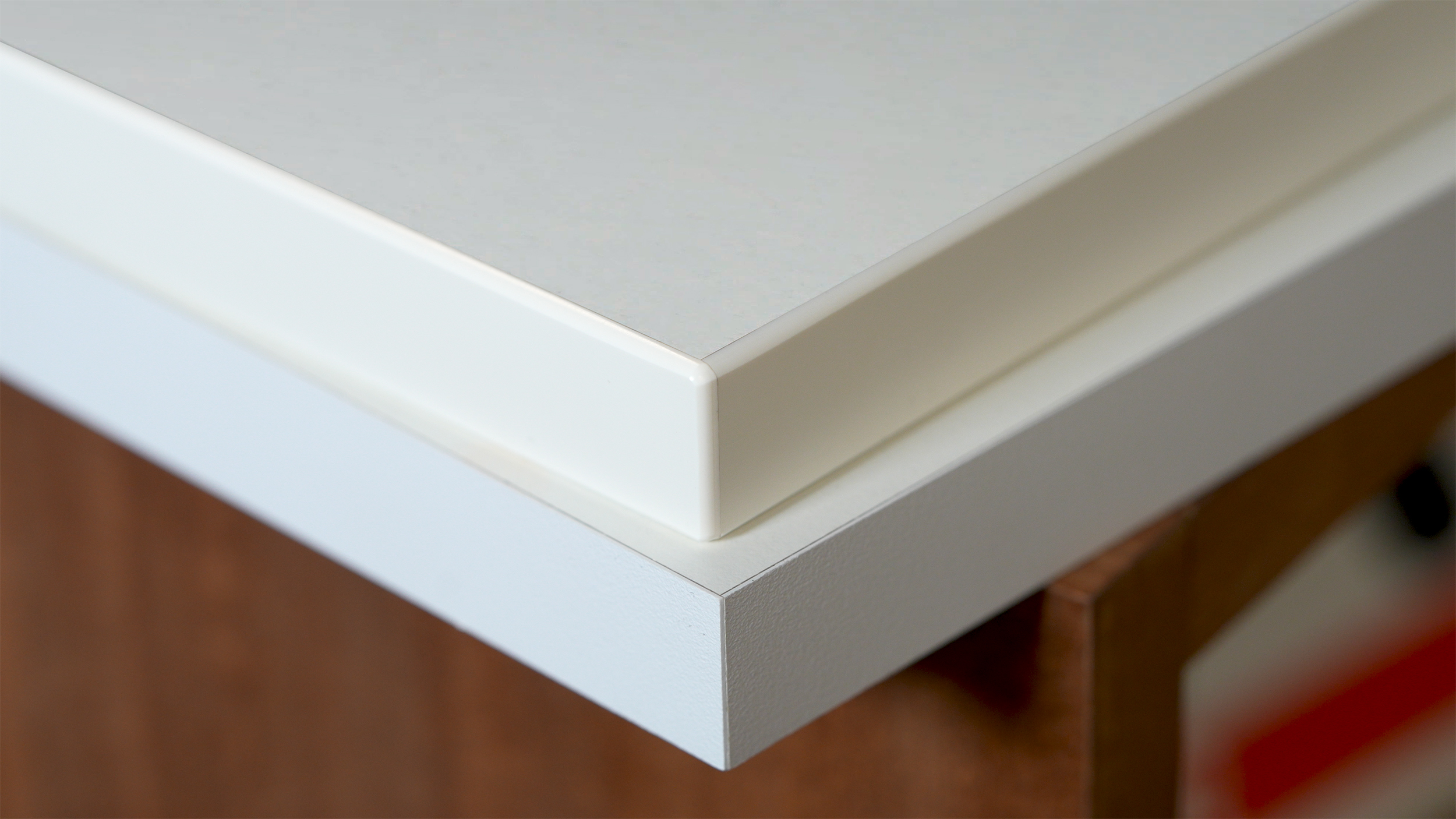

Corner Rounding
Cleaning agent Spray System
Buffing Unit
| CBC.PCR | SAE | METRIC |
|---|---|---|
| Automatic Feeding speed | 18 ft/min | 5.5 m/min |
| Panel thickness Min/Max | 21/64” – 1 31/32” | 8 – 50 mm |
| Max Pre-milling Height | 1” | 30 mm |
| Edgebanding thickness | 0.0157″ – 0.118″ | 0.4-3mm |
| Glue Pot Capacity | 3.3lbs | 1.5 kg |
| Max Edgebanding Height | 2″ | 51 mm |
| Minimum panel width | 3″ | 75 mm |
| Minimum panel length | 7 7/8″ | 200 mm |
| Extendable Panel Support Rail Length | 103″ | 2627 mm |
| Extension table Max Width | 54″ | 1371 mm |
| Size of Dust Collector Ports | 6″ | 150mm |
| Minimum Dust Collection Requirements | 1236 CFM | 2100 m3/h |
| Air Pressure Requirement | 14 SCFM @ 87PSI | 0.7 Mpa |
| Edgebanding coil Support Diameter | 59″ | 1498 mm |
| Recommend Glue Temperature Range | 356°F – 410°F | 180°C – 210°C |
| Max. machine dimensions (LxWxH) | 119”x 40 16/16”x 48. 7/16” | 3026 x 1036 x 1230 mm |
| Net weight | 1411 LBS | 640 KGS |
| Shipping dimensions (LxWxH) | 111” x 30” x 57” | 2820 x 760 x 1448 mm |
| Glue Type | Granulated Hot-Melt EVA / PUR | Granulated Hot-Melt EVA / PUR |
| Electrical Information | 1 Phase 220V 30 Amps 60Hz | 1 Phase 220V 30 Amps 60Hz |
| Motor/Electrical | Specs |
|---|---|
| Electrical Requirement | 1 Phase 220V 40 Amps 60 Hz |
| Conveyer Motor | 60 Hz 1390 RPM .66 kw |
| Top/Bottom Trimmer HFM | 200 Hz 12,000 RPM .27kw |
| End/Corner Rounding Trimmer Motor | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM | 150 Hz 9000 RPM .75/.25Kw |
| Top Buffing Motor | 60 Hz 1680 RPM .11kw |
| Bottom Buffing Motor | 60 Hz 1680 RPM .11kw |
| Sound Rating | 80 dB |
| Technical Info | CBC Flex | CBC.E | CBC.MR | CBC/2.MR | CBC.T | CBC.TPM | CBC.PCR |
|---|---|---|---|---|---|---|---|
| Eletrical specs | 1 Phase 110V 550W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A |
| Feeder Speed | 0-19 ft/min | 0-18 ft/min | 0-26 ft/min | 0-26 ft/min | 0-16ft/min | 21ft/min | 18ft/min |
| Edgebanding Thickness | 0.4 – 1mm | 0.4 – 2mm | 0.4 – 2mm | 0.3 – 2mm | 0.4 – 3mm | 0.4 – 2mm | 0.4 – 3mm |
| Glue Temperature | 130° to 180° C | 130° to 180° C | 130° to 180° C | 130° to 180° C | 180° to 210° C | 180° to 210° C | 180° to 210° C |
| Glue Pot Type | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | High Temp. Granulated Hot-Melt EVA | Granulated Hot-Melt EVA | Granulated Hot-Melt EVA / PUR |
| Workarea | – | 39 3/8″ x 15 3/4″ | 101 3/4″ x 15 3/4″ | 101 3/4″ x 15 3/4″ | 78 3/4″ x 10 2/5″ | 93 1/2″ x 41″ | 119″x40″ |
| Max Edgebanding Height | 1/2″ to 1 7/8″ | 3″ | 3″ | 3″ | 2″ | 1″ | 2″ |
| Panel Thickness | 1/2″ to 1 7/8″ | 3″ | 3″ | 3″ | 12-45mm | 10-45mm | 8-50mm |
| Weight | 21 Lbs | 114 Lbs | 242.5 Lbs | 330 lbs | 1025 Lbs | 1191 Lbs | 1411 Lbs |
| Machine Dimension | 11″ x 14″ x 13 1/2″ | 47″ x 31″ x 42″ | 101 3/4″ x 35 1/2 x 43″ | (101 3/4″) 58″ x 43″ x 43″ | 112″ x 63″ x 51″ | 93. 1/2″ x 41″ x 53″ | 119″ x 41″ x 49″ |
| End Trim | – | Manual | Manual | Manual | Pneumatic | Pneumatic | Pneumatic |
