Description
Your work area 3x times longer.
WORK AREA
Whenever opened the extension tables will give you 3x the regular work area of the machine.
6 PARAMETERS

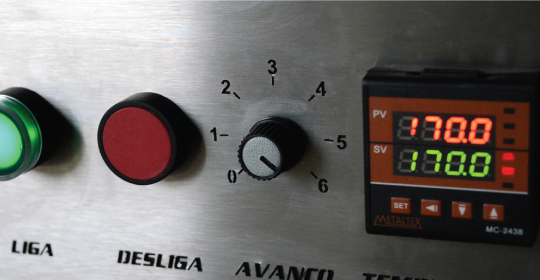

With 6 speeds to chose from the feeder switch will work on your desired velocity.
| Technical Information | CBC.MR |
|---|---|
| Electrical specs | 1 Phase 110 V 1500 W 60Hz |
| Motor specs | 24 V 10 Amp |
| Manual Feeding Speed | 0 – 26ft/min |
| Max edgebanding Height | 3″ |
| Edgebanding Coil Support Diameter | 19 1/2″ |
| Tape Thickness | 0.4 – 2mm |
| Edgebanding Material | Melamine /PVC/ABS/PP/ VEENER non-fleeced |
| Glue Pot Capacity | 1.5 lbs |
| Recommended Glue Temperature Range | 130° to 180º C |
| Glue Pot Tape | Granulated Hot-Melt |
| (Extensions) Machine Dimension LxWxH | (101 3/4″) 48 1/2″ x 35 1/2″ x 43″ |
| Shipping Dimension | 43″ x 30″ x 50″ |
| Weight | 240 Lbs. |
| Warranty | 2 years |
| Technical Info | CBC Flex | CBC.E | CBC.MR | CBC/2.MR | CBC.T | CBC.P |
|---|---|---|---|---|---|---|
| Eletrical specs | 1 Phase 110V 550W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A |
| Feeder Speed | 0-19 ft/min | 0-18 ft/min | 0-26 ft/min | 0-26 ft/min | 0-16ft/min | 23ft/min |
| Edgebanding Thickness | 0.4 – 1mm | 0.4 – 2mm | 0.4 – 2mm | 0.3 – 2mm | 0.4 – 3mm | 0.4 – 3mm |
| Glue Temperature | 130° to 180° C | 130° to 180° C | 130° to 180° C | 130° to 180° C | 180° to 210° C | 180° to 210° C |
| Glue Pot Type | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | High Temp. Granulated Hot-Melt EVA | Granulated Hot-Melt EVA / PUR |
| Workarea | – | 39 3/8″ x 15 3/4″ | 101 3/4″ x 15 3/4″ | 101 3/4″ x 15 3/4″ | 78 3/4″ x 10 2/5″ | 112″x34″ |
| Max Edgebanding Height | 1/2″ to 1 7/8″ | 3″ | 3″ | 3″ | 2″ | 2″ |
| Panel Thickness | 1/2″ to 1 7/8″ | 3″ | 3″ | 3″ | 12-45mm | 10-50mm |
| Weight | 21 Lbs | 114 Lbs | 242.5 Lbs | 330 lbs | 1025 Lbs | 1719 Lbs |
| Machine Dimension | 11″ x 14″ x 13 1/2″ | 47″ x 31″ x 42″ | 101 3/4″ x 35 1/2 x 43″ | (101 3/4″) 58″ x 43″ x 43″ | 112″ x 63″ x 51″ | 112″ x 156″ x 49″ |
| End Trim | – | Manual | Manual | Manual | Pneumatic | Pneumatic |
Instructions
Download the Manual
The Glue Recommendation
Download The Glue Recommendation
