Industrial CNC Precision for Large-Format Panel Production

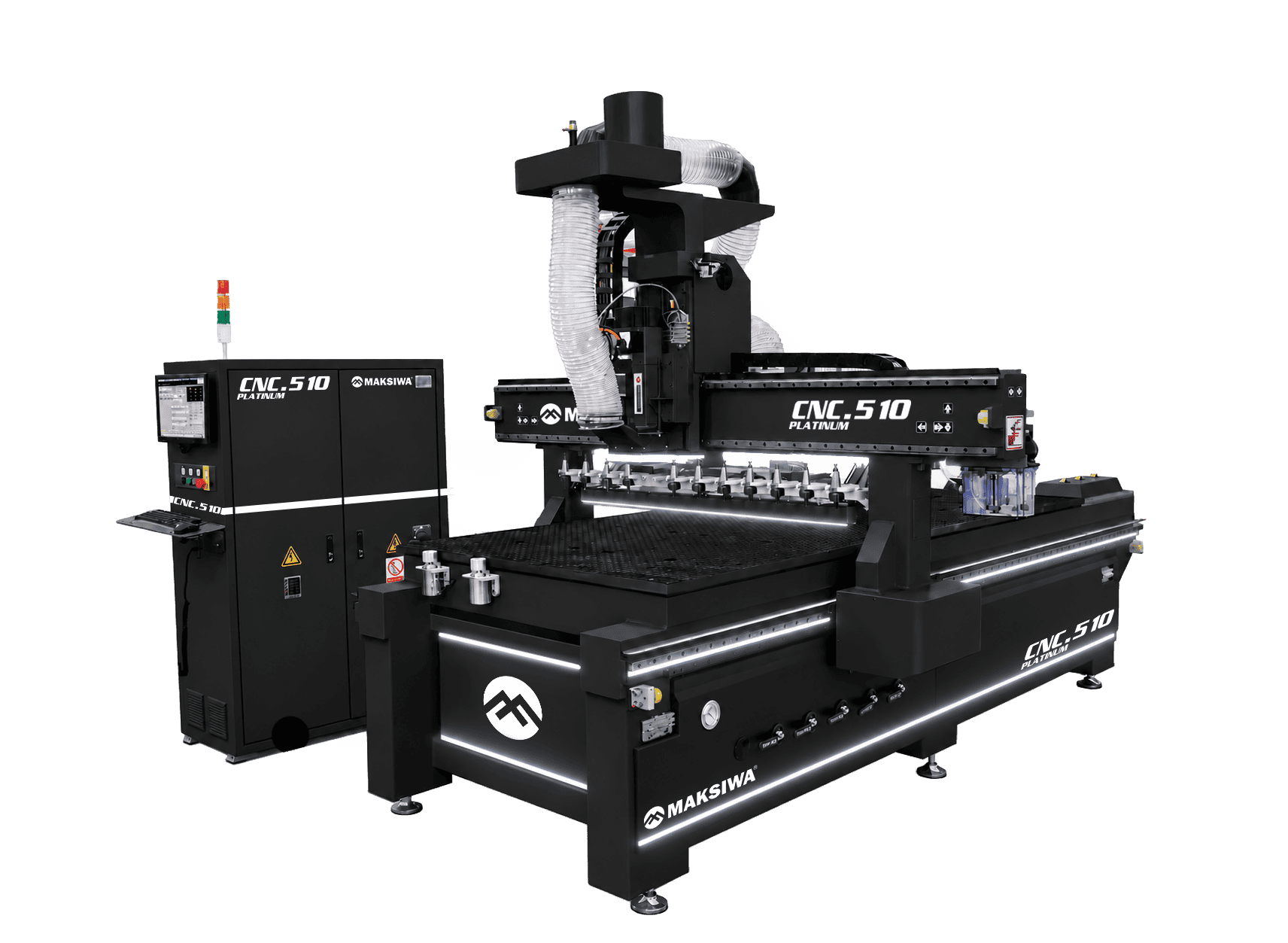

DISCOVER THE CNC.510 PLATINUM
$44,990
Fill out the form below to receive more
information about our new CNC.510 Platinum router
The Maksiwa CNC.510 Platinum is an industrial nesting CNC router designed for precision panel processing and professional cabinet production. With a powerful 12HP spindle, automatic tool changing, a 6-zone vacuum table, and industrial servo technology, it delivers reliable performance and efficient machining for demanding woodworking applications.
- Cabinet & Flat Door
- Molded Door
- 12HP (9kW) Air-Cooled ATC Spindle
- Up to 24,000 RPM
- 10-Position Automatic Tool Changer
- 5′ × 10′ Processing Capacity
- 6-Zone Vacuum TableDual 7.5kW Vacuum Pumps
- Industrial Servo Motors
- Heavy-Duty Welded Steel Frame
- Industrial Control System
- Helical Rack & Pinion X/Y Axes
- Ball Screw Z Axis
- Automatic Tool Measurement
- 4 Pneumatic Positioning Cylinders
- Automatic Lubrication System
- Pneumatic Dust Hood
| Technical Information | CNC.510 |
|---|---|
| Electrical Specs | 3 Phase 220V 60Hz |
| Spindle | Single 9.0 kW (approx. 12 HP) Air-cooled ATC spindle |
| Spindle Speed | Up to 24,000 RPM |
| Tool Changer | 10 Position ISO 30 Automatic System |
| Working Area | 5′ × 10′ |
| Material Thickness | 9–68 mm |
| Total Tool Length | 123 mm (including the holder) |
| Processing Accuracy | ± 0.15 mm |
| Repeatability | ± 0.05 mm |
| Linear Guide Rails | 20/25 mm industrial linear guide rails |
| X/Y-Axis Transmission | Helical rack and pinion |
| Z-Axis Transmission | Ball screw |
| Vacuum Table | 6-zone vacuum table |
| Vacuum Pumps | 2 × 7.5 kW vacuum pumps |
| Positioning System | 4 pneumatic positioning cylinders |
| Tool Measurement | Automatic tool measurement system |
| Lubrication | Automatic lubrication system |
| Dust Collection | Pneumatic dust hood |
| Materials & Applications | Any type of wood, cabinet making, plastic, veneers, high-density foam, and non-ferrous metals when used with a cooling system |
| Warranty | 2 years |
- Portable
- Foldable legs
- Digital temperature control
- Low temperature Pellet Glue
- Adjustable glue flow
- Glue recycling system
- Adjustable guide
- Tape alignment
- Emergency stop button
| Technical Information | CNC.510 |
|---|---|
| Electrical Specs | 3 Phase 220V 60Hz |
| Spindle | Single 9.0 kW (approx. 12 HP) Air-cooled ATC spindle |
| Spindle Speed | Up to 24,000 RPM |
| Tool Changer | 10 Position ISO 30 Automatic System |
| Working Area | 5' x 10' |
| Material Thickness | 9 - 68 mm |
| Total Tool Length | 123 mm (including the holder) |
| Processing Accuracy | ± 0.15 mm |
| Repeatability | ± 0.05 mm |
| Linear Guide Rails | 20/25 mm industrial linear guide rails |
| X/Y-Axis Transmission | Helical rack and pinion |
| Z-Axis Transmission | Ball screw |
| Vacuum Table | 6-zone vacuum table |
| Vacuum Pumps | 2 × 7.5 kW vacuum pumps |
| Positioning System | 4 pneumatic positioning cylinders |
| Tool Measurement | Automatic tool measurement system |
| Lubrication | Automatic lubrication system |
| Dust Collection | Pneumatic dust hood |
| Materials & Applications | Any type of wood, Cabinet making, Plastic, Veneers, High-density foam, Non-ferrous metals (when used with a cooling system) |
| Machine Dimension | 00" x 00" x 00" |
| Weight | 00 lbs |
| Warranty | 2 years |
