Description
Easy to use, fast and precise!

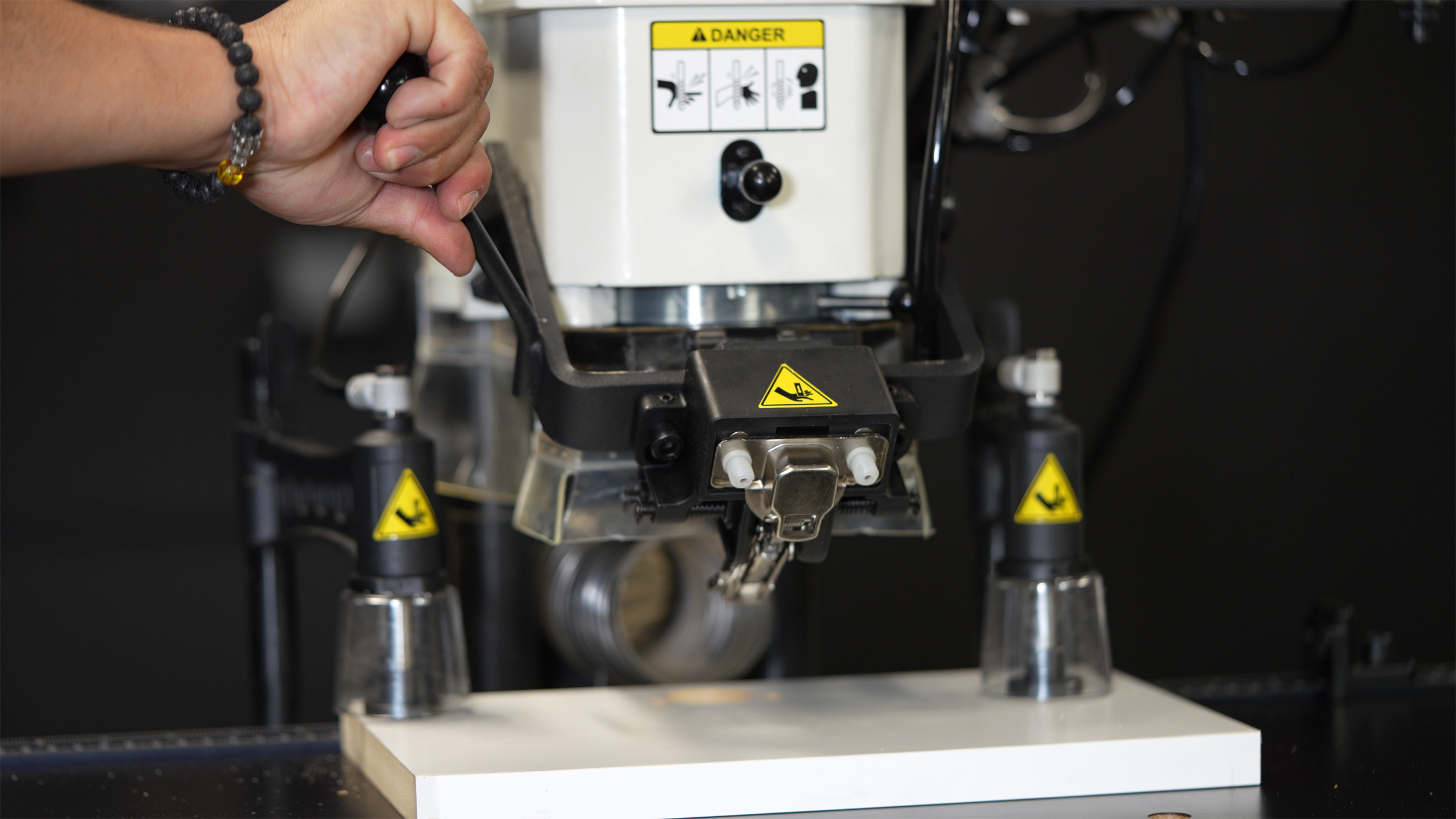

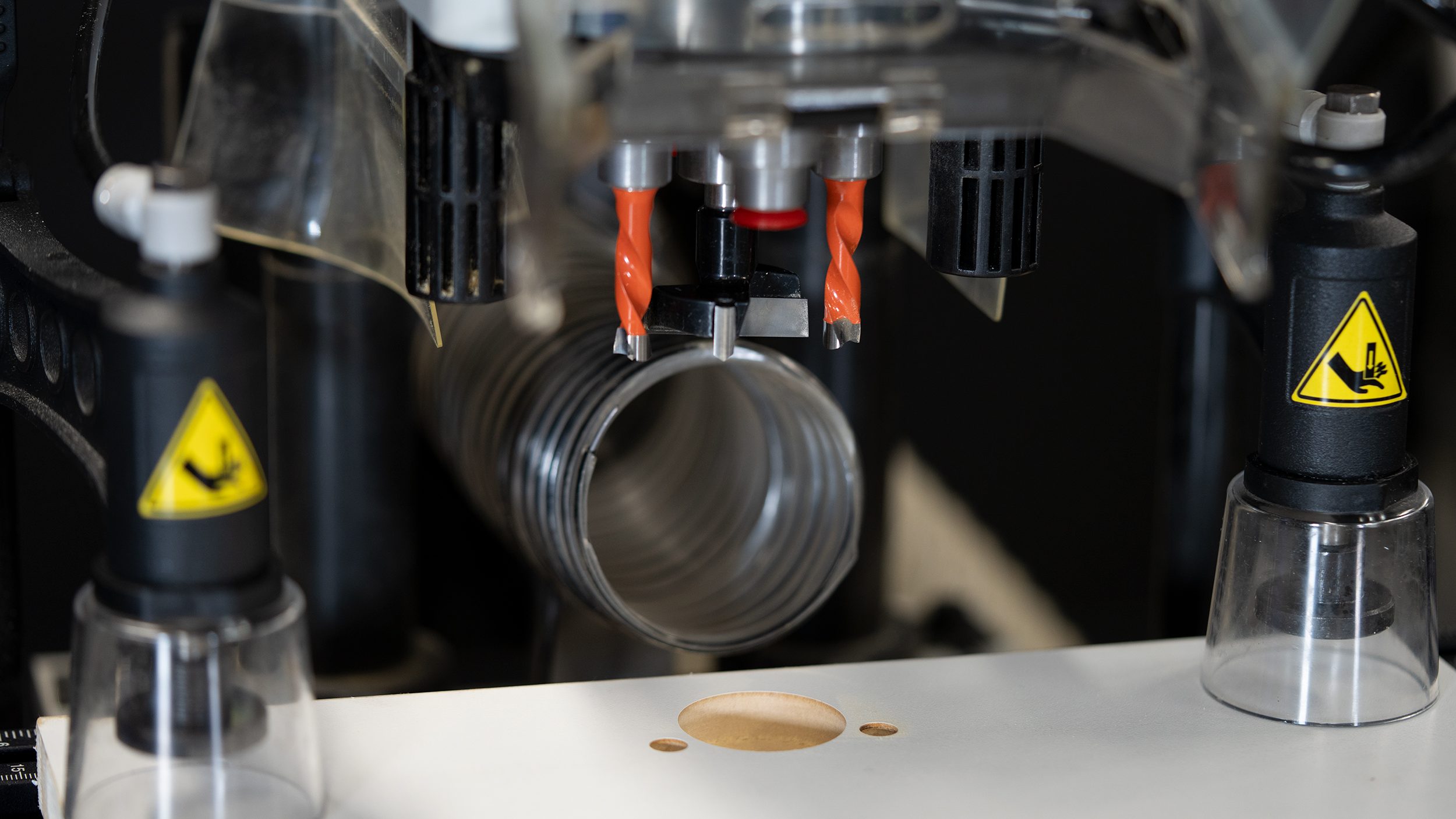

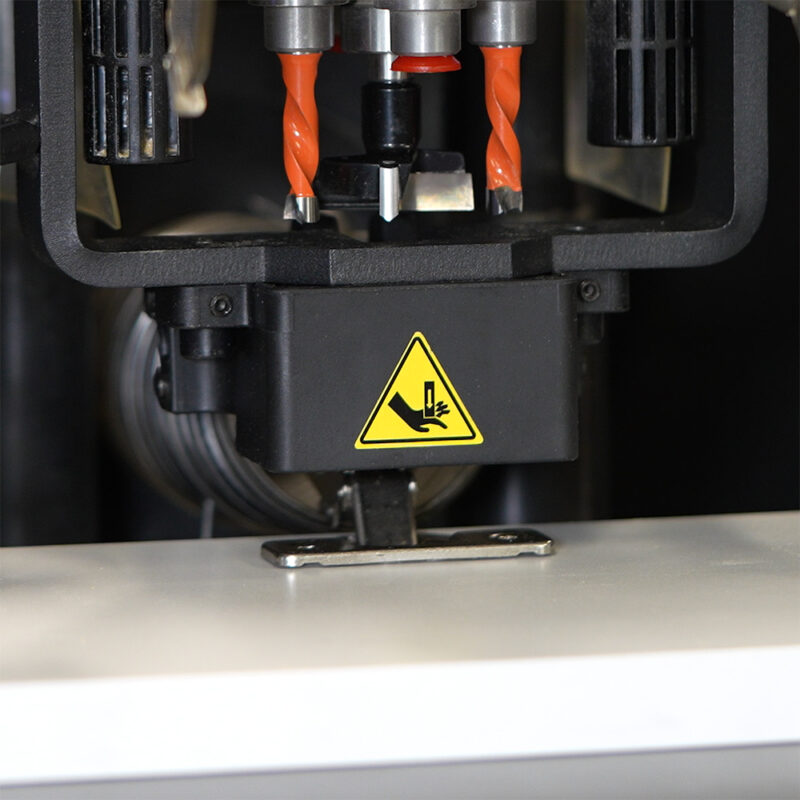

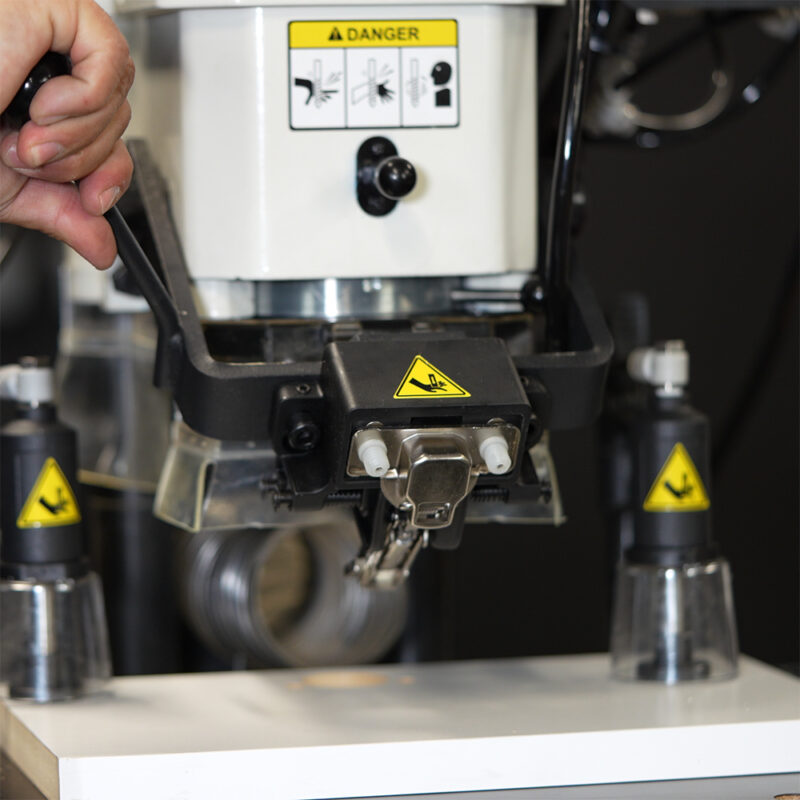

All-in-one Boring & Insertion

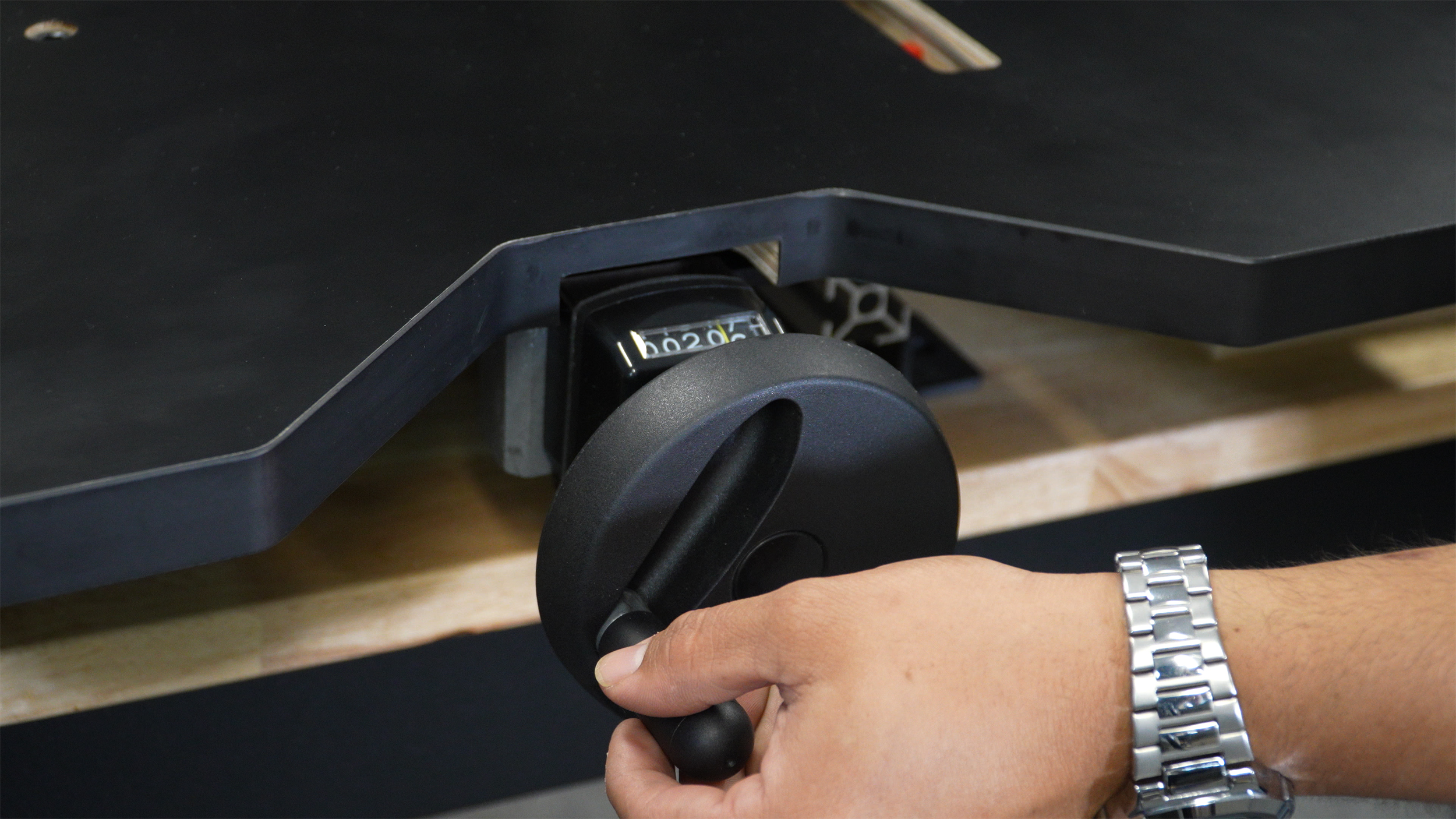

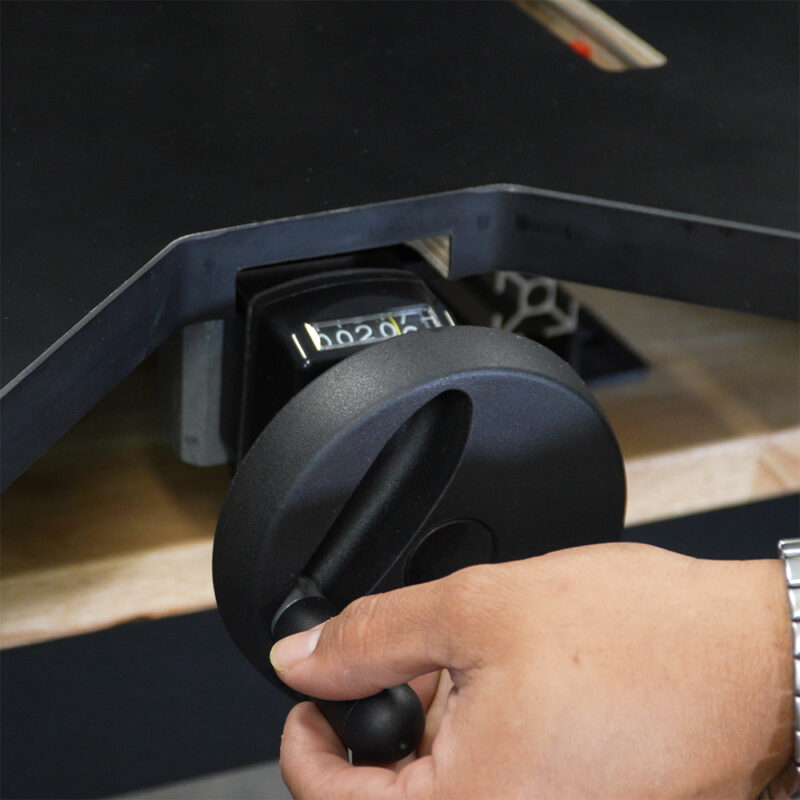

Quick-set Boring Distance
Multiple Patterns

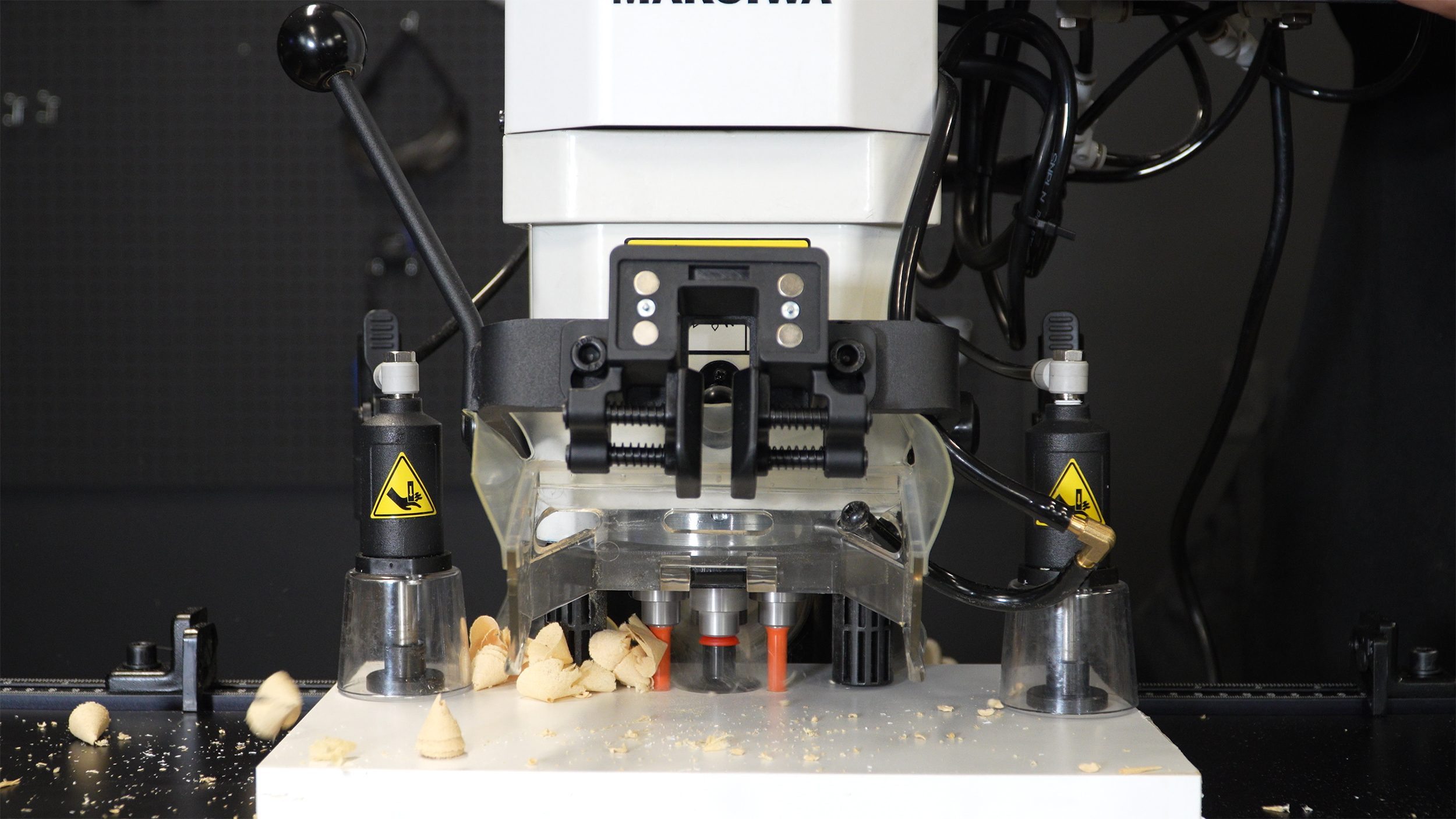

Dust Collection
| Technical Information | HBM.1000 |
|---|---|
| Electrical specs | 1 Phase – 110V 13.6 AMPS / 220V 6.8 AMP |
| Motor Specs | 1.5 HP / 1.1 KW 3400 RPM |
| Table Size | 18” x 31 – 1/2” | 460 x 800 MM |
| Machine table height | 5 – 3/8” 136MM |
| Machine table depth | 2- 3/4” 70MM |

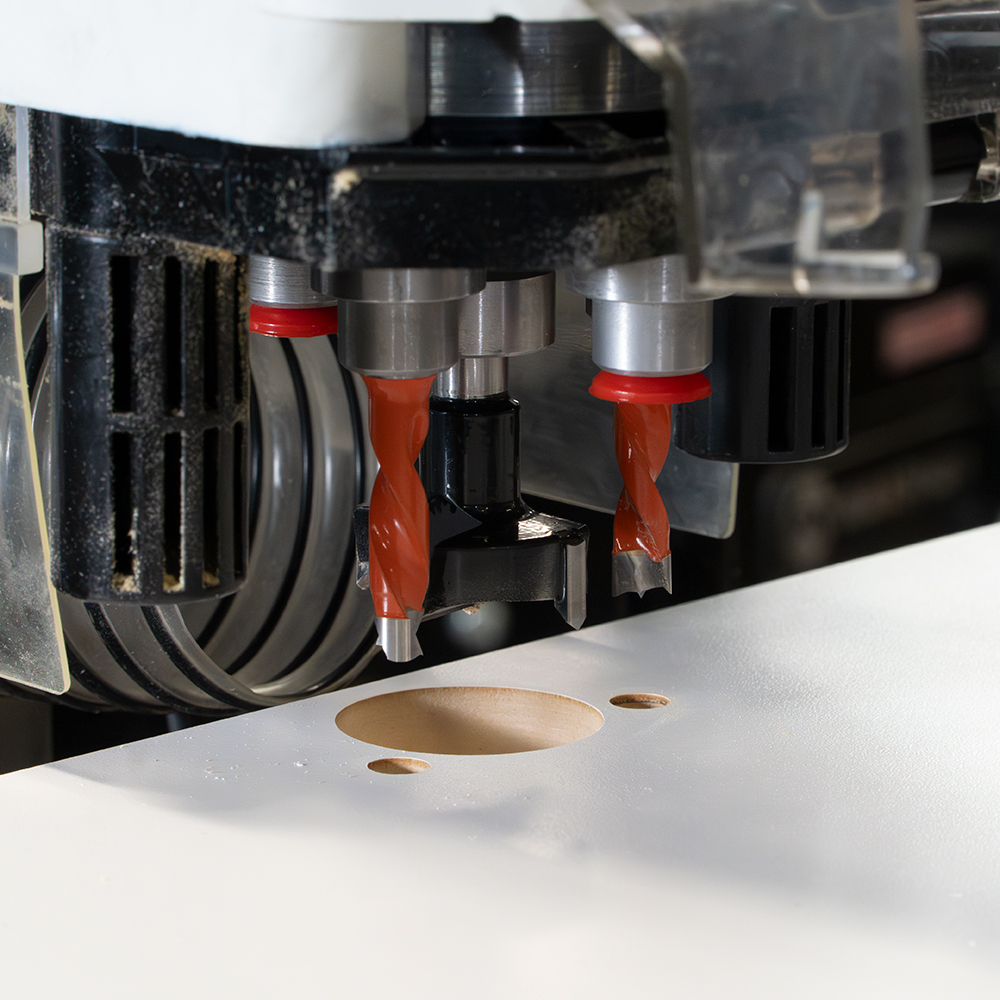

| Hinge boring Bit Diameter | Carbide Tipped – 35mm |
| Hinge boring Bit Rotation | Right |
| Hinge boring shank | 10MM |
| Hinge boring Length | 57MM |
| Drill bits Diameter | Carbide Tipped – 8MM |
| Drill boring Bits Rotation | Left |
| Drill boring shank | 10 MM |

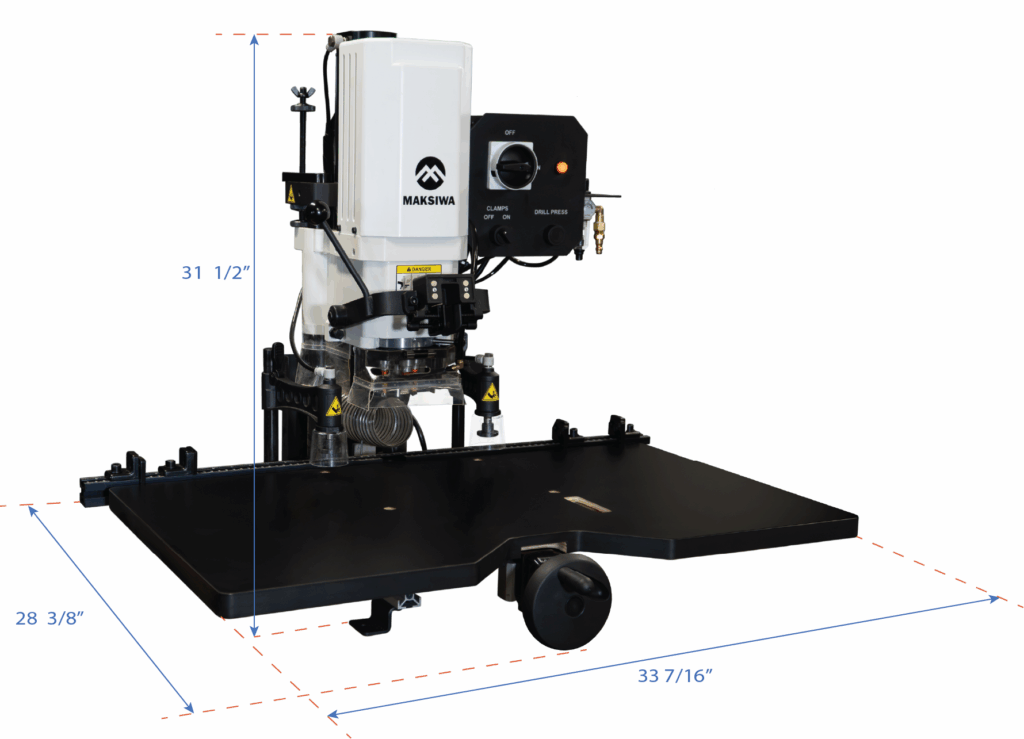

| Machine Dimensions (LxWxH) | 33 7/16”x 28 3/8”x31 1/2” | 850mmx720mmx800mm |
| Number of Stops | 2 Left / 2 Right |
| Maximum Depth of Stroke | 4 – 5/16” | 110MM |
| Boring distance center spindle | 0 – 2 3/4” | 0 – 70 MM |
| Air requirement | 90 PSI – 3 SCFM |
| Machine Weight | 50Kg 110LBS |
| Avg Noise emissions | 78dB |

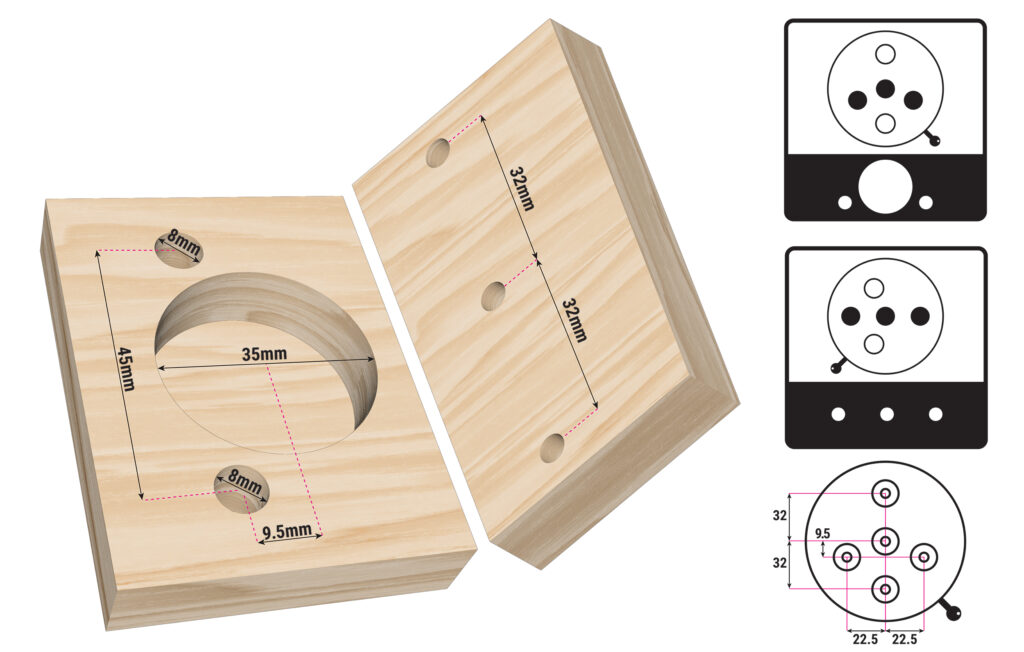

HINGE BORING PATTERNS
*Boring patterns may vary depending on machine setup and drill bit diameter.
