CBC.PCR
Edgebander Platinum Corner Rounding

CORNER ROUNDING

•

HIGH FREQUENCY MOTORS

•

INDUSTRIAL GRADE

Industrial-grade performance with corner rounding finish.

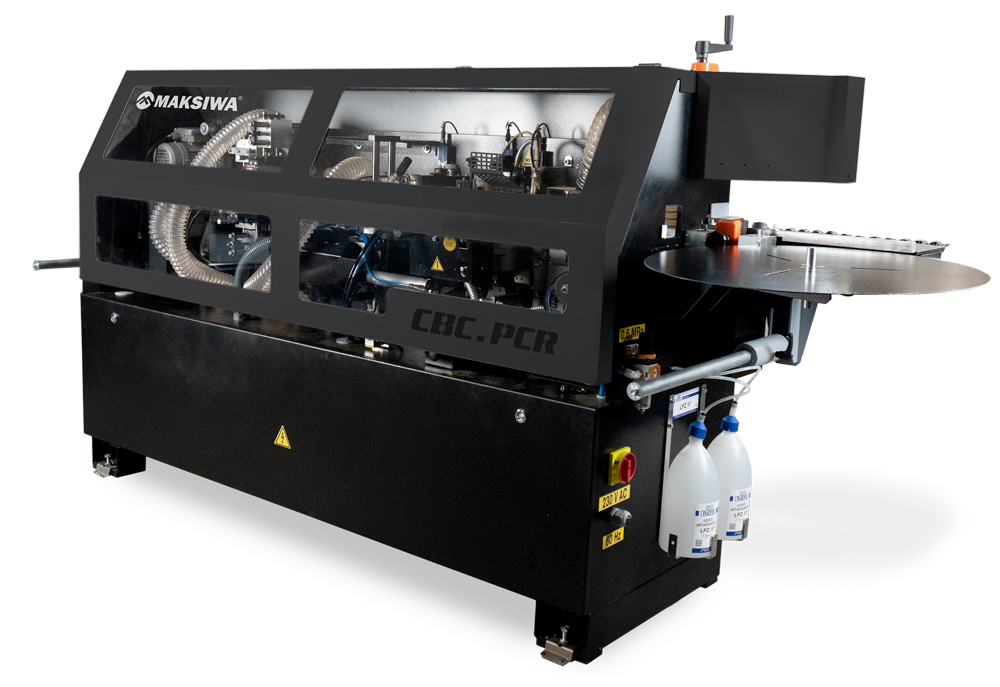

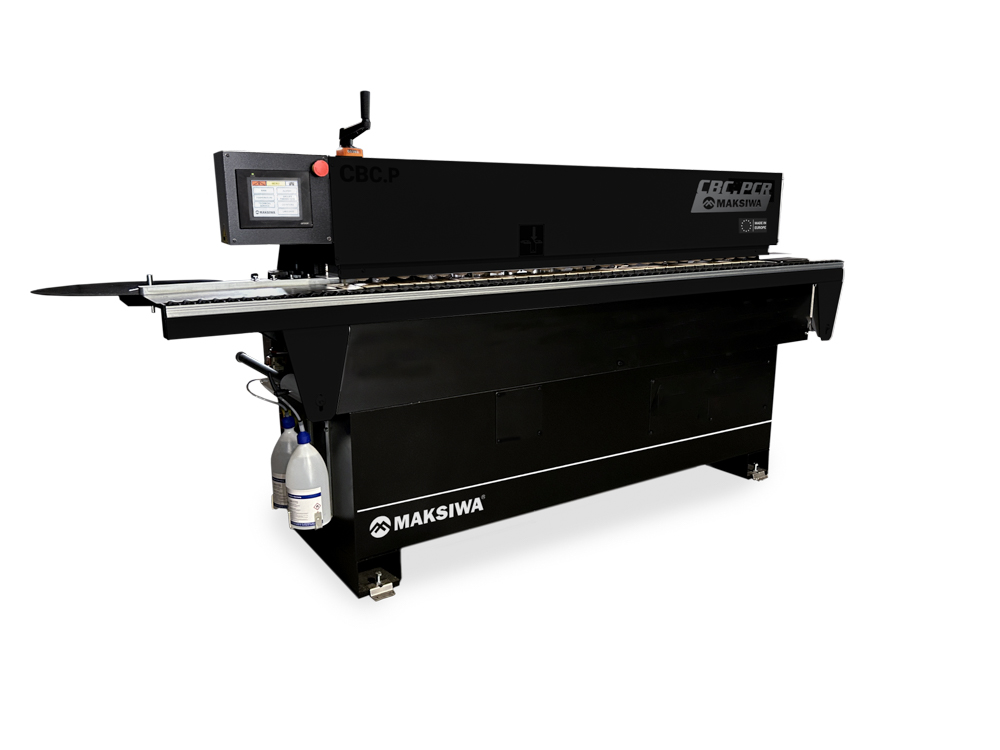

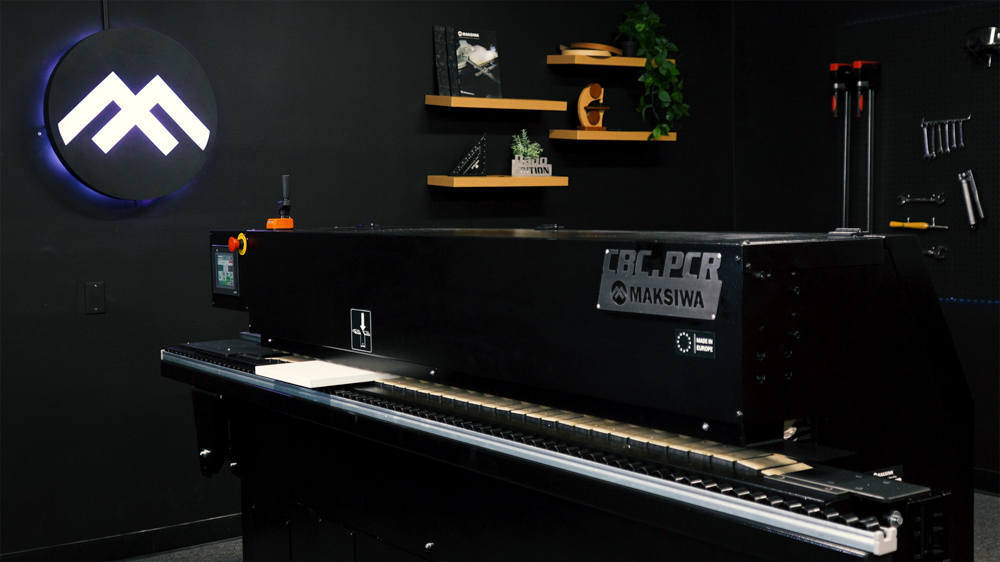

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade results with corner rounding for a flawless panel finish.

Equipped with high-frequency motors, pre-milling, buffing, and a cleaning agent spray system, it ensures a superior edge every time.

The XMELT glue pot system supports both EVA and PUR adhesives with efficient drainage, while the user-friendly PLC touchscreen allows full control of speed, temperature, and operations.

The automatic dust collector activates as needed, maintaining a clean and efficient workspace without manual operation.

$34,900

REQUEST A QUOTE
FINANCING
Leave a Review
CBCPCR-web-01
CBCPCR-web-19
CBCPCR-web-03
CBCPCR-web-18
CBCPCR-web-17
CBCPCR-web-02
CBCPCR-web-16
CBCPCR-web-15
CBCPCR-web-14
CBCPCR-web-13
CBCPCR-web-11
CBCPCR-web-10
CBCPCR-web-09
CBCPCR-web-08
CBCPCR-web-07
CBCPCR-web-01
CBCPCR-web-19
CBCPCR-web-03
CBCPCR-web-18
CBCPCR-web-17
CBCPCR-web-16
CBCPCR-web-02
CBCPCR-web-15
CBCPCR-web-14
CBCPCR-web-13
CBCPCR-web-11
CBCPCR-web-10
CBCPCR-web-09
CBCPCR-web-08
CBCPCR-web-07
  • Heavy Duty Industrial Grade Machine
    Built with reinforced metal structures and high-strength joints to support continuous production environments. Designed to improve durability, reduce wear, and maintain performance during high workload operation.

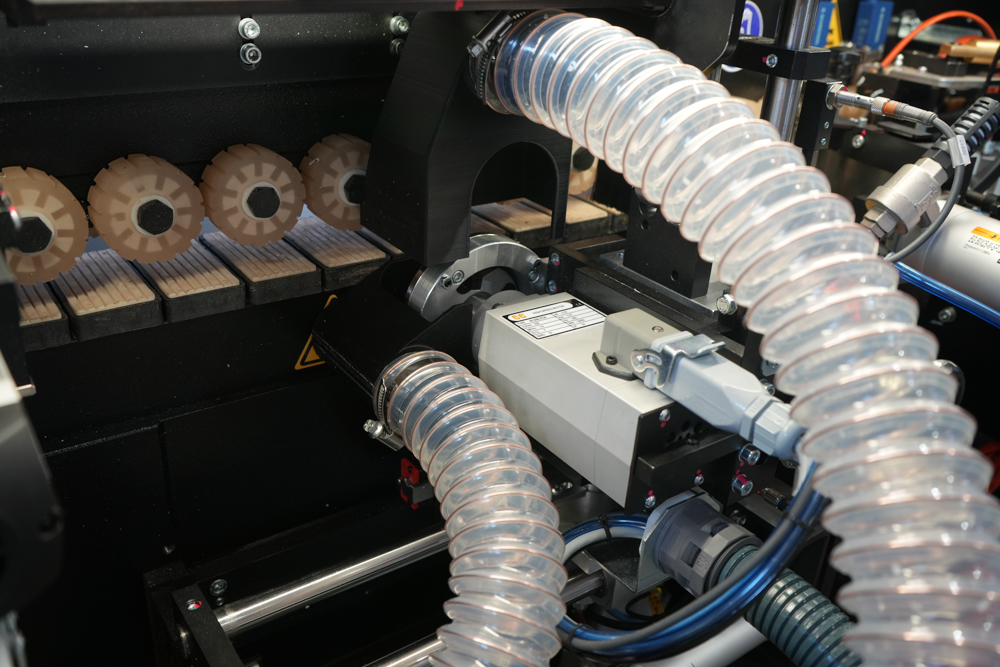

  • High Frequency Motors
    Provide faster, smoother, and more consistent cutting and trimming performance. Helps deliver superior edge finishing quality with improved precision.
  • Corner Rounding

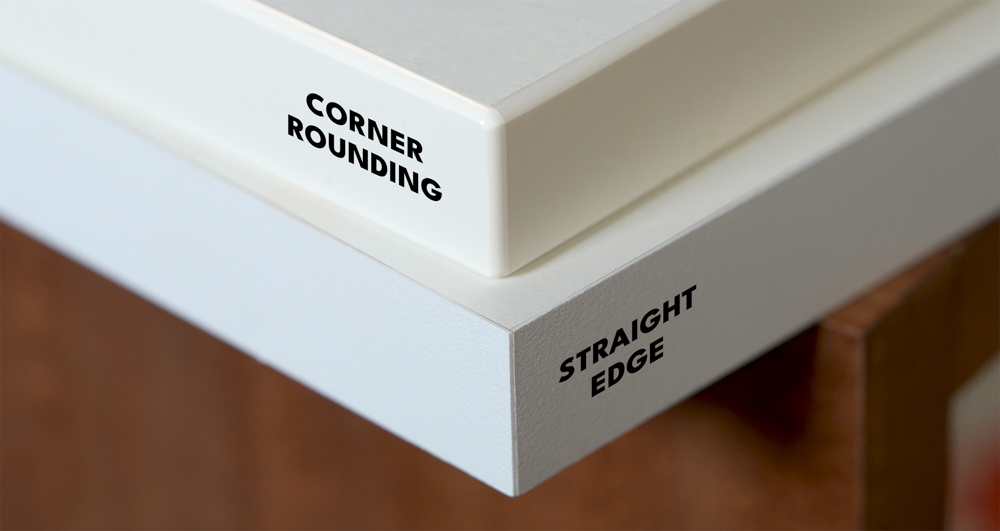

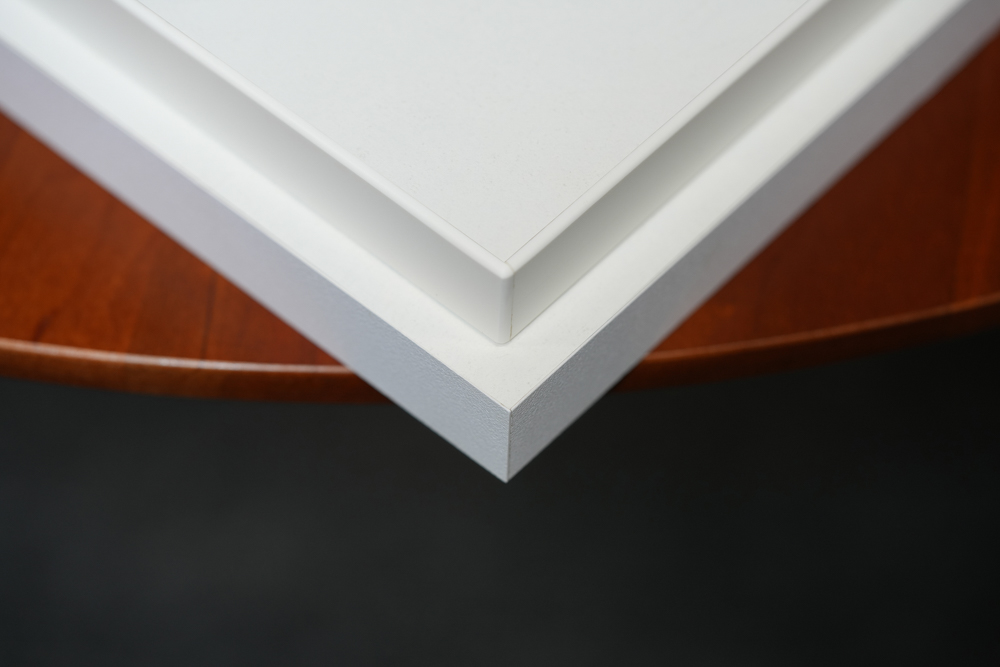

    Corner rounding provides a rounded finish on all four corners of the edge-banded side for a smoother appearance. Unlike vertical rounding, this process removes sharp corner profiles. Also allows for optional standard straight edge finishing.
  • Pre-milling

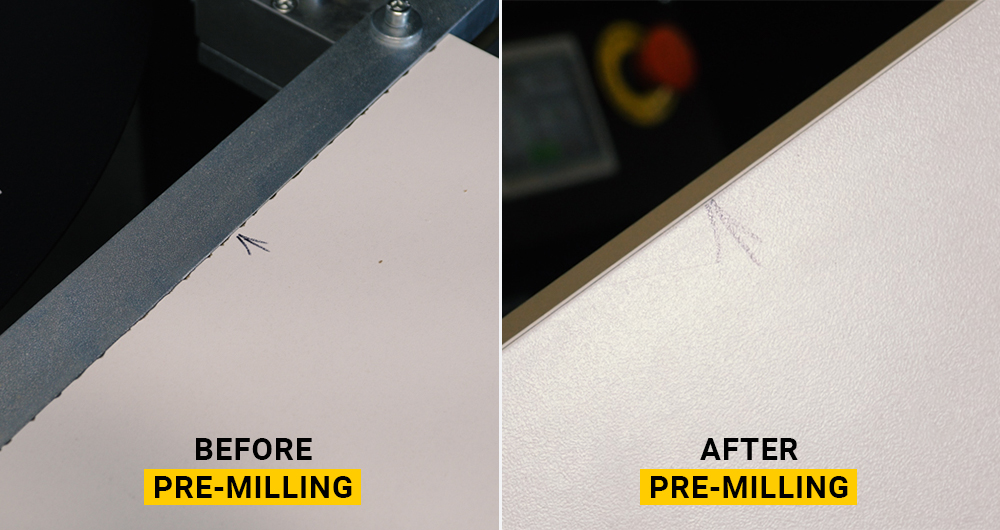

    Removes surface imperfections from panel edges before glue application. Improves bonding quality and reduces visible glue joints, resulting in a cleaner, more precise edge finish.
  • Glue Scraper Unit
    Removes excess glue after the edge banding process. Helps achieve a cleaner panel surface and improves final finishing quality.
  • Buffing Unit

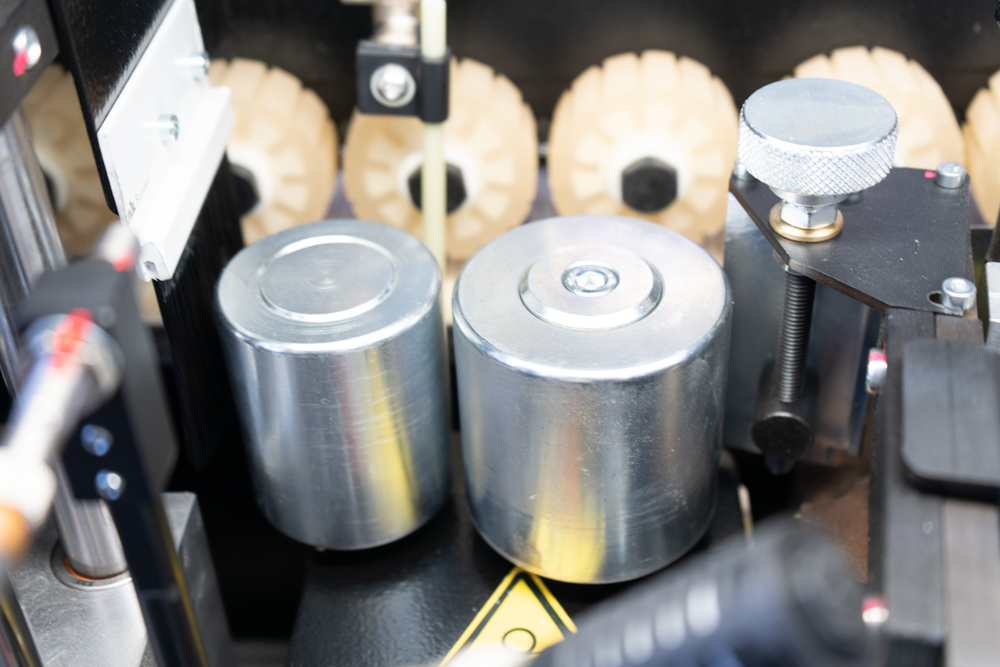

    Polishes and cleans remaining glue residue from the panel edge. Enhances surface appearance and delivers a professional finishing touch.

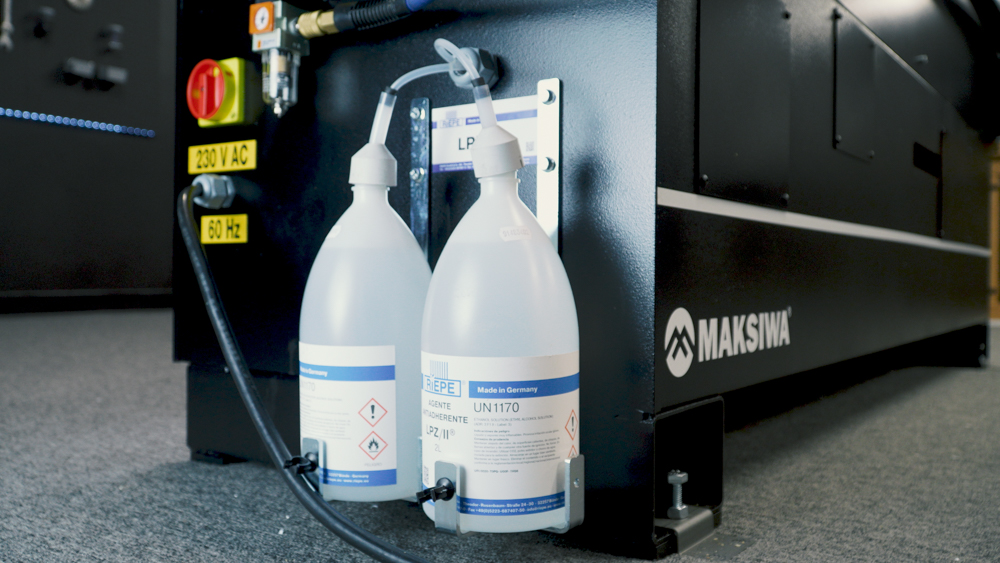

  • Cleaning Agent Spray System
    Applies an anti-static adhesive release agent to the panel surface before glue application. Helps prevent excess glue from bonding to the panel surface for a cleaner finish.

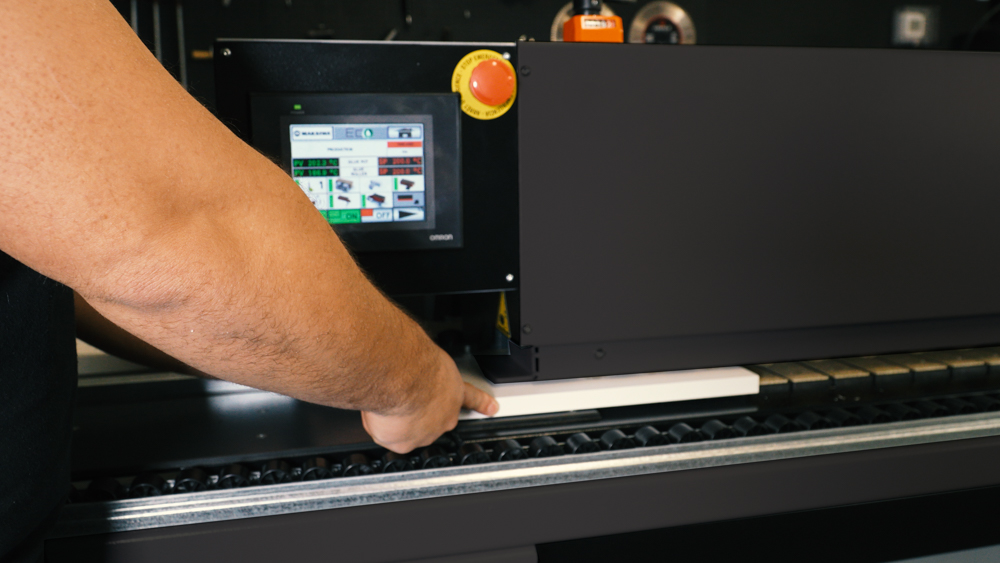

  • PLC Controlled by TFT Touchscreen
    Intuitive touchscreen interface allows easy machine setup and operational control. Enables precise adjustment of speed, temperature, and processing parameters.
  • Automatic ON/OFF Dust Collector
    Automatically controls the dust collection system when the machine starts or stops. Improves workflow efficiency by eliminating the need to manually activate the dust collector during operation.

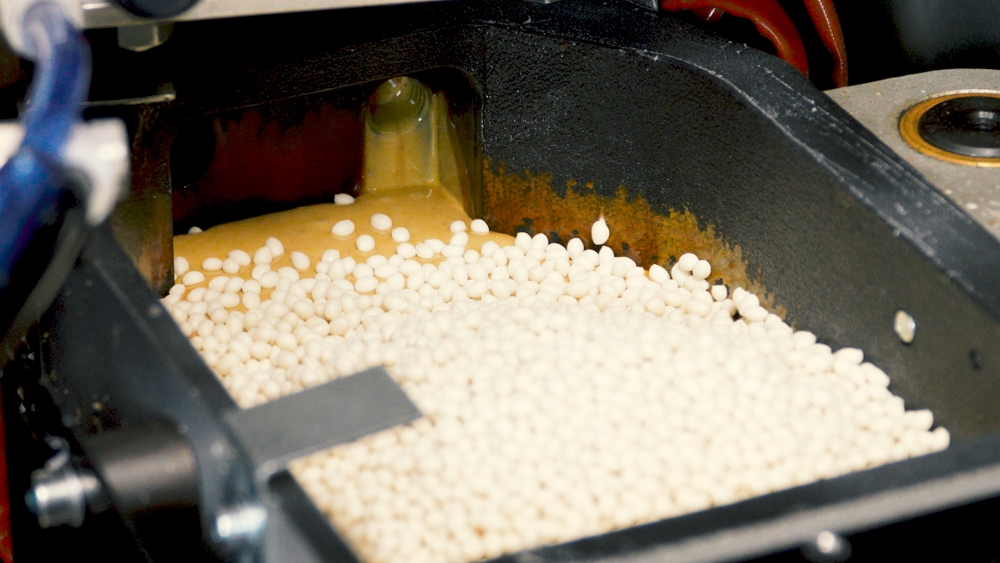

  • XMELT Glue Pot System with Drainage
    Features a Teflon-coated glue pot that reduces adhesive sticking and simplifies cleaning. The drainage function allows easier glue removal and maintenance after operation, supporting both EVA and PUR adhesives.

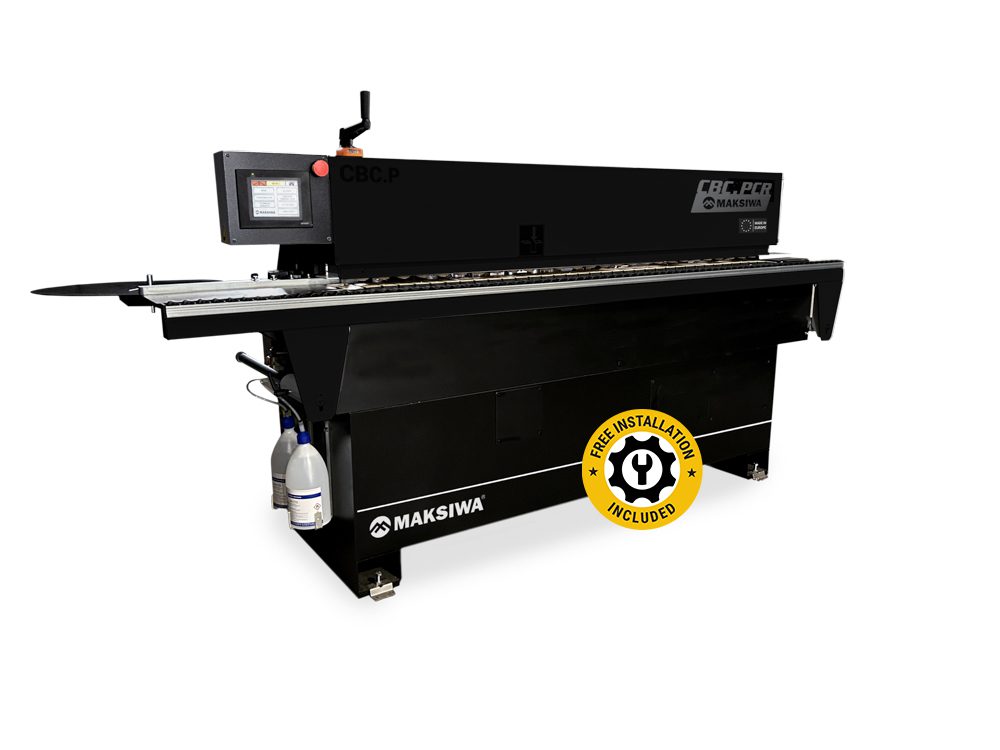

  • FREE Installation Included

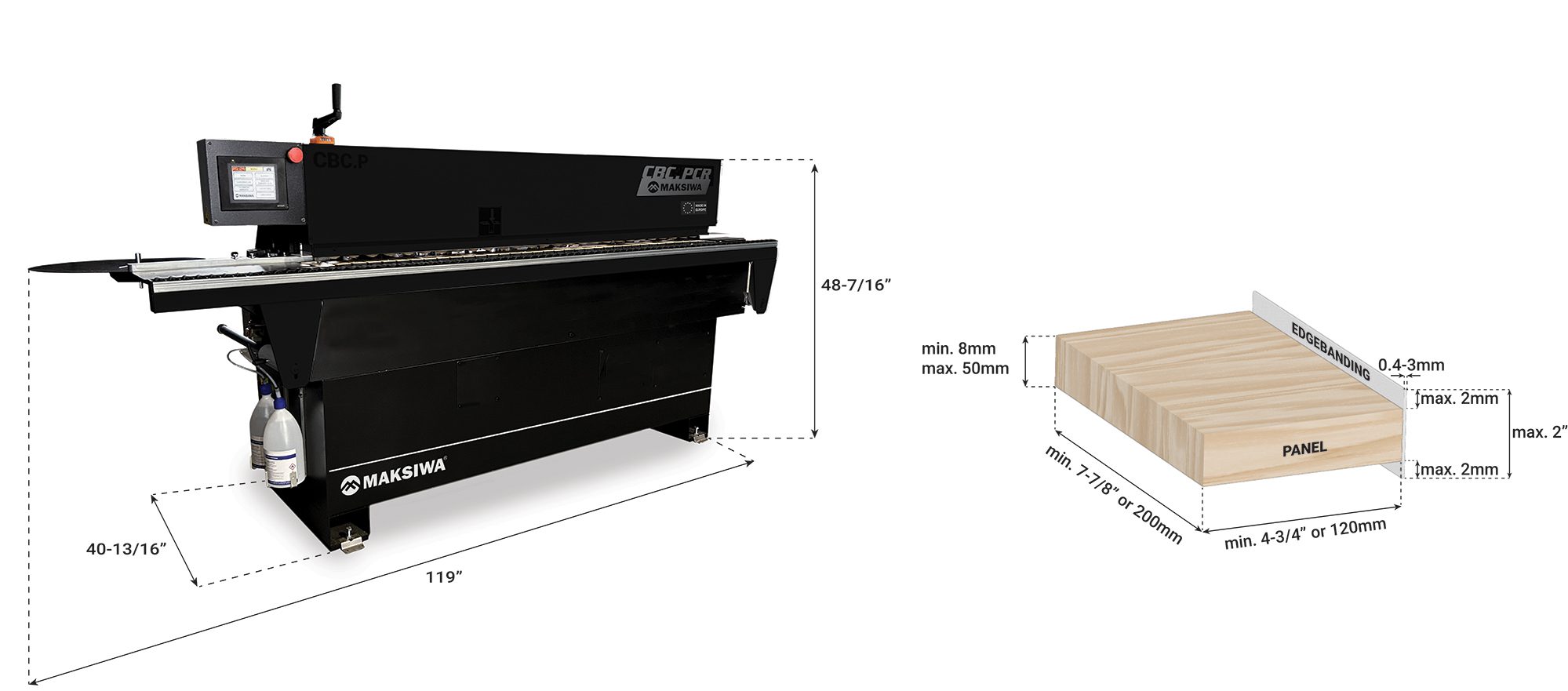

PRE-MILLING & CORNER ROUNDING IN A SMALL FOOTPRINT

WHY CHOOSE CBC.PCR?

FREE INSTALLATION

INCLUDED

2 YEAR

EXTENDED WARRANTY

US BASED

TECH SUPPORT

REAL REVIEWS. REAL RESULTS

"Absolute time saver of a machine. Love using it, interface is great and easy to use. Set up was a breeze with Maksiwa, tech were awesome to deal with. Francisco is great and very knowledgeable."
Adam Dobson
Adam DobsonGOOGLE REVIEW
"We purchased a CBC.PCR edgebander. The machine has been fantastic, it has drastically increased our productivity in our mill shop. The customer support has been top tire, after getting the machine installed Maksiwa sent two tech out to go over the machine with my mill shop crew and make sure that everything was set up properly. All around one of the best decisions we have made going with Maksiwa, we could not be more happy. I would definitely recommend their products."
Jeff Wauford
Jeff WaufordGOOGLE REVIEW

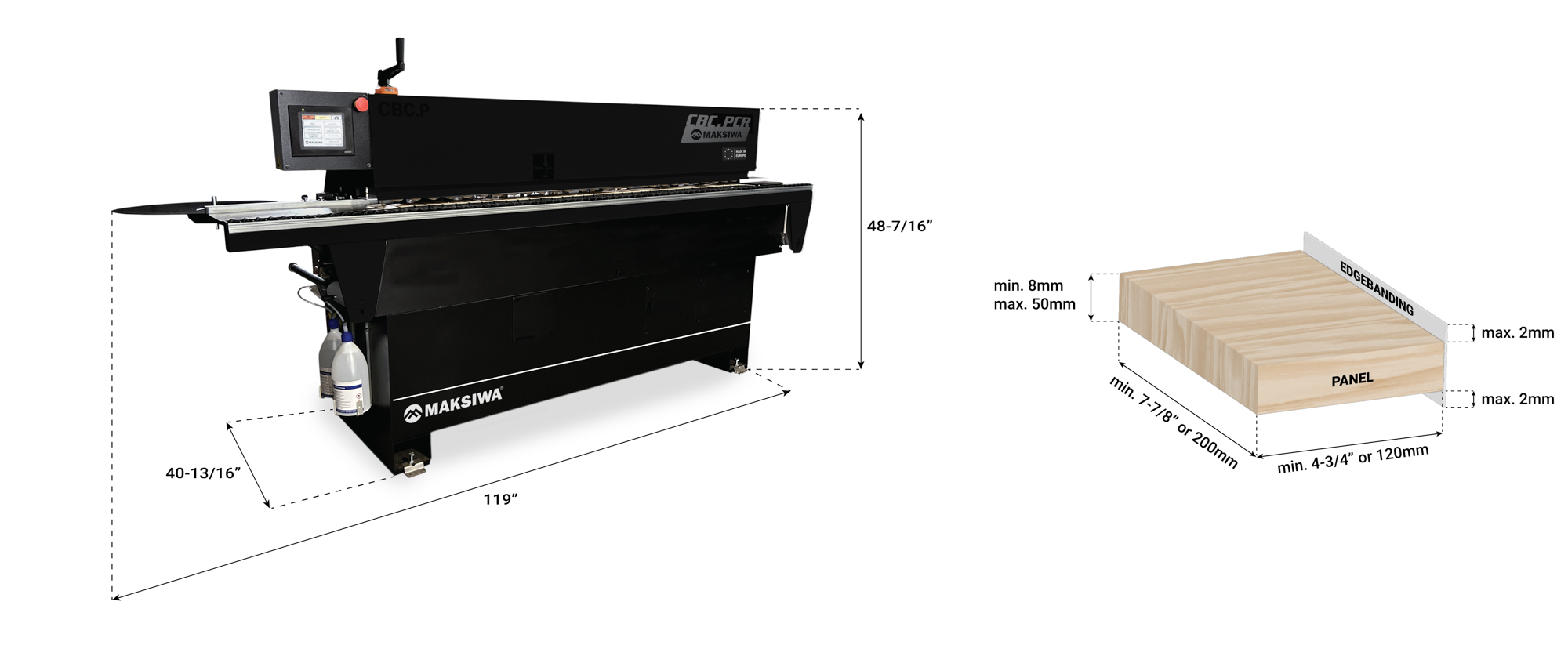

CBC.PCR - MACHINE SPECIFICATIONS

Technical InformationSAEMETRIC
Automatic Feeding Speed18 ft/min5.5 m/min
Panel Thickness Min/Max21/64” - 1-31/32” 8 - 50 mm
Max Pre-milling Height1”30 mm
Edgebanding Thickness0.0157" - 0.118"0.4-3mm
Max Edgebanding Height2"51 mm
Minimum Panel Width4-3/4"120 mm
Minimum Panel Length7-7/8"200 mm
Extendable Panel Support Rail Length 103"2627 mm
Extension Table Max Width 54"1371 mm
Edgebanding Coil Support Diameter59"1498 mm
Edgebanding MaterialMelamine/PVC/ABS/PP/Veneer/Laminate
Dust Collection Port6"150mm
Dust Collection Requirement1236 CFM
Air Pressure Requirement 14 SCFM @ 90PSI
Glue TypeHigh Temperature Pellet Glue EVA or PUR
Glue Temperature RangeEVA: 356° - 410°F | PUR: 230° - 302°FEVA: 180° - 210°C | PUR: 110° - 150°C
Glue Pot Capacity3.3 lbs1.5 kg
Machine Dimensions119” x 40-13/16” x 48-7/16”3026 x 1036 x 1230 mm
Shipping Dimensions111” x 30” x 57” 2820 x 760 x 1448 mm
Weight1653 lbs750 kg
Warranty2 years
Motor/Electrical Specs
Electrical Specs1 Phase 220V 40 Amps 60 Hz
Conveyer Motor60 Hz 1390 RPM .66 kw
Top/Bottom Trimmer High Frequency Motor200 Hz 12,000 RPM .27kw
End/Corner Rounding Trimmer Motor200 Hz 12,000 RPM .27kw
Front/Rear Pre-Milling High Frequency Motor150 Hz 9000 RPM .75/.25Kw
Top Buffing Motor60 Hz 1680 RPM .11kw
Bottom Buffing Motor60 Hz 1680 RPM .11kw
Sound Rating80 dB
DOWNLOAD THE MANUAL
DOWNLOAD GLUE GUIDE

Compare our Automatic edgebanders

GET HELP CHOOSING, TALK WITH A SPECIALIST

CBC.T

$13,200.00
  • Heavy Duty Industrial Grade Machine
  • Corner Rounding
  • Vertical Rounding
  • Straight Edge
  • Pre-milling
  • Top, Bottom, Front & End Trim
  • Touchscreen Panel
  • XMELT Glue Pot System with Drainage
  • Cleaning Agent Spraying System
  • Automatic ON/OFF Dust Collector
  • Extendable Panel Support Rail
  • Buffing Unit
  • Glue Scrapper Unit
  • High Temp. Pellet Glue EVA
  • High Temp. Pellet Glue PUR
  • Regular Motors
  • Tape Thickness: 0.4-3mm
  • Panel Thickness: 12-45mm
  • Feeder Speed: 16ft/min
  • Glue Pot Capacity: 2lbs
+ LEARN MORE

CBC.TPM

$21,900.00
  • Heavy Duty Industrial Grade Machine
  • Corner Rounding
  • Vertical Rounding
  • Straight Edge
  • Pre-milling
  • Top, Bottom, Front & End Trim
  • Touchscreen Panel
  • XMELT Glue Pot System with Drainage
  • Cleaning Agent Spraying System
  • Automatic ON/OFF Dust Collector
  • Extendable Panel Support Rail
  • Buffing Unit
  • Glue Scrapper Unit
  • High Temp. Pellet Glue EVA
  • High Temp. Pellet Glue PUR
  • High Frequency Motor
  • Tape Thickness: 0.4-2mm
  • Panel Thickness: 10-40mm
  • Feeder Speed: 21ft/min
  • Glue Pot Capacity: 1lbs
+ LEARN MORE

CBC.PCR

$34,900.00
  • Heavy Duty Industrial Grade Machine
  • Corner Rounding
  • Vertical Rounding
  • Straight Edge
  • Pre-milling
  • Top, Bottom, Front & End Trim
  • Touchscreen Panel
  • XMELT Glue Pot System with Drainage
  • Cleaning Agent Spraying System
  • Automatic ON/OFF Dust Collector
  • Extendable Panel Support Rail
  • Buffing Unit
  • Glue Scrapper Unit
  • High Temp. Pellet Glue EVA
  • High Temp. Pellet Glue PUR
  • 2 High Frequency Motors
  • Tape Thickness: 0.4-3mm
  • Panel Thickness: 8-50mm
  • Feeder Speed: 18ft/min
  • Glue Pot Capacity: 3.3lbs
