CBC.TPM
AUTOMATIC EDGEBANDER PRE-MILLING

Pre-Milling

•

High Frequency Motors

•

Industrial Grade

Compact precision with heavy-duty performance.

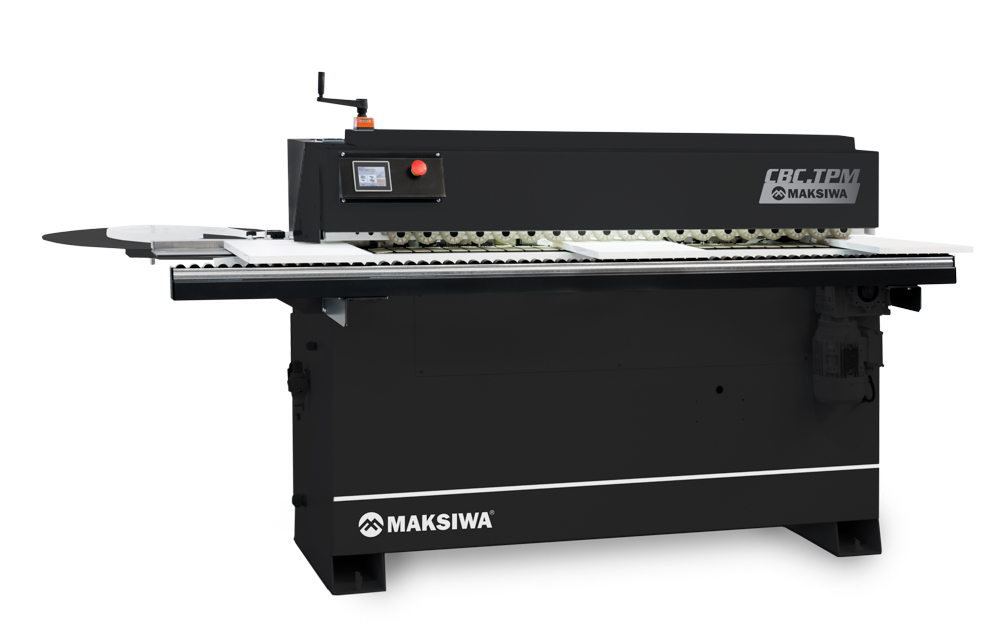

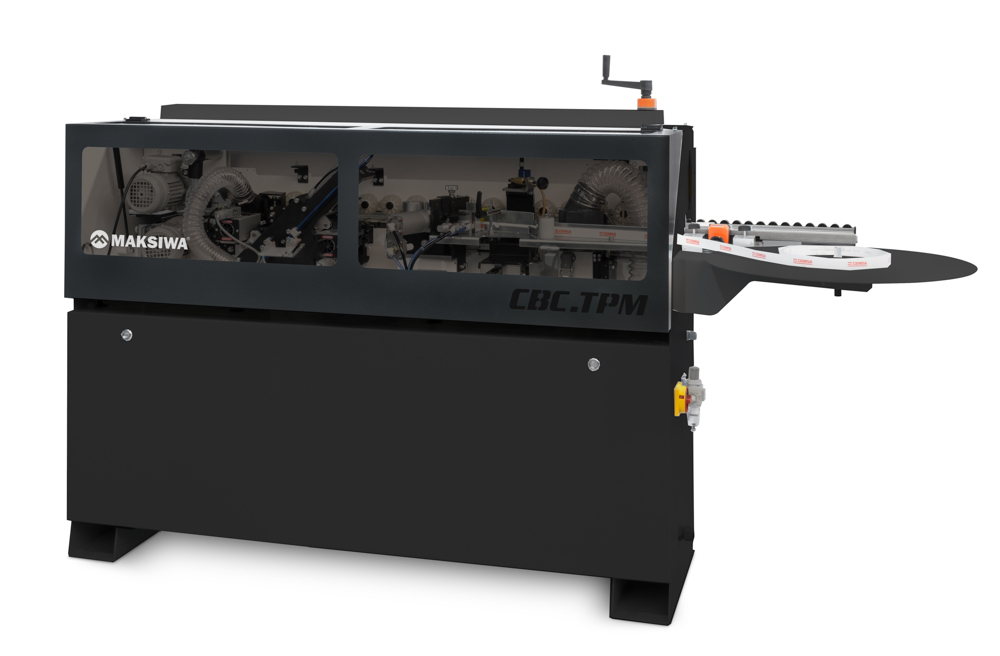

The Maksiwa CBC.TPM Automatic Edgebander delivers industrial-grade quality in a compact footprint, perfect for workshops with limited space.

It features pre-milling, a gluing unit with Teflon-coated glue pot, vertical rounding or flat trimming, glue scraping, and buffing for a flawless panel finish.

High-frequency motors, each controlled by an independent electronic converter, ensure precise, reliable operation.

The intuitive PLC touchscreen makes setup and operation simple, maximizing efficiency and versatility.

$21,900

Heavy Duty Industrial Grade Machine
Built with reinforced metal structures and high-strength joints to support continuous production environments. Designed to improve durability, reduce wear, and maintain performance during high workload operation.
High Frequency Motors
Provide faster, smoother, and more consistent cutting and trimming performance. Helps deliver superior edge finishing quality with improved precision.

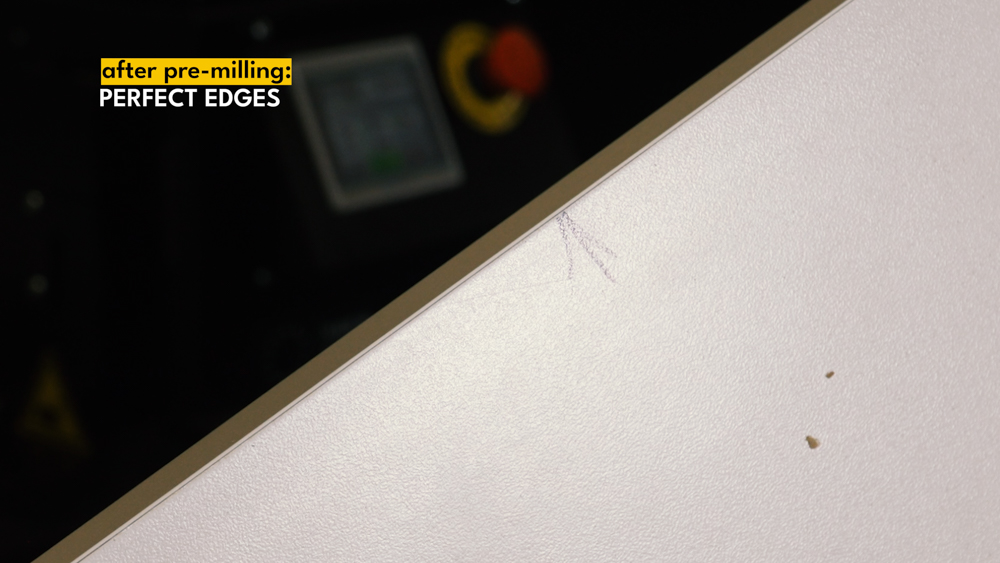

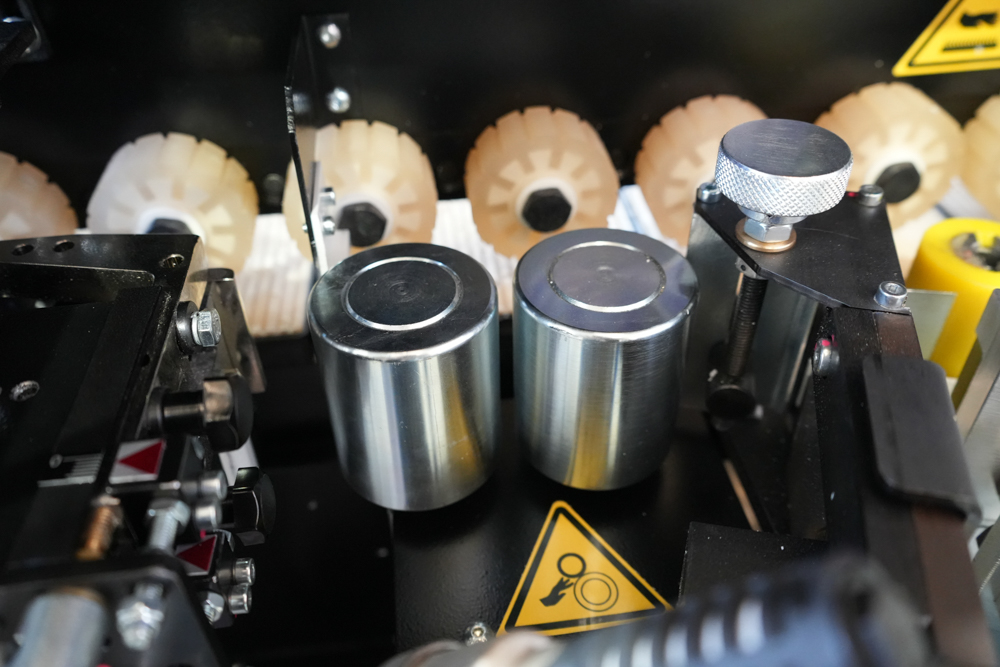

Pre-milling
Removes surface imperfections from panel edges before glue application. Improves bonding quality and reduces visible glue joints, resulting in a cleaner, more precise edge finish.

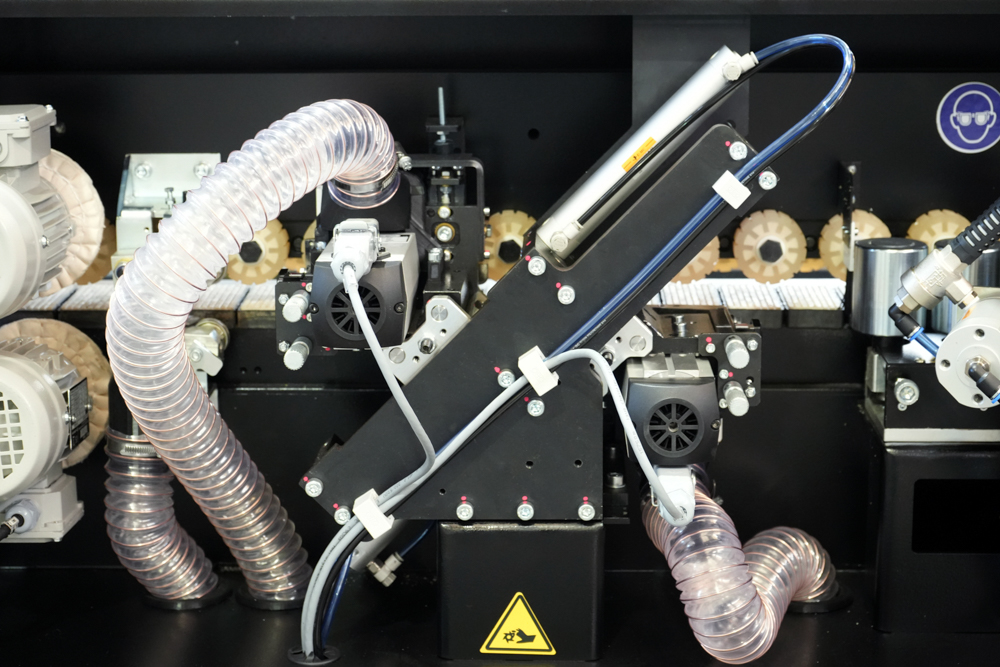

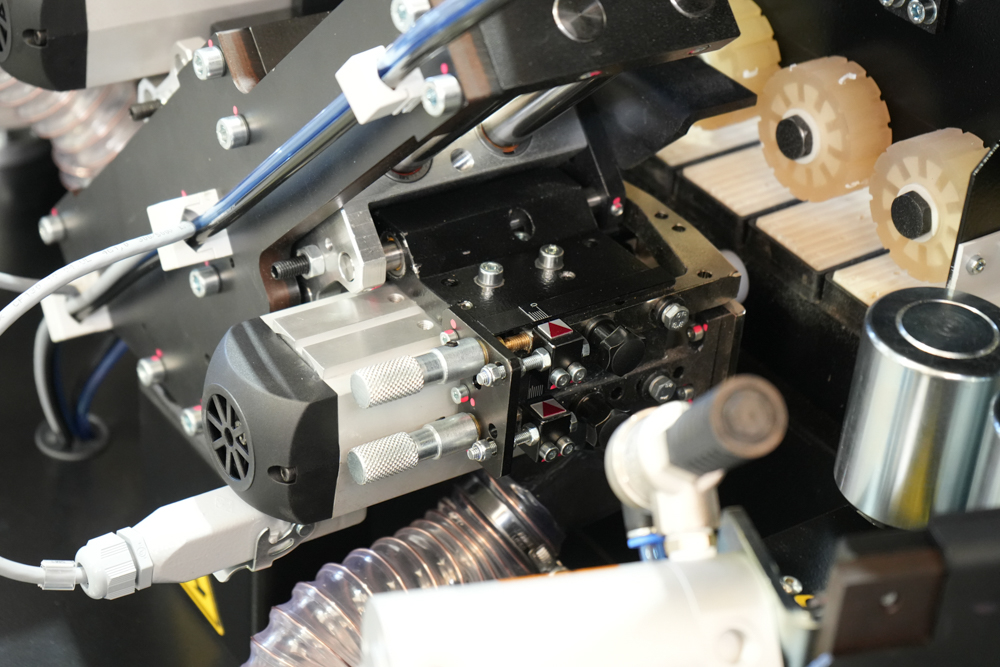

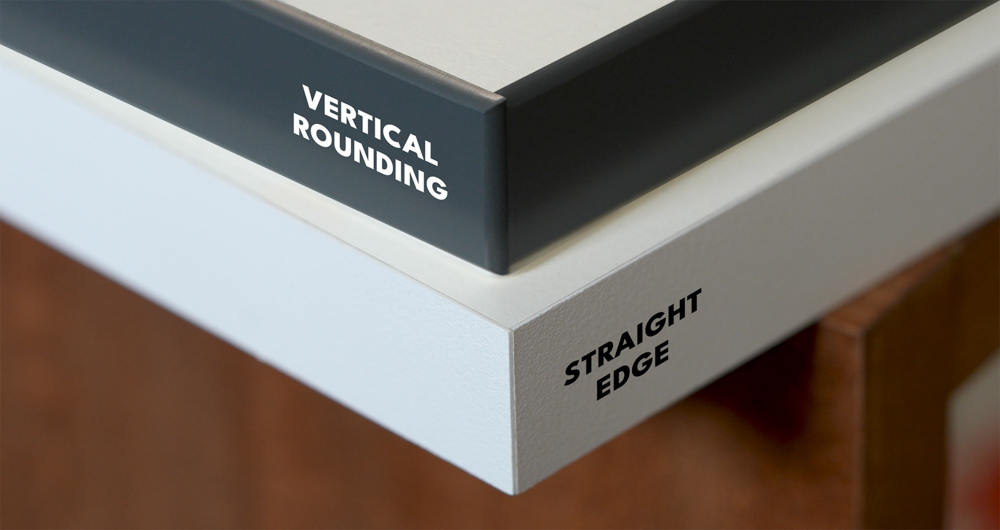

Vertical Rounding or Straight Edge
Vertical rounding smooths the front and rear edges while maintaining a defined panel corner profile. Straight trimming provides standard flat edge finishing.
Glue Scraper Unit
Removes excess glue after the edge banding process. Helps achieve a cleaner panel surface and improves final finishing quality.

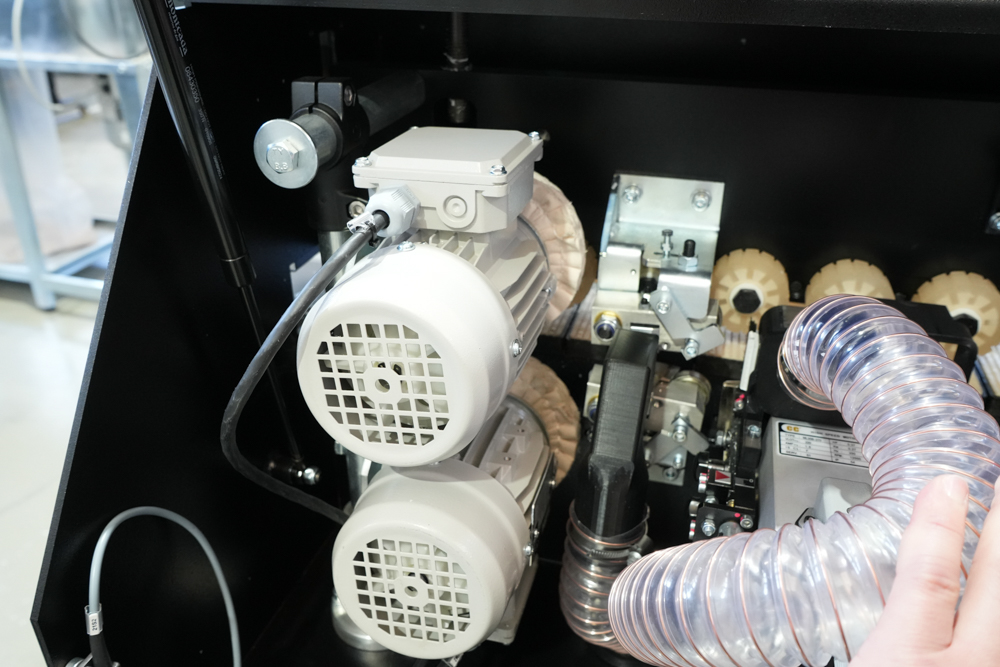

Buffing Unit
Polishes and cleans remaining glue residue from the panel edge. Enhances surface appearance and delivers a professional finishing touch.
PLC Controlled by TFT Touchscreen
Intuitive touchscreen interface allows easy machine setup and operational control. Enables precise adjustment of speed, temperature, and processing parameters.
Teflon Coated Glue Pot
Reduces glue adhesion inside the pot, allowing smoother glue flow and easier cleaning. Facilitates faster glue replacement and maintenance.

PRE-MILLING & VERTICAL ROUNDING IN A SMALL FOOTPRINT

WHY CHOOSE CBC.TPM?

VIDEO

INSTALLATION

2 YEAR

EXTENDED WARRANTY

US BASED

TECH SUPPORT

REAL REVIEWS. REAL RESULTS

"I got about 35 years experience. Completion dates, delivery dates, and that's the key. Getting an edgebander it makes the work a little faster. I would say a lot faster than we do by hand. I would say it's a must have equipment in the shop. Regardless of what you are building, you know doors, cabinetry, and paneling or whatever product you want to run throught it is pretty necessary to have an edgebander."

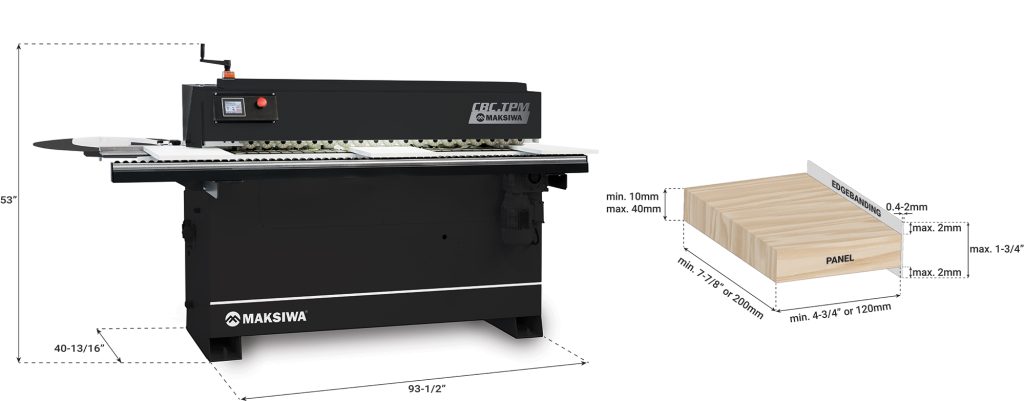

CBC.TPM - MACHINE SPECIFICATIONS

CBC.TPM	SAE	METRIC
Automatic Feeding Speed	21 ft/min	6.5 m/min
Panel Thickness Min/Max	-	10 - 40 mm
Max Pre-milling Height	1”	30 mm
Edgebanding Thickness	0.0157" - 0.07"	0.4-2mm
Max Edgebanding Height	1-3/4"	40 mm
Minimum Panel Width	4-3/4"	120 mm
Minimum Panel Length	7-7/8"	200 mm
Extendable Panel Support Rail Length	83-1/2"	2122 mm
Extension Table Max Width	10"	257 mm
Edgebanding Coil Support Diameter	59"	1498 mm
Edgebanding Material	Melamine/PVC/ABS/PP/Veneer/Laminate
Dust Collection Port	5"	127mm
Dust Collection Requirement	1236 CFM
Air Pressure Requirement	7 SCFM @ 90 PSI
Glue Type	High Temperature Pellet Glue EVA
Glue Temperature Range	356°F - 410°F	180°C - 210°C
Glue Pot Capacity	1lbs	0.5 kg

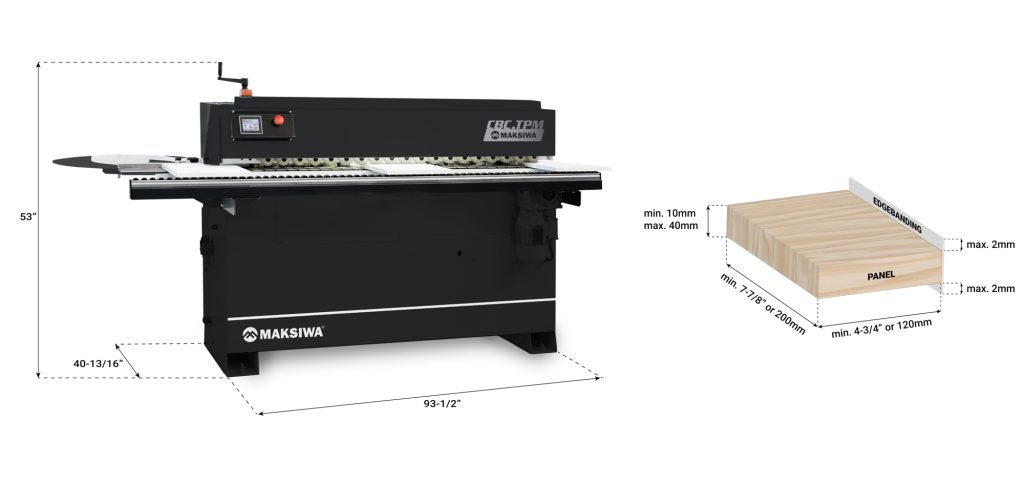

Machine Dimensions	93-1/2” x 40-13/16” x 53”	2376 x 1028 x 1347 mm
Shipping Dimensions	91” x 30” x 57”	2320 x 760 x 1448 mm
Weight	1146 lbs	520 kg
Warranty	2 years

Motor/Electrical	Specs
Electrical Requirement	1 Phase 220V 30 Amps 60 Hz
Conveyer Motor	60 Hz 1390 RPM .66 kw
Top/Bottom Trimmer HFM	200 Hz 12,000 RPM .27kw
End Trimmer Motor	200 Hz 12,000 RPM .27kw
Front/Rear Pre-Milling HFM	150 Hz 9000 RPM .75/.25Kw
Top Buffing Motor	60 Hz 1680 RPM .11kw
Bottom Buffing Motor	60 Hz 1680 RPM .11kw
Sound Rating	80 dB
