POWERFUL
•
53 Gal TANK OR BAG
•
5 DUST PORT

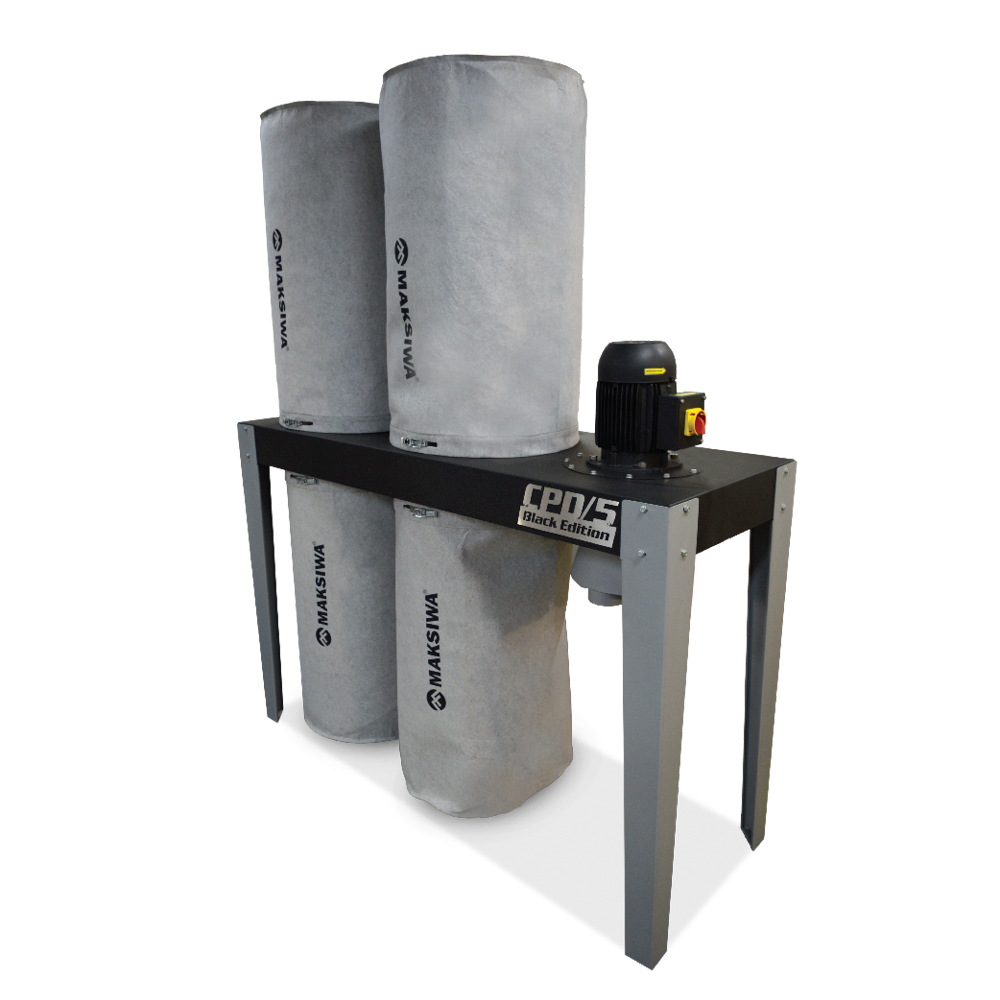

The Maksiwa CPD/5.S Dust Collector is built for high-production cabinet shops, offering versatility and efficiency.
With a 5HP motor, 3 Phase 220V power, and 2,760 CFM airflow, it can handle dust from multiple machines simultaneously.

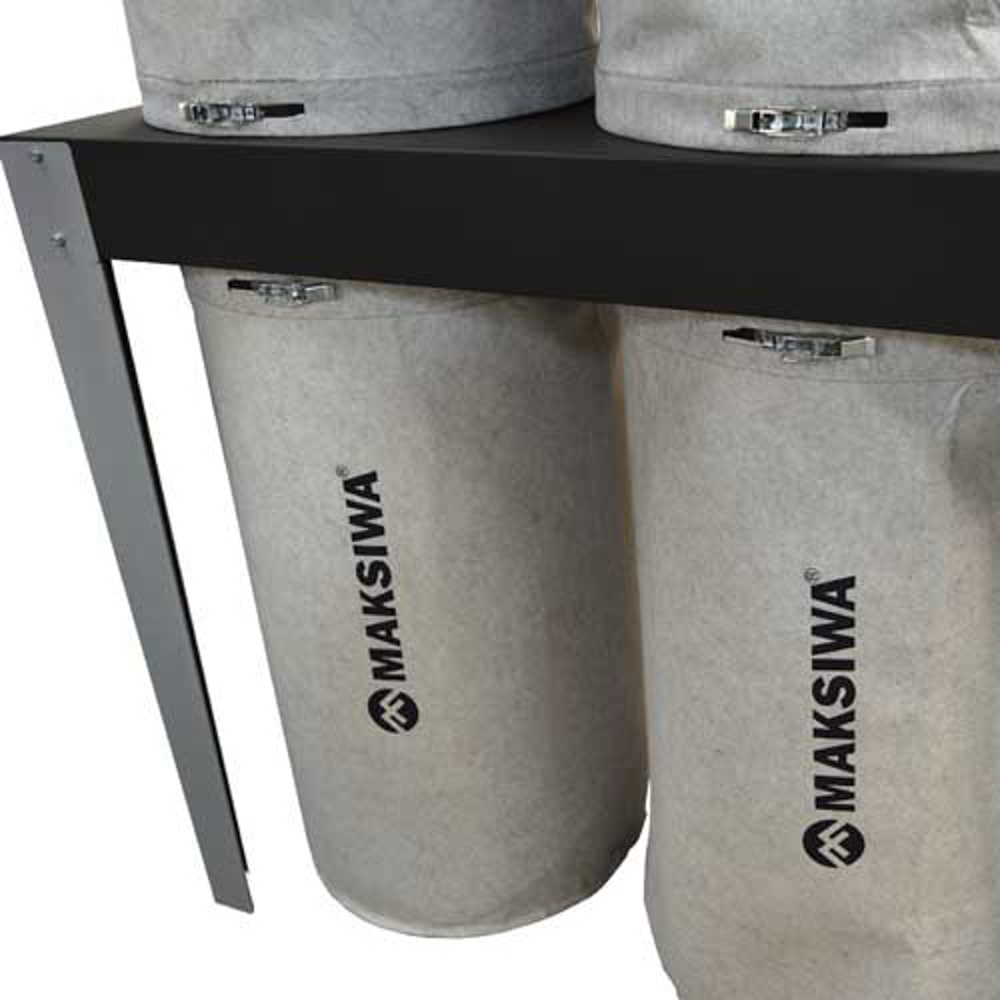

The collector features a two 53 Gal (200 L), which can be fitted with either a carbon steel container or bag, both easily replaceable.
With 5 inlets dust port (4”) and 2.5 micron filtration, the CPD/5.S keeps your workshop clean while adapting to your workflow needs.
INSTALLATION
EXTENDED WARRANTY
TECH SUPPORT
| Technical Information | CPD/5.S |
|---|---|
| Motor Specs | 5HP 3 PHASES 220V 20A |
| Number of Inlet | 5 |
| Inlet Size | 4" |
| Filtration | 2.5 micron |
| Air Flow Capacity | 2760 CFM |
| Bag or Tank Capacity | 53 Gal (200 L) |
| Bag Size | 25" x 35" | 580mm x 900mm |
| Weight | 240 lbs |
| Warranty | 2 Years |
