HBM.1000
HINGE BORING MACHINE
BORING & INSERTION
•
AFFORDABLE
•
MULTIPLE PATTERNS

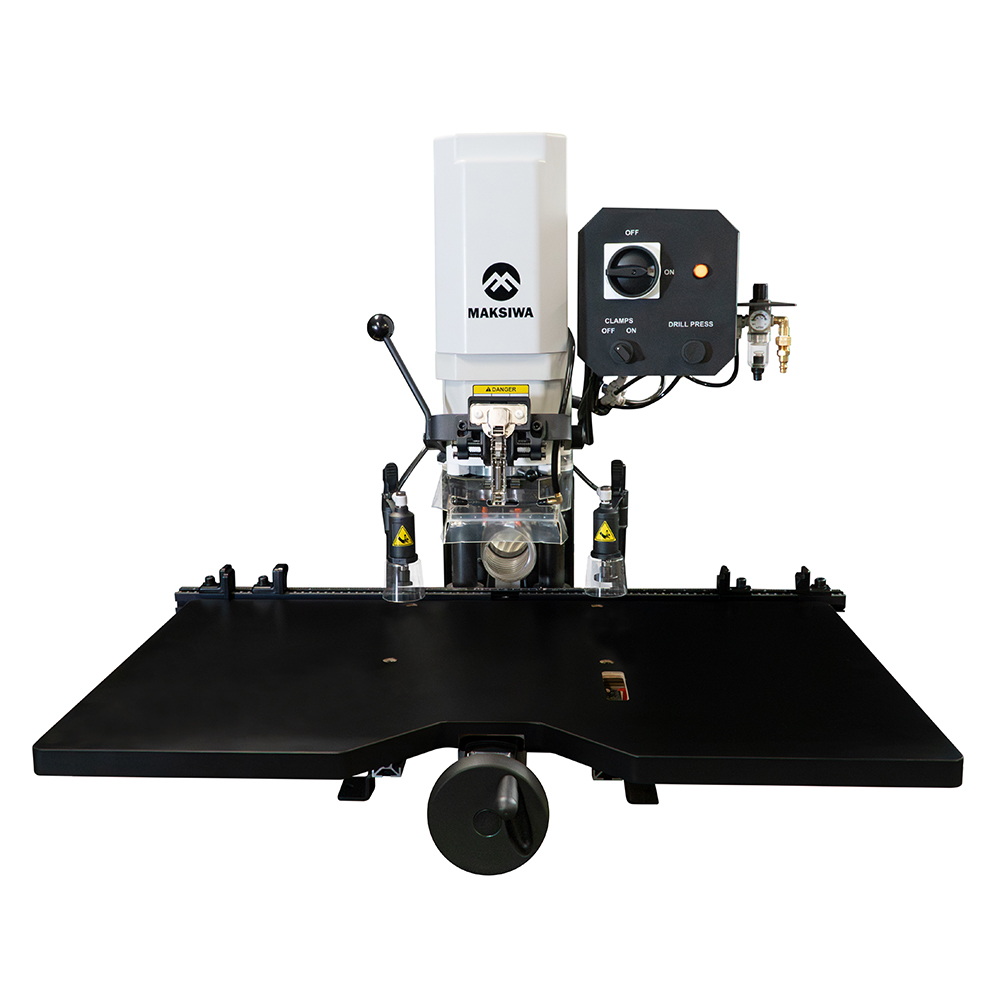

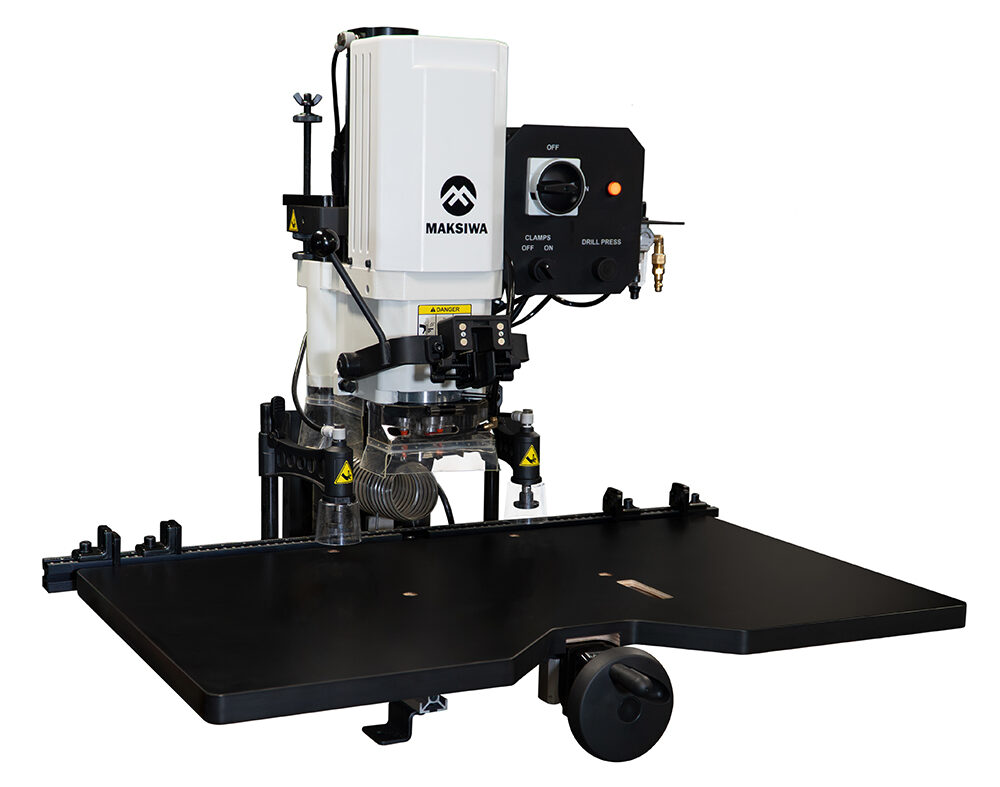

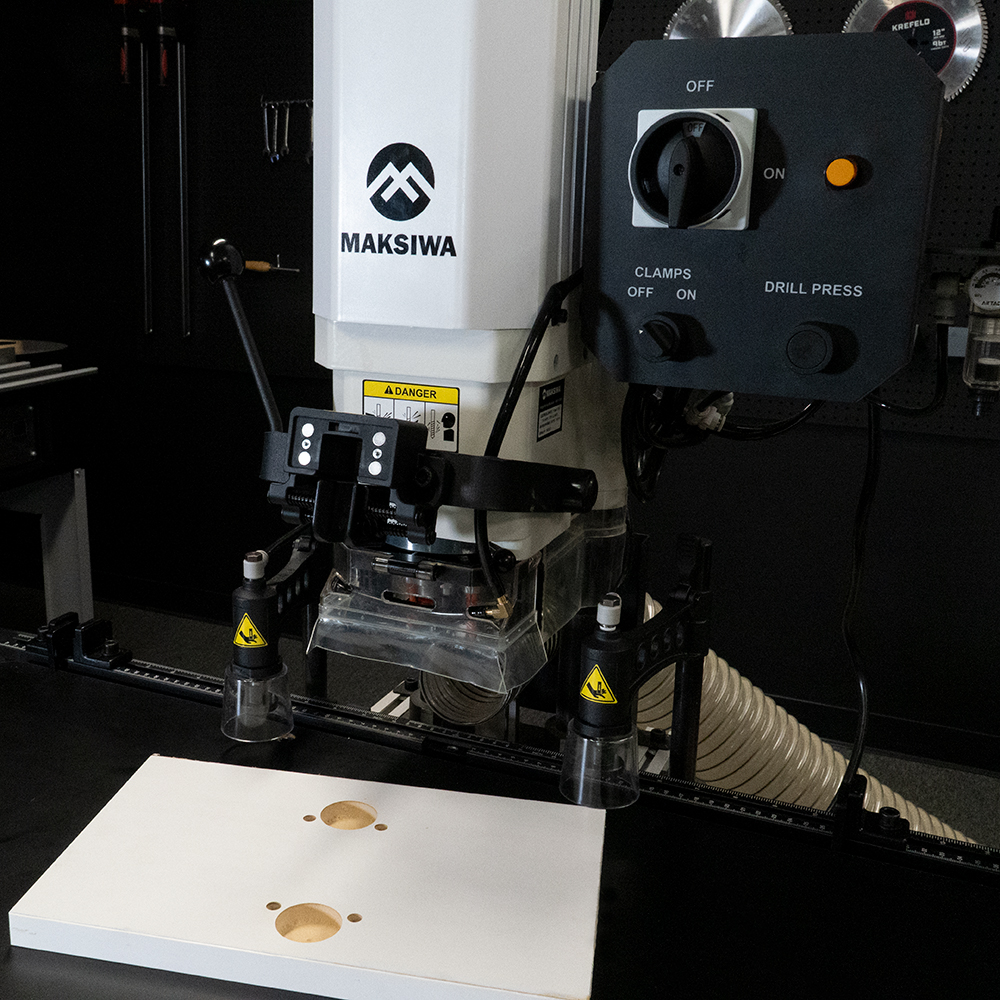

Compact and precise hinge boring machine.
The Maksiwa HBM.1000 is a high-precision, compact machine designed for fast and efficient hinge and hardware installation in cabinetry and furniture production.
Powered by a 1.5 HP motor, it delivers accurate 35 mm hinge cup bores with carbide-tipped bits, making it ideal for hinges, mounting plates, and connectors.
With multiple drilling patterns, quick-set boring distance, and integrated dust collection, the HBM.1000 streamlines hinge installation while maintaining consistent, professional results.
Simple setup, easy adjustments, and reliable operation make this machine perfect for production environments that demand speed and precision.
$3,499

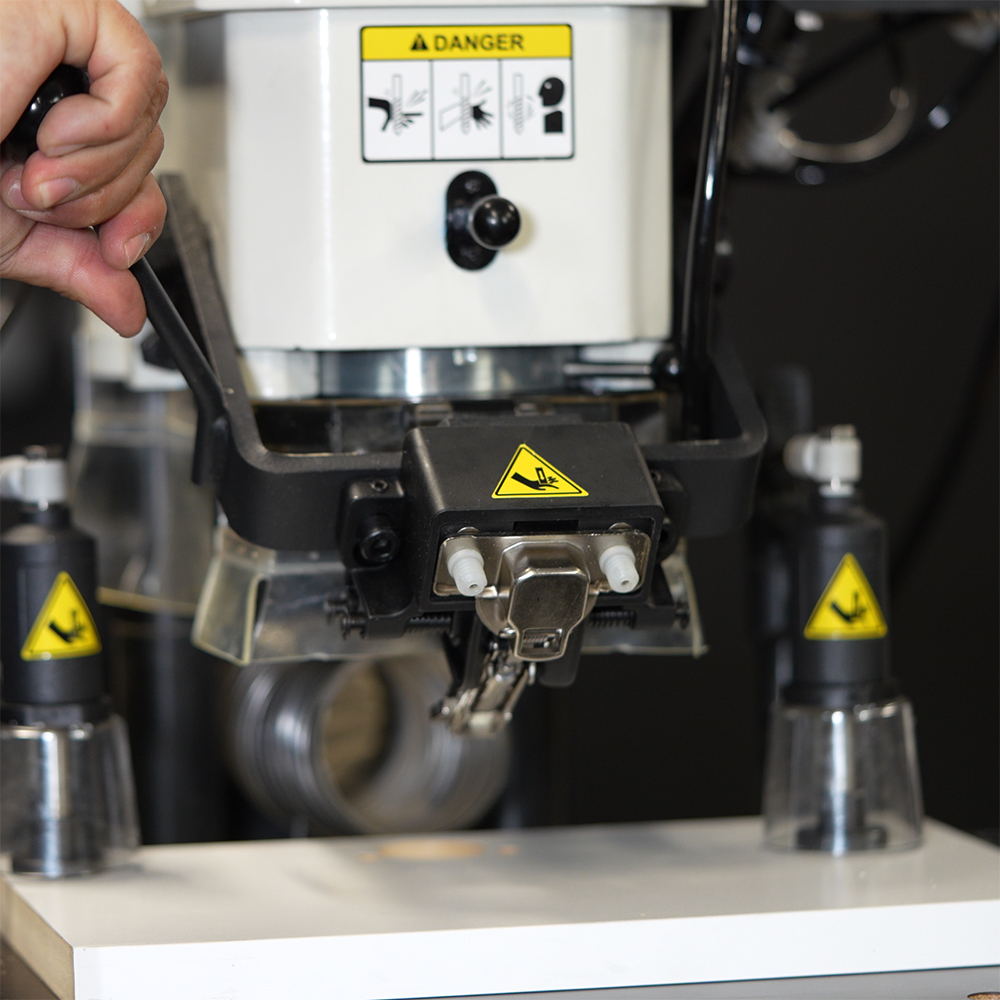

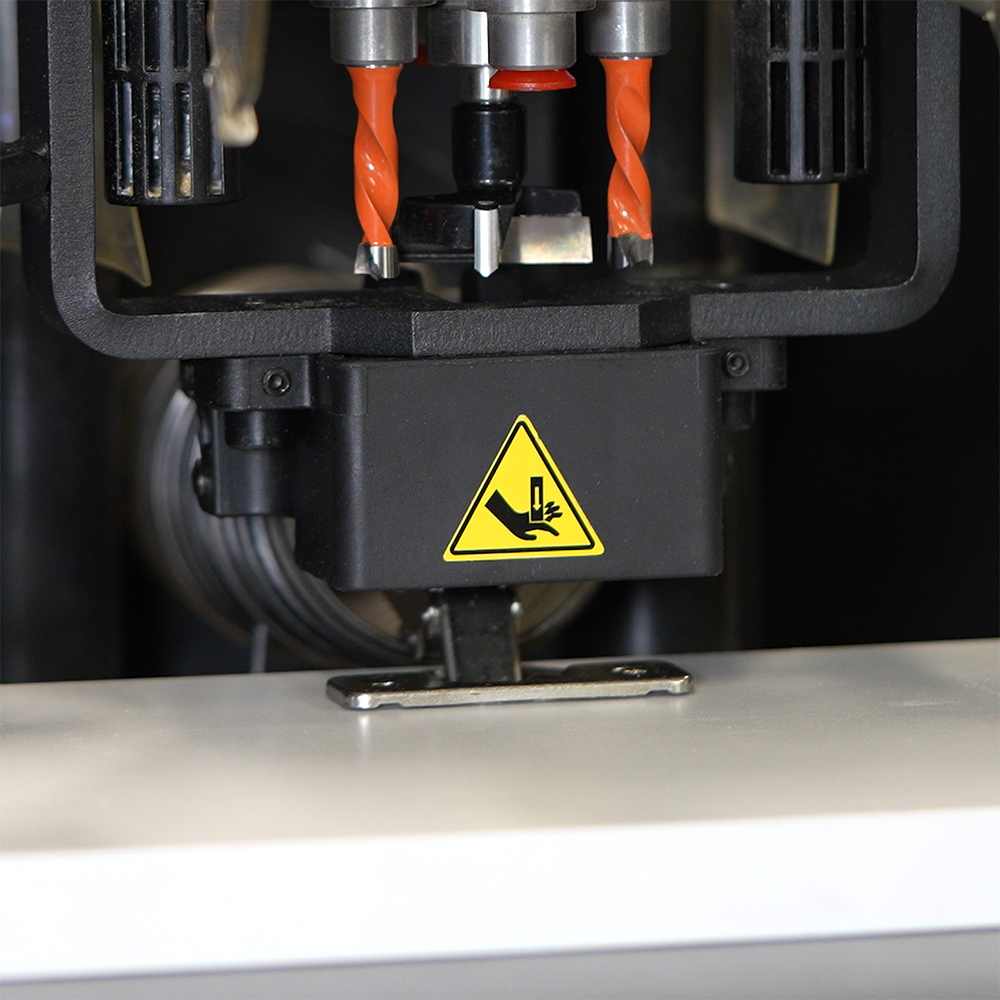

- All-in-one Boring & Insertion
- 1.5 HP motor

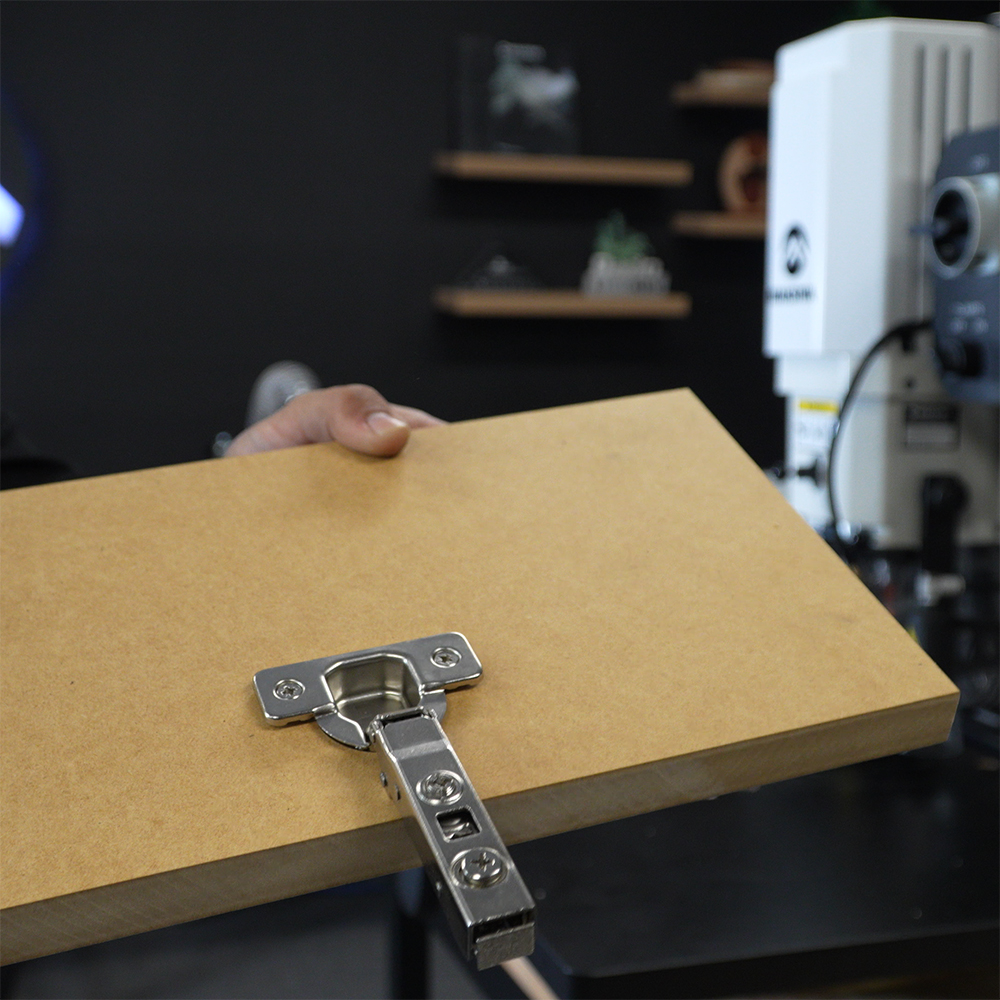

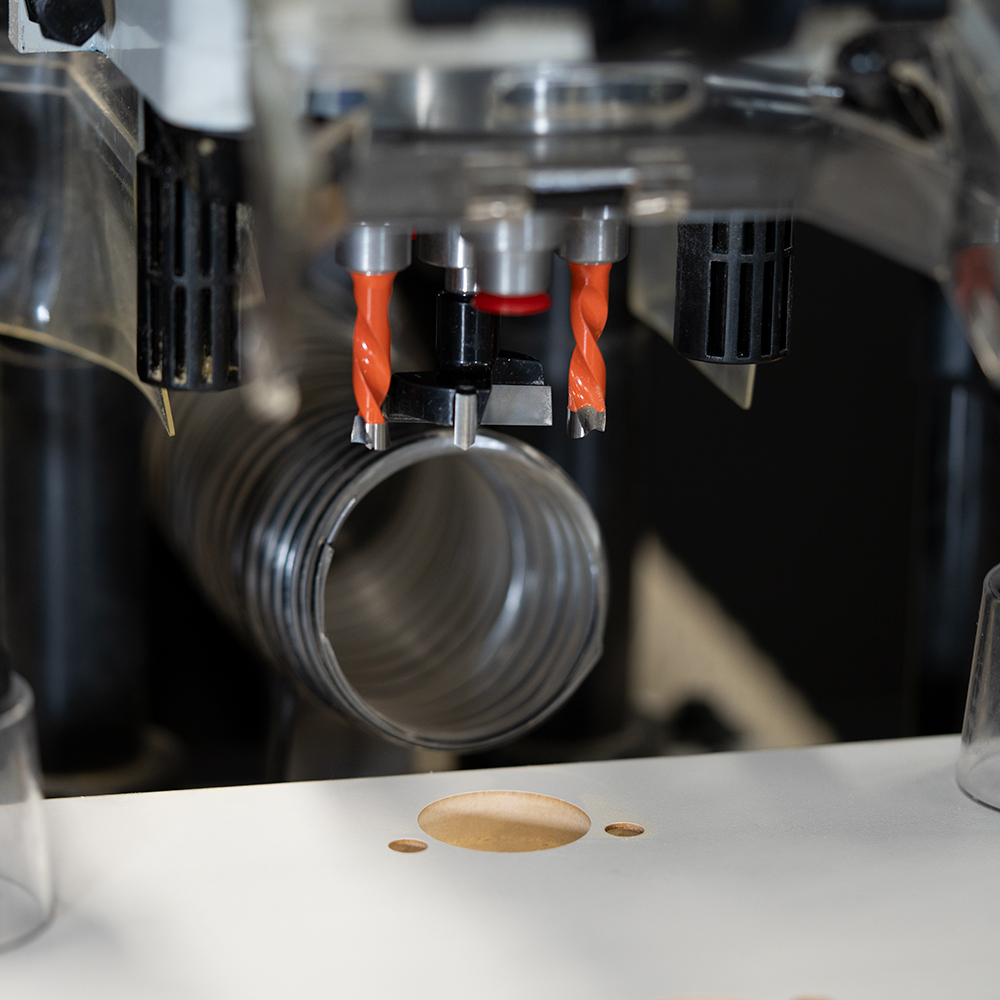

- 35mm hinge cup boring
- Multiple drilling patterns

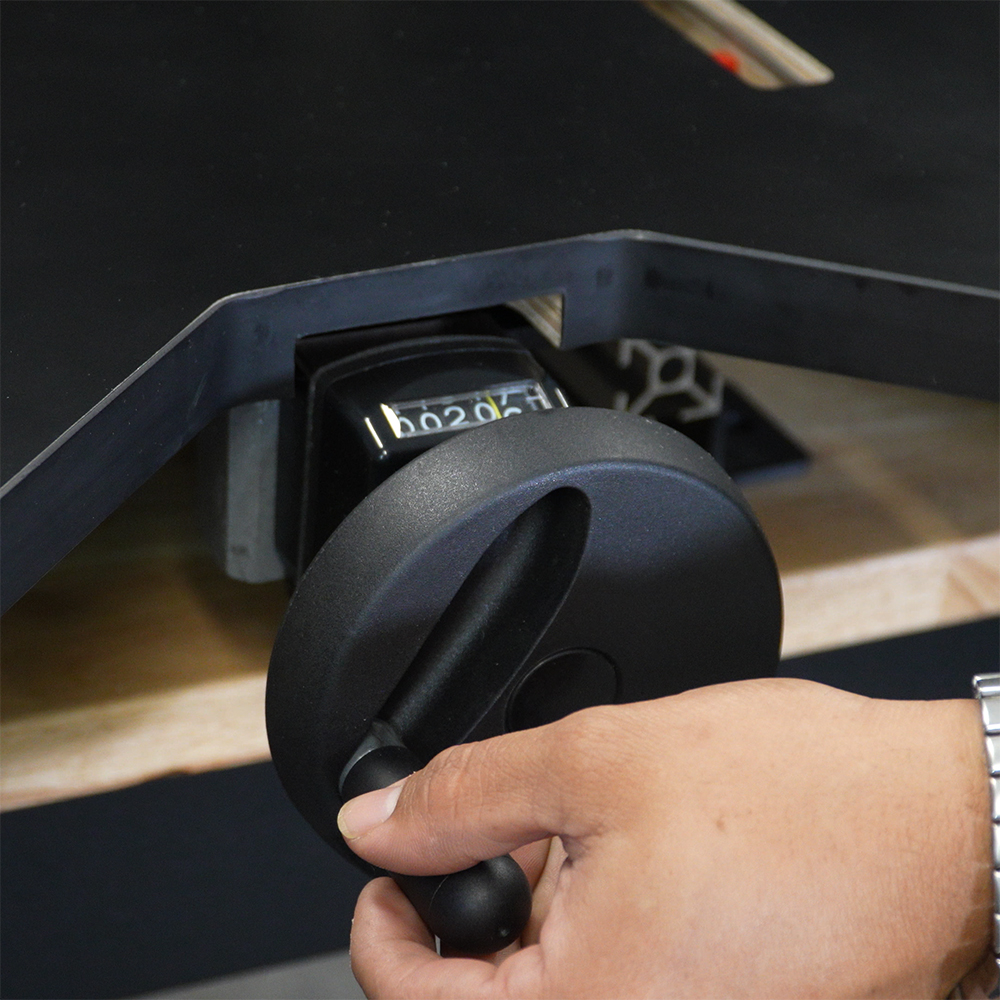

- Quick-set boring distance
- Integrated dust collection
- Compact design
- Ideal for cabinetry, and furniture
FAST, PRECISE, AND EASY TO USE
WHY CHOOSE HBM.1000?
VIDEO
INSTALLATION
2 YEAR
EXTENDED WARRANTY
US BASED
TECH SUPPORT
REAL REVIEWS. REAL RESULTS
HBM.1000 - MACHINE SPECIFICATIONS
| Technical Information | HBM.1000 |
|---|---|
| Electrical Specs | 1 Phase 110V 13.6Amps or 220V 6.8Amps |
| Motor Specs | 1.5 HP 1.1 KW 3400 RPM |
| Table Size | 18" x 31-1/2" |
| Machine Table Height | 5-3/8" |
| Machine Table Depth | 2-3/4" |

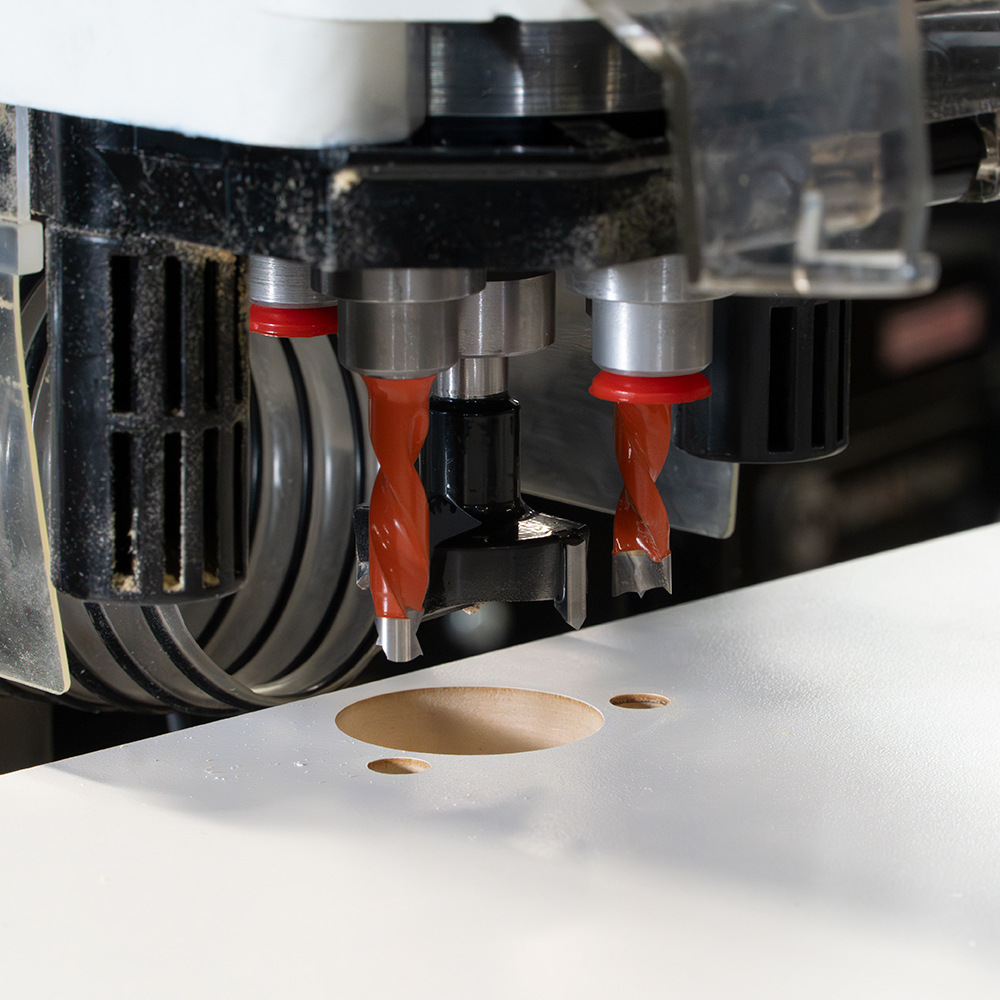

| Hinge Boring Bit Diameter | Carbide Tipped - 35mm |
| Hinge Boring Bit Rotation | Right |
| Hinge Boring Shank | 10mm |
| Hinge Boring Length | 57mm |
| Drill Bits Diameter | Carbide Tipped - 8mm |
| Drill Boring Bits Rotation | Left |
| Drill Boring Shank | 10mm |
| Number of Stops | 2 Left / 2 Right |
| Maximum Depth of Stroke | 4-5/16” |
| Boring Distance Center Spindle | 0 - 2-3/4” | 0 - 70mm |

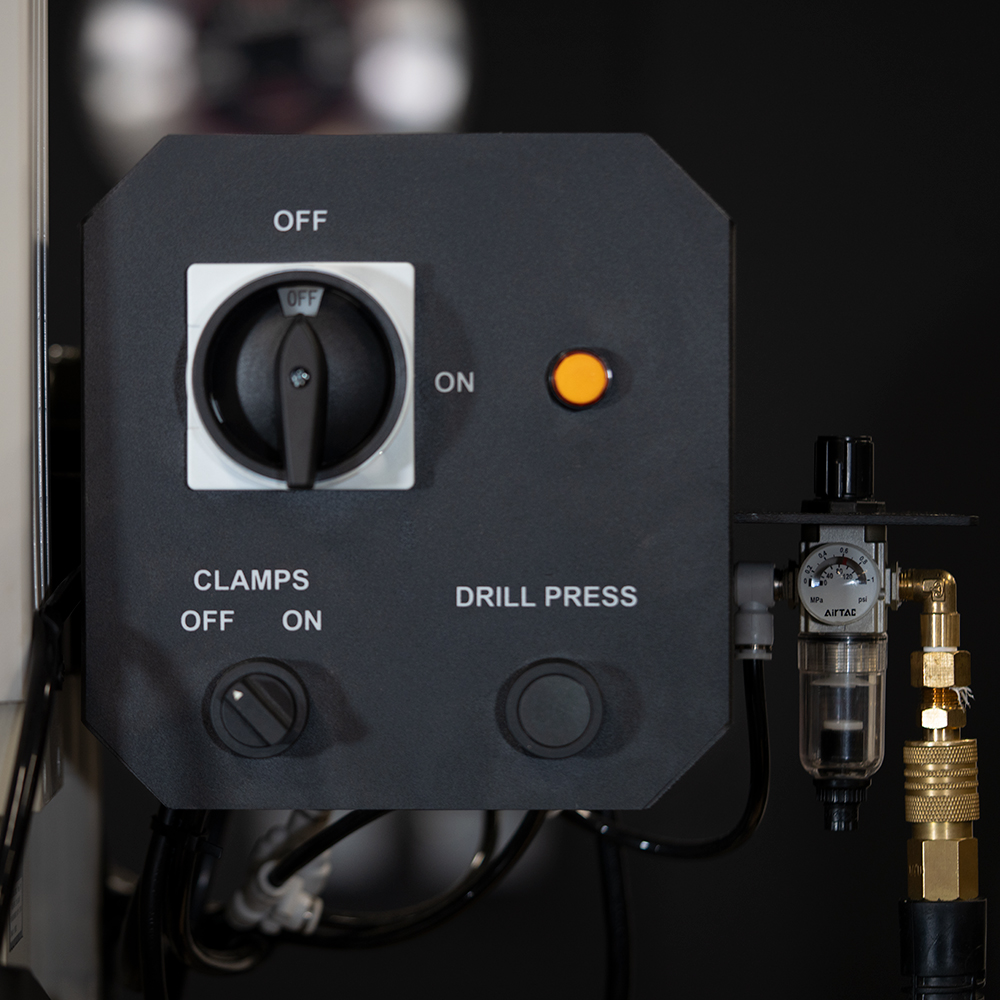

| Air Pressure Requirement | 90 PSI |

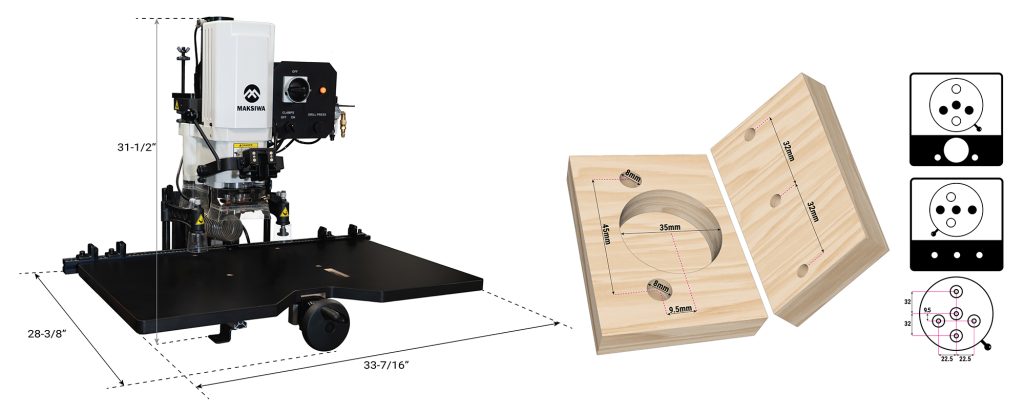

| Machine Dimension | 33-7/16” x 28-3/8” x 31-1/2” |
| Sound Rating | 78dB |
| Weight | 110lbs |
| Warranty | 2 Years |
